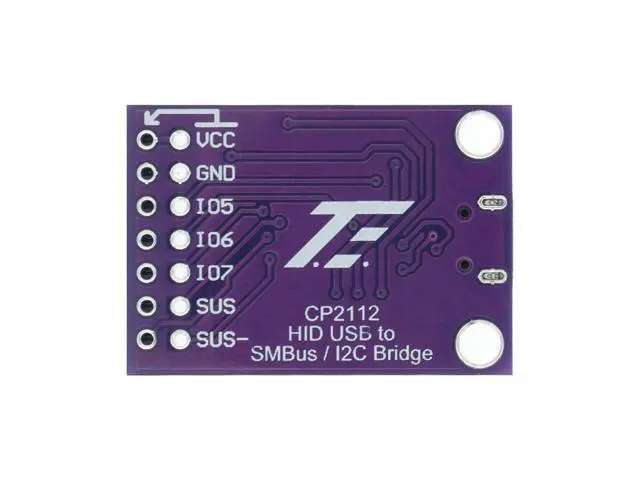

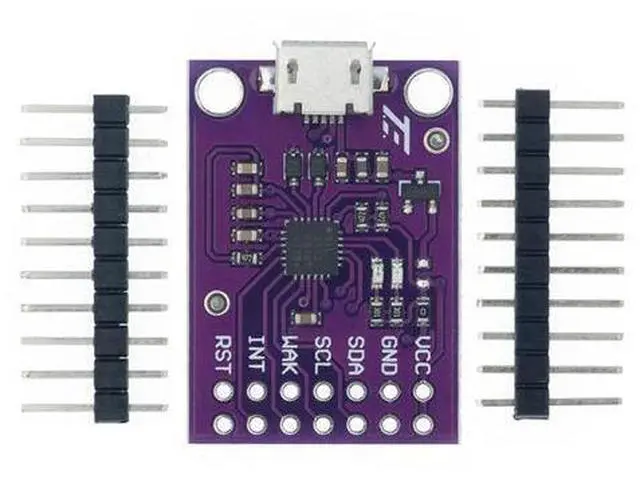

CP2112 Debug Board USB to SMBus I2C Communication Module 2.0 MicroUSB 2112 Evaluation Kit for CCS811 Sensor Module

Origin: CN (Origin)
Condition:
Type: Voltage Regulator
Model Number: CP2112 Debug Board
Operating Temperature: 1
Supply Voltage: 1
Dissipation Power: 1 The CP2112's highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins. All customization and configuration options can be selected through a simple GUI-based configurator. Standard HID class devices do not require the development of complex firmware and drivers. The CP2112 device enables fast USB connectivity with minimal development effort.
Parameters: USB
bus power supply: 4.0 to 5.25V
Self-powered: 3.0 to 3.6V
I/O voltage: 1.8V to
VDD Working environment temperature: -40 ° C ~ 85 ° C On-chip power-on reset circuit, on-chip
voltage regulator: 3.45 V output Compliant with USB specification 2.0 standard; full speed (12Mbps) USB suspend status via SUSPEND and /SUSPEND pins Integrated 194-byte one-time programmable ROM for storing customizable product information 512-byte SMBus data buffer, configurable clock speed device address 7-bit value is the slave address of CP2112 Windows, Mac, and Linux HID to SMBus libraries API for rapid application development, open access interface specifications. 8 GPI
Os can be configured as input/output and open drain/push-pull, configurable clock output for external devices 48MHz to 94kHz, switching LEDs during read/write
SMBus Module size: 29.5 mm* 21.3 mm, with two M3 mounting holes, one MicroUSB female port Ap
