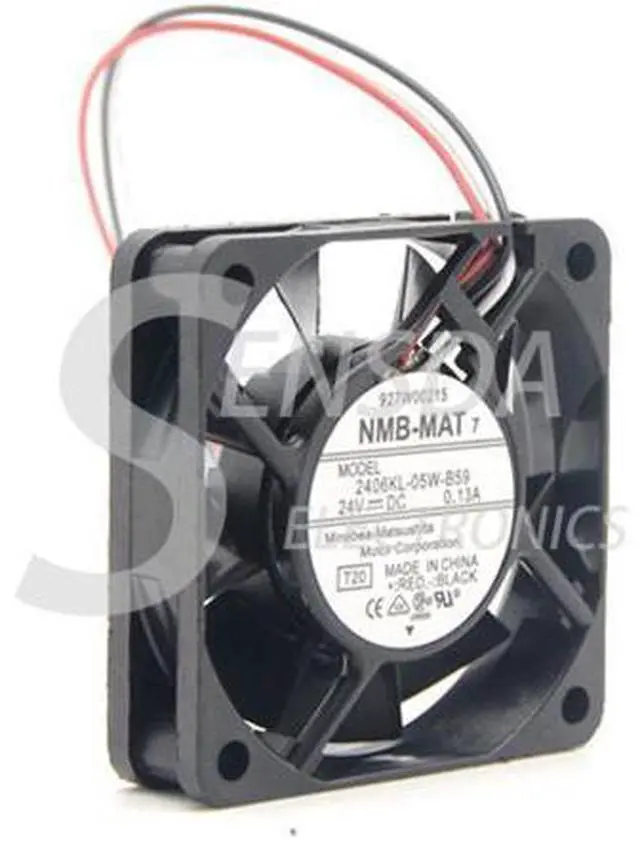

For NMB 2406KL-05W-B59 dc 24V 0.13A 6cm 6015 60*60*15 MM 3 wires converter cooling fan
Limited time offer, ends 07/25 By NovaStar Tech
- For NMB 2406KL-05W-B59 dc 24V 0.13A 6cm 6015 60*60*15 MM 3 wires converter cooling fan
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Certification: CE
Origin: CN (Origin)
Application: Computer
Case Bearing: Two
Ball Bearing Lines: 3
Lines Type: Fan
Power Interface: 3pin
Model Number: 2406KL-05W-B59
[Dimension]: 60x60x15mm
[Rated]: DC24V
[Range]: DC
12.0 - 26.5V [Power]: 0.13A
(nominal current) [Speed]: 4600 r. p.
m [Temperature range]: -10...
70 °C [Life expectancy]: 25 ° c L10 life expectancy of 50, 000
hours [Bearing]: maintenance-double ball bearing [Direction of rotation]: air discharged from the bracket, facing
the rotor counterclockwise [Connection]: +
Red-Black: yellow
(white) 3-wire terminals [Protection]: overload protection, fault-protected and locked-rotor locks flow protection [Maximum air volume]: 18.3
CFM [Minimum air pressure]: 0.
51.2 Pa [Noise indicators]: 34.0
dB (a) [Material material]: glass-fibre reinforced plastic, PBT housings, PA blade, environmental
certification Power: 3.12
W Speed: 4600RPM
Airflow: 18.3CFM 0.52 cubic meters / minute
Pressure: 51.2 pa
Noise: 34DBA
Temperature: -20 ~ 75
Life: 50, 000 hours
NW: 45G
Origin: CN (Origin)
Application: Computer
Case Bearing: Two
Ball Bearing Lines: 3
Lines Type: Fan
Power Interface: 3pin
Model Number: 2406KL-05W-B59
[Dimension]: 60x60x15mm
[Rated]: DC24V
[Range]: DC
12.0 - 26.5V [Power]: 0.13A
(nominal current) [Speed]: 4600 r. p.
m [Temperature range]: -10...
70 °C [Life expectancy]: 25 ° c L10 life expectancy of 50, 000
hours [Bearing]: maintenance-double ball bearing [Direction of rotation]: air discharged from the bracket, facing
the rotor counterclockwise [Connection]: +
Red-Black: yellow
(white) 3-wire terminals [Protection]: overload protection, fault-protected and locked-rotor locks flow protection [Maximum air volume]: 18.3
CFM [Minimum air pressure]: 0.
51.2 Pa [Noise indicators]: 34.0
dB (a) [Material material]: glass-fibre reinforced plastic, PBT housings, PA blade, environmental
certification Power: 3.12
W Speed: 4600RPM
Airflow: 18.3CFM 0.52 cubic meters / minute
Pressure: 51.2 pa
Noise: 34DBA
Temperature: -20 ~ 75
Life: 50, 000 hours
NW: 45G
