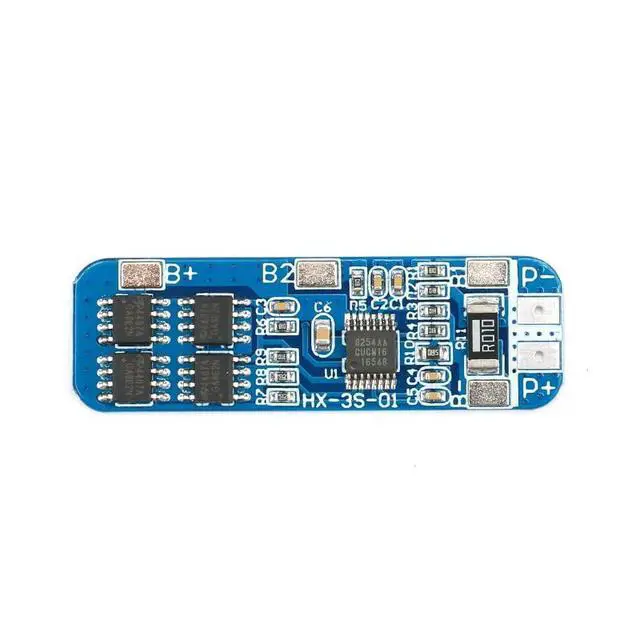

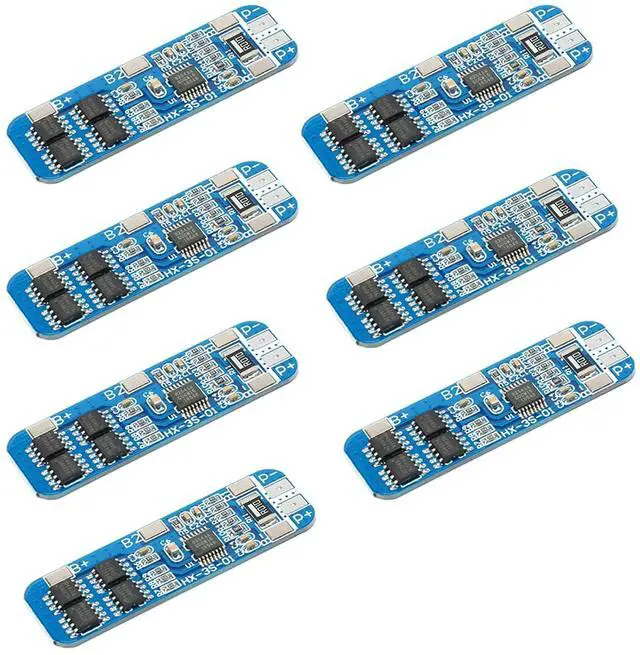

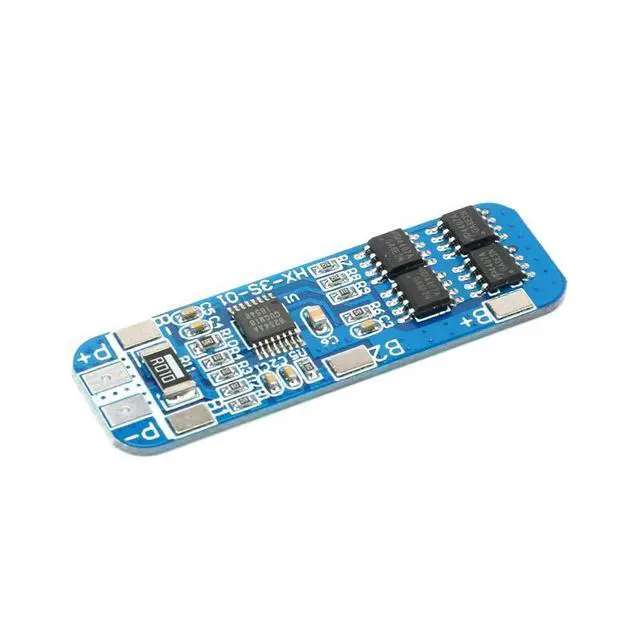

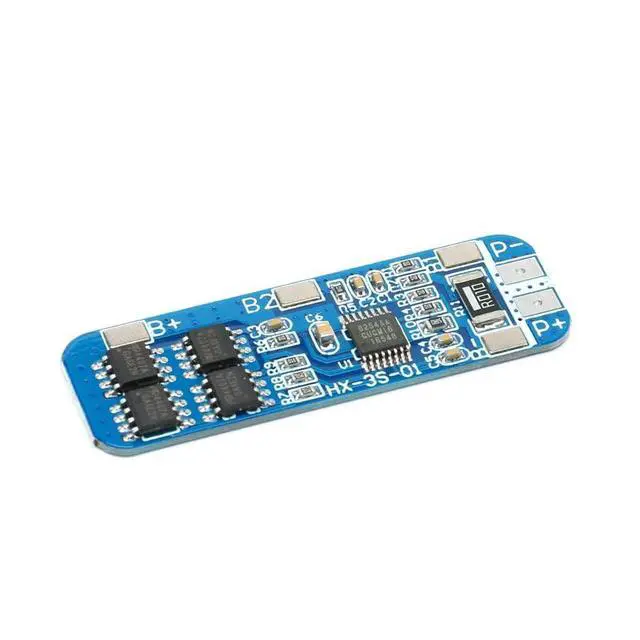

000 7Pcs 3S 12V 10A Lithium Battery Protection Board 11.1V 12.6V 10A Lithium Battery Protection Board BMS Li-ion Charger Protection Module
- Charging Voltage: 12.6-13V; Maximum Working Current: 6-8A; High quality: high-accuracy voltage detection circuit, fine workmanship and durable, effective life greater than 30000 hours; Multiple protection: Overdischarge protection, Overcharge protection, Overcurrent, Short circuit protection; P+ Charge positive, load positive; P- Charge negative, load negative; Use for variety of capacities and various shapes Massager battery pack, LED lamp backup power supply, solar street lamp battery pack, monitoring backup power supply, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Technical parameters:
Model: HX-3S-01
Size: 50mm * 15.5 mm * 3.7 mm
Charging voltage: 12.6V -13V
Overcharge voltage range: 4.25V - 4.35V ± 0.05V
Overdischarge voltage range: 2.3V - 3.0V ± 0.05V
Upper limit working current: 6-8A
Upper instantaneous current: 9-10A
Quiescent current: 30A
Effective life: 30000 hours
Internal resistance: 100m
Working temperature: - 40 -- +50
Storage conditions: - 40 -- +80
Discharge duration current limit: 6A ± 1A
Discharge protection current limit: 10A ± 1A
Charge duration limit: 5A ± 1A
Charge protection current limit: 12A ± 1A (single section) overcharge voltage: 4.25V ± 0.025V (single section) overcharge release voltage: 4.15V ± 0.08V (single section) overdischarge voltage: 2.7V ± 0.08V (single section) overdischarge release voltage: 3.0V ± 0.1V
Short circuit protection: It can be protected and needs to be charged for recovery
Main functions: overcharge protection, over-discharge protection, short circuit protection, over-current protection
Note: Lithium battery protection plate cannot be used for lithium iron phosphate battery, hernia lamp, electric hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children's car battery, motor or products with motor, 1W fish-eye LED lamp
Model: HX-3S-01
Size: 50mm * 15.5 mm * 3.7 mm
Charging voltage: 12.6V -13V
Overcharge voltage range: 4.25V - 4.35V ± 0.05V
Overdischarge voltage range: 2.3V - 3.0V ± 0.05V
Upper limit working current: 6-8A
Upper instantaneous current: 9-10A
Quiescent current: 30A
Effective life: 30000 hours
Internal resistance: 100m
Working temperature: - 40 -- +50
Storage conditions: - 40 -- +80
Discharge duration current limit: 6A ± 1A
Discharge protection current limit: 10A ± 1A
Charge duration limit: 5A ± 1A
Charge protection current limit: 12A ± 1A (single section) overcharge voltage: 4.25V ± 0.025V (single section) overcharge release voltage: 4.15V ± 0.08V (single section) overdischarge voltage: 2.7V ± 0.08V (single section) overdischarge release voltage: 3.0V ± 0.1V
Short circuit protection: It can be protected and needs to be charged for recovery
Main functions: overcharge protection, over-discharge protection, short circuit protection, over-current protection
Note: Lithium battery protection plate cannot be used for lithium iron phosphate battery, hernia lamp, electric hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children's car battery, motor or products with motor, 1W fish-eye LED lamp
