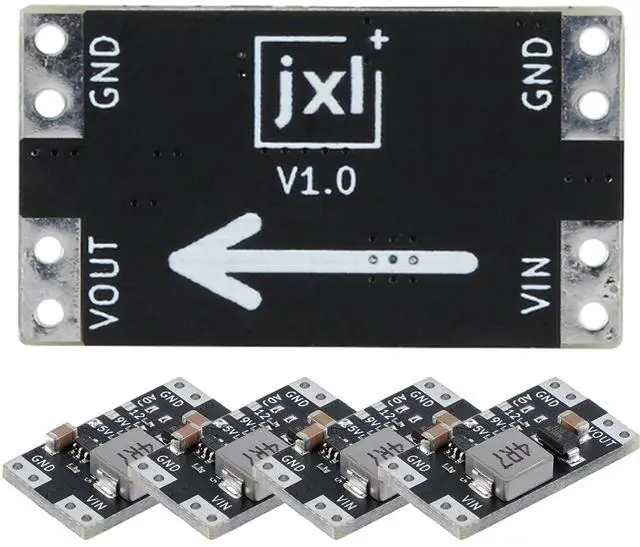

5pcs XL3608 5V 2A DC-DC Boost Module Compact Power Supply with 2.5V-11.5V Input
- Compact & High-Efficiency This mini DC-DC boost converter module is designed for ultimate performance, featuring intelligent dual-mode switching (PWM/PFM) that ensures up to 93% efficiency under heavy loads while reducing quiescent current to as low as 200A in light-load scenarios. Suitable for space-constrained projects, it supports preset voltages of 5V, 9V, and 12V, with adjustable outputs ranging from 1.2V to 20V via an easy-to-use 0805 resistor. Suitable for powering your next gadget or project with precision and reliability.; Flexible Voltage Output With its versatile preset voltage options (5V, 9V, 12V) and customizable output range (1.2V-20V), this DC-DC converter module adapts ly to your specific needs. Whether you're building a , LED lighting system, or IoT device, this module provides stable power delivery tailored to your project's demands. The jumper selection makes voltage adjustments quick and hassle-free.; Industrial-Strength Performance Built to handle demanding applications, this power-dense module supports up to 2A input current and delivers up to 4A switching capability. Its compact 24.4x13.7mm size packs a punch, delivering peak power of 15W at 11V input. Designed for durability, it operates efficiently across a wide input range (2.5V-11.5V) and ensures smooth performance even under challenging conditions.; Safety First Safety is our priority! This module includes critical protection features such as differential voltage regulation (input must be
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description
Product features: Intelligent dual-mode high-efficiency conversion, PWM/PFM
automatic switching: PFM mode for light load (quiescent current only 200-600A), heavy load automatically cut PWM mode, comprehensive efficiency 82-93%. Flexible voltage output, Preset

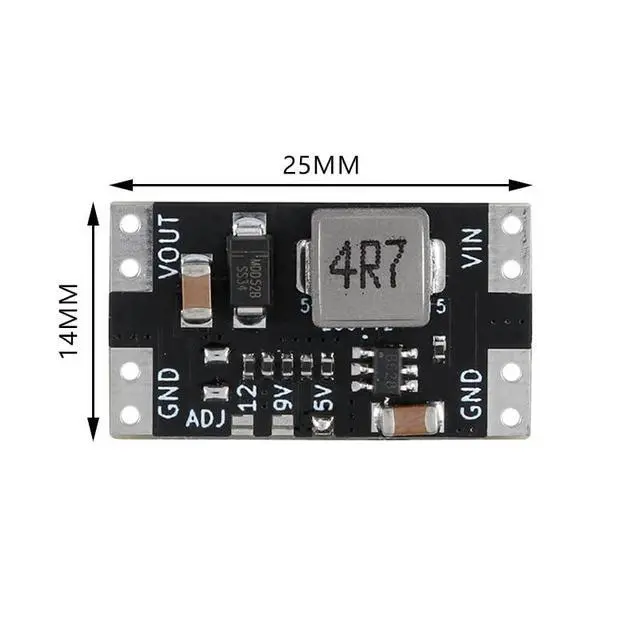

voltage: 5V (jumper selection) Support 1.2 -20V custom output (0805 resistor adjustment). power density, 2A maximum input current + 4A switching capability, 24.4 × 13.7 mm mini size achieves 15W peak power (at 11V input). Performance Measurement Data [
Test condition: 25 | Natural convection cooling ] 3V5V- 0.9AE fficiency 89% | Chip Temperature Rise T=28 5V9V- 0.84AE fficiency 91% | Chip Temperature Rise T=22 Extreme test: 11V12V- 1.38A (15W) for 10 minutes (forced air cooling required) CRITICAL NOTES.
Differential voltage law: Input must be 0.5V output voltage (If output 5V, input 4.5V ), otherwise output voltage is out of control!
Heat dissipation mandatory requirements: Input 7V or output 1A must be added heat sinks Ambient temperature > 40 need to be reduced use It is strictly prohibited to plug and unplug the load with electricity (first disconnect the input power supply) Measure the voltage with a short and thick wire (wire resistance affects the accuracy). Category Parameter
Current: 2A (max)
Requirement: Input VoltageOutput Voltage- 0.5V

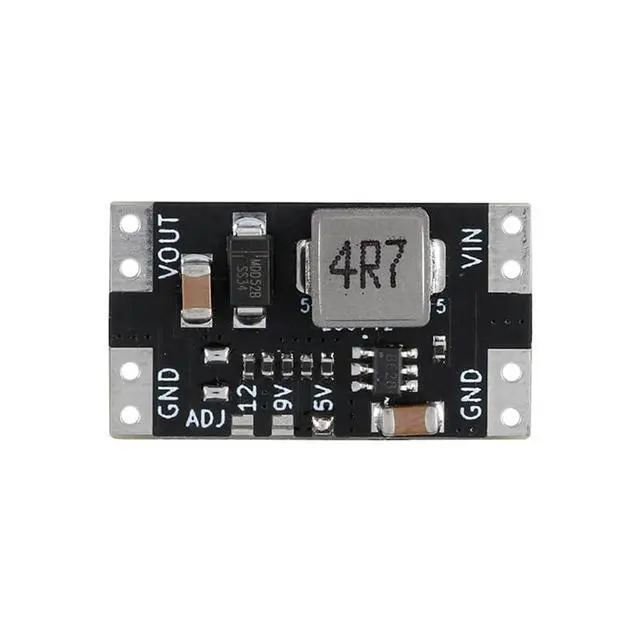

Output Capability Preset: 5V/9V/12V
Adjustable: 1.2 -20V
Maximum Power: Input Voltage× 1.5
Conversion Efficiency: 82
Product features: Intelligent dual-mode high-efficiency conversion, PWM/PFM
automatic switching: PFM mode for light load (quiescent current only 200-600A), heavy load automatically cut PWM mode, comprehensive efficiency 82-93%. Flexible voltage output, Preset
voltage: 5V (jumper selection) Support 1.2 -20V custom output (0805 resistor adjustment). power density, 2A maximum input current + 4A switching capability, 24.4 × 13.7 mm mini size achieves 15W peak power (at 11V input). Performance Measurement Data [
Test condition: 25 | Natural convection cooling ] 3V5V- 0.9AE fficiency 89% | Chip Temperature Rise T=28 5V9V- 0.84AE fficiency 91% | Chip Temperature Rise T=22 Extreme test: 11V12V- 1.38A (15W) for 10 minutes (forced air cooling required) CRITICAL NOTES.
Differential voltage law: Input must be 0.5V output voltage (If output 5V, input 4.5V ), otherwise output voltage is out of control!
Heat dissipation mandatory requirements: Input 7V or output 1A must be added heat sinks Ambient temperature > 40 need to be reduced use It is strictly prohibited to plug and unplug the load with electricity (first disconnect the input power supply) Measure the voltage with a short and thick wire (wire resistance affects the accuracy). Category Parameter
Details
Input Voltage: 2.5 - 11.5VCurrent: 2A (max)
Requirement: Input VoltageOutput Voltage- 0.5V
Output Capability Preset: 5V/9V/12V
Adjustable: 1.2 -20V
Maximum Power: Input Voltage× 1.5
Conversion Efficiency: 82
