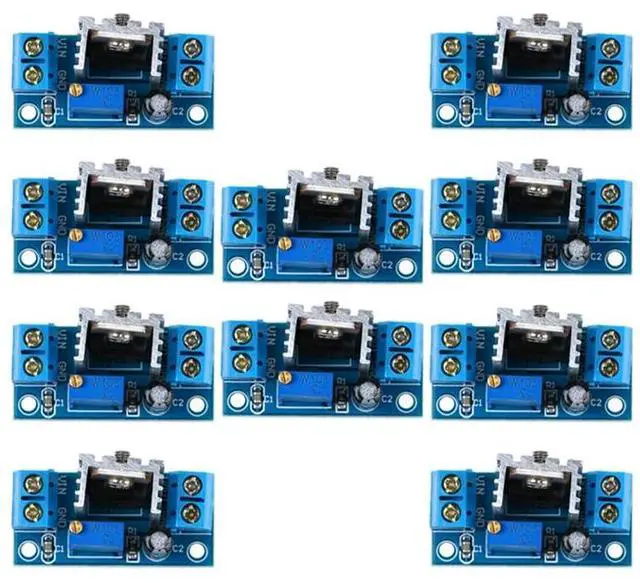

10Pcs LM317 Adjustable Power Supply Board DC-DC Buck Linear Regulator
- LM317 Linear Regulator Board: This LM317 adjustable regulated power supply board is designed for DC voltage regulation and small electronics projects. It can be used as a simple adjustable bench power module for DIY circuits, sensor testing, microcontroller experiments, and repair work.; Wide 4.2V to 40V Input Range: The module supports a DC input voltage range of 4.2V to 40V and provides an adjustable output voltage from approximately 1.2V to 37V, making it suitable for generating common test voltages such as 3.3V, 5V, 9V, and 12V.; Adjustable Output with LM317 Regulator: Based on the classic LM317 adjustable linear regulator, the output voltage can be set according to project requirements. It is convenient for powering different modules, testing circuits, and building simple regulated power supplies.; Linear Regulation with Low Ripple Output: As a linear regulator module, it offers simple operation and relatively low output ripple compared with many switching converters. Please note that this is a step-down regulator, so the output voltage must be lower than the input voltage with sufficient voltage difference for stable operation.; Compact PCB Power Module: With a small 35.6 × 16.8mm PCB size, this module is easy to install in electronic prototypes, lab fixtures, control boxes, and educational projects. For best results, adjust and verify the output voltage with a multimeter before connecting your load, and provide adequate heat dissipation for higher current use.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

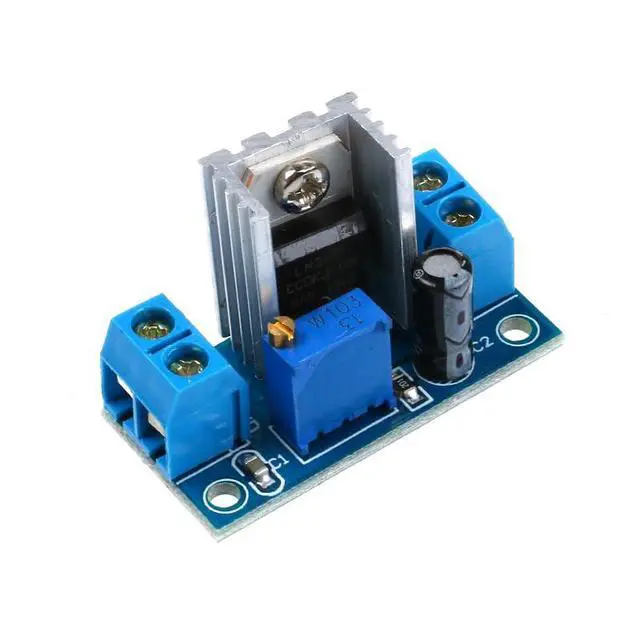

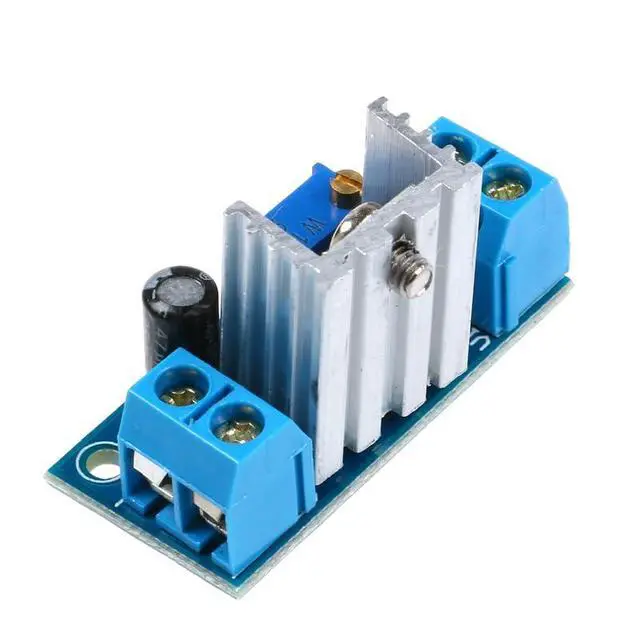

LM317 Adjustable Regulated Power Supply Board, DC-DC Converter, Adjustable Linear Voltage Regulator Module This LM317 adjustable regulated power supply board is a compact and practical linear voltage regulator module designed for DC voltage regulation, electronic experiments, DIY projects, battery-powered applications, and small device power supply adjustment. It allows users to adjust the output voltage by rotating the onboard potentiometer, making it suitable for a wide range of applications where a stable adjustable DC output is required.
Product
Input Voltage Range: 4.2V 40V DC
Adjustable Output Voltage Range: Approx. 1.2V 37V DC Max Input-Output
Voltage Difference: 30V DC
Output Current: Up to 1.5A, depending on input voltage, output voltage, load, and heat dissipation
Operating Temperature: 0°C to 125°C / up to -55°C to +150°C depending on operating conditions and device rating
Characteristic Frequency: 100MHz
Module Dimensions: Approx. 35.6 mm × 16.8 mm
Adjustment Method: Onboard potentiometer

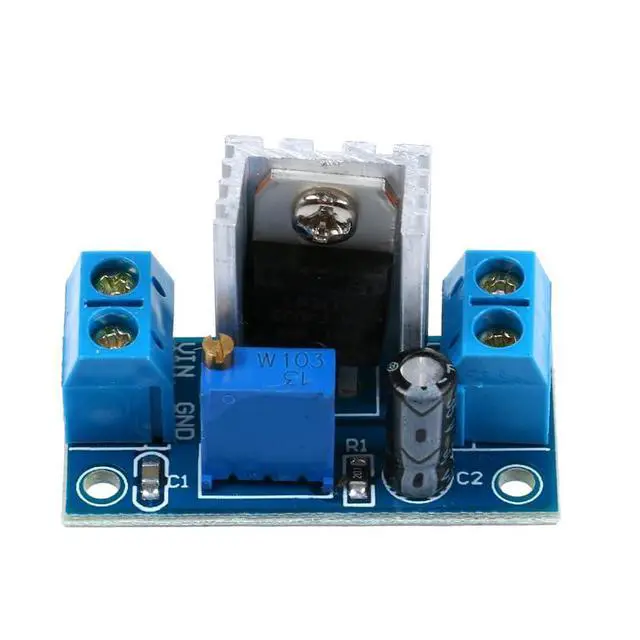

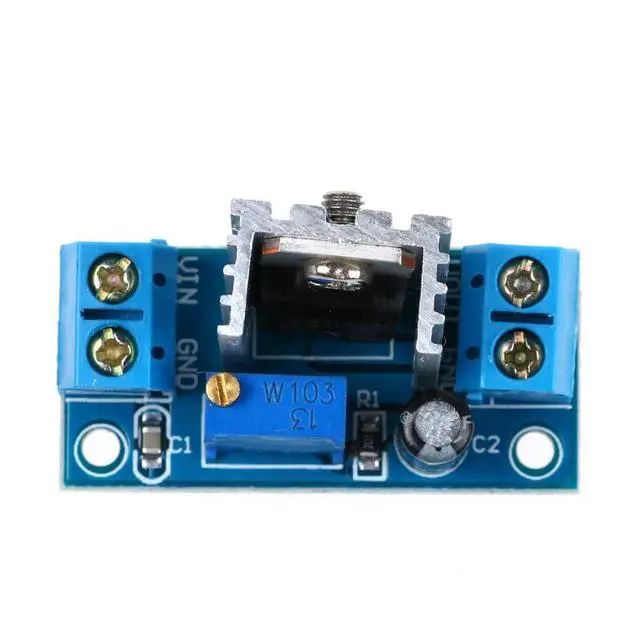

Pin Definitions VIN: Input positive terminal
GND: Input negative terminal
VOUT: Output positive terminal
GND: Output negative terminal Wide Application Suitable for electronics prototyping, circuit testing, battery-powered devices, vehicle auxiliary power supply, microcontroller projects, sensor modules, and adjustable power supply DIY kits.
Product
Specifications
Product Name: LM317 Adjustable Regulated Power Supply Board Regulator Type: Adjustable linear voltage regulatorInput Voltage Range: 4.2V 40V DC
Adjustable Output Voltage Range: Approx. 1.2V 37V DC Max Input-Output
Voltage Difference: 30V DC
Output Current: Up to 1.5A, depending on input voltage, output voltage, load, and heat dissipation
Operating Temperature: 0°C to 125°C / up to -55°C to +150°C depending on operating conditions and device rating
Characteristic Frequency: 100MHz
Module Dimensions: Approx. 35.6 mm × 16.8 mm
Adjustment Method: Onboard potentiometer
Pin Definitions VIN: Input positive terminal
GND: Input negative terminal
VOUT: Output positive terminal
GND: Output negative terminal Wide Application Suitable for electronics prototyping, circuit testing, battery-powered devices, vehicle auxiliary power supply, microcontroller projects, sensor modules, and adjustable power supply DIY kits.
