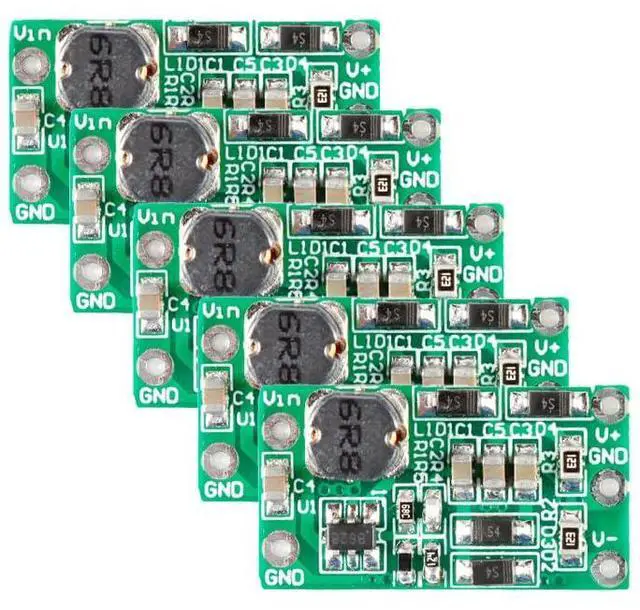

5Pcs DC-DC Boost Module, Single Supply to Positive Negative Dual ±9V Power
Limited time offer, ends 08/30 By NovaStar Tech
- Single Supply to Dual Voltage Module: This DC-DC boost module converts a single DC input into positive and negative dual voltage outputs, making it suitable for circuits that require symmetrical power rails. It is a practical power solution for analog circuits, operational amplifiers, sensor conditioning, signal processing, and mixed-signal electronics.; Multiple Output Voltage Options: Available output voltage options include ±5V, ±9V, ±12V, and ±15V. The input voltage must be lower than the selected output voltage. Input ranges vary by version: 3V4.5V for ±5V, 3V8V for ±9V, 3V11V for ±12V, and 3V14V for ±15V.; 100mA Output Current and High Efficiency: The module provides up to 100mA output current with conversion efficiency of 85%, offering stable power for low-power digital and analog loads. It is suitable for powering ASICs, DSPs, microprocessors, memory, FPGAs, and other sensitive circuit components.; Compact PCB-Mount Design: With a small size of approximately 22 × 12.5 × 5.5 mm, this power module is easy to integrate into printed circuit boards, breadboard prototypes, embedded systems, and compact electronic devices. Its low-profile design helps save space in tight layouts.; Ideal for Electronics Development: Designed for applications that need positive and negative power supplies from a single input source, this boost converter module is widely used in DIY electronics, laboratory testing, audio circuits, instrumentation, sensor modules, and PCB prototyping projec
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

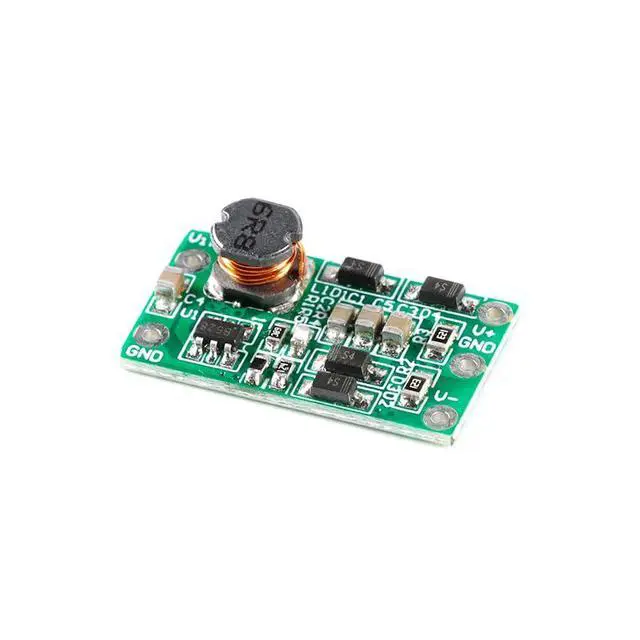

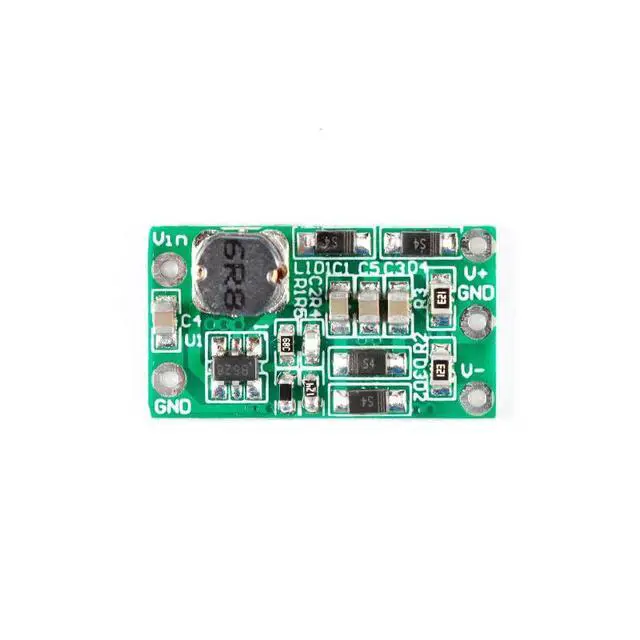

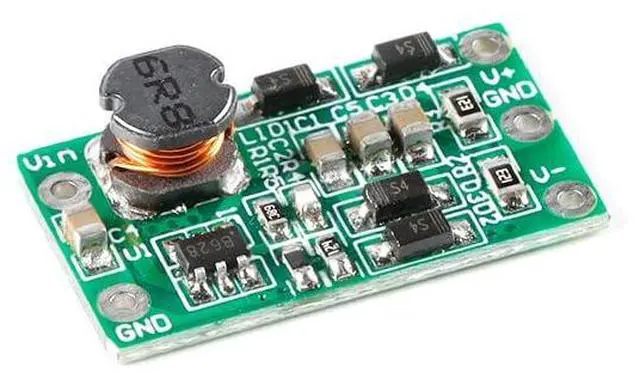

This DC-DC boost converter module is designed to convert a single DC input voltage into a positive and negative dual voltage output. It is a compact power supply module that can be mounted directly onto a printed circuit board and used to power analog circuits, operational amplifiers, sensors, audio circuits, signal conditioning modules, ADC/DAC front-end circuits, and other low-power electronic loads.
Product
Boost Converter Module Function: Single DC voltage input to positive/negative dual voltage output
Output Voltage Options: ±5V / ±9V / ±12V / ±15V
Input Voltage Range: 3V 4.5V /3V8V/3V11V/3V14V
Output Current: 100 mA
Conversion Efficiency: 85%
Module Type: Boost converter
Input Requirement: Input voltage must be lower than the output voltage

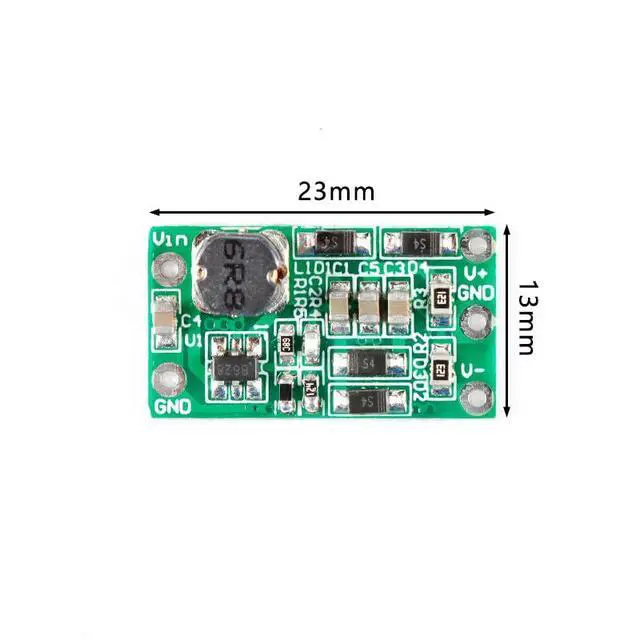

Dimensions: 22 mm x 12.5 mm x 5.5 mm / 0.87 x 0.49 x 0.22 in
Mounting Type: PCB mount / embedded power module
Recommended Loads: Analog circuits, op-amps, sensors, ADC/DAC circuits, audio circuits, signal processing circuits, microcontrollers, DSPs, FPG
As, and other low-power loads.
Product
Specifications
Product Type: DC-DCBoost Converter Module Function: Single DC voltage input to positive/negative dual voltage output
Output Voltage Options: ±5V / ±9V / ±12V / ±15V
Input Voltage Range: 3V 4.5V /3V8V/3V11V/3V14V
Output Current: 100 mA
Conversion Efficiency: 85%
Module Type: Boost converter
Input Requirement: Input voltage must be lower than the output voltage
Dimensions: 22 mm x 12.5 mm x 5.5 mm / 0.87 x 0.49 x 0.22 in
Mounting Type: PCB mount / embedded power module
Recommended Loads: Analog circuits, op-amps, sensors, ADC/DAC circuits, audio circuits, signal processing circuits, microcontrollers, DSPs, FPG
As, and other low-power loads.
