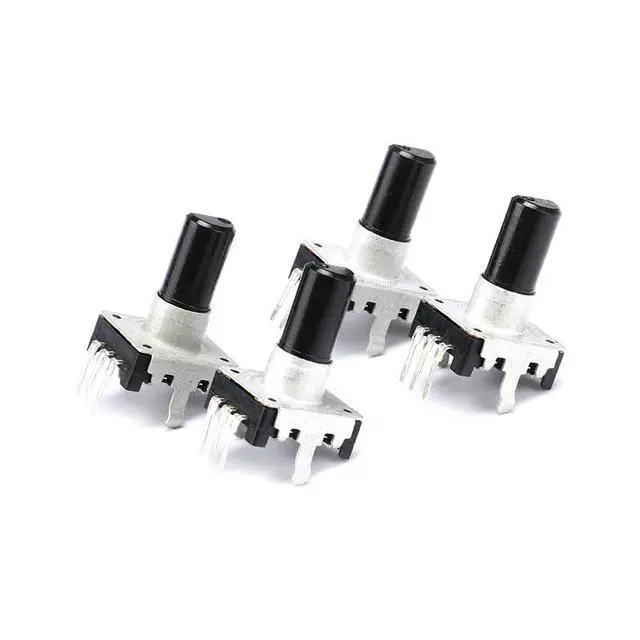

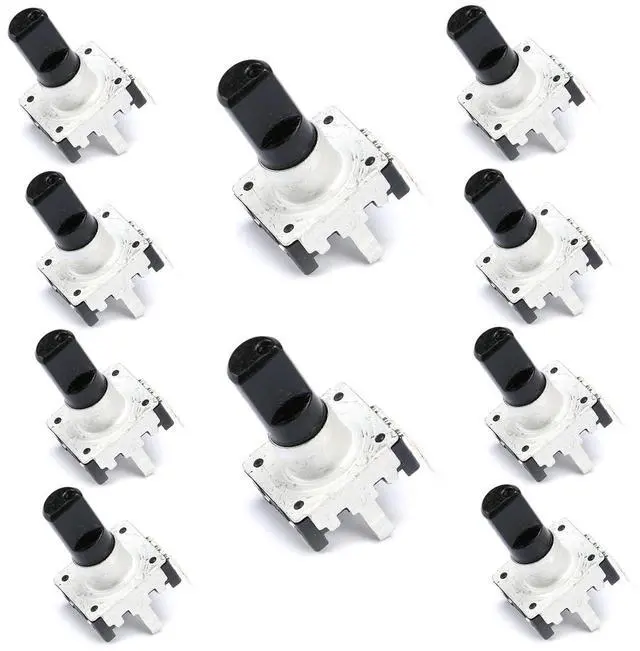

10Pcs EC12 360 Degree Rotary Encoder Code Switch Digital Potentiometer E12 Audio Encoder 360°Rotating Encoder 3Pins 15MM D-Shaft
- Type: EC12 Rotary Encoder with Switch; Adjustment method: 360 Degree; Number of pulses: 24; Shaft Diameter: 6mm/0.24"; Shaft Height: 15mm/0.59"; Total Dimension: 14mm x 13.2mm x 23.5mm / 0.55" x 0.52" x 0.93"(L*W*H); Rated Voltage: 5 Volt; Maximum operating current (resistive load)10mA Max; Applications: Rotary encoders are widely used in industrial controls, robotics, photographic lenses, computer input devices, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification Type: EC12 Rotary Encoder with
Switch Adjustment method: 360
Degrees Number of pulses: 24
Working Signal Pin Numbers: 3
Mounting Pin Number: 2
Shaft Type: D
Type Rated Voltage: 5 Volt Maximum operating current (resistive load) 10mA Max
Shaft Diameter: 6mm/ 0.24"
Shaft Height: 15mm/ 0.59"
Total Dimension: 14mm x 13.2 mm x 23.5 mm / 0.55" x 0.52" x 0.93" (L*W*H)
Contact resistance: 100m (Voltage test at DC 5V 1mA)
Insulation resistance: 100M
Min Bouncing: 10ms or less
Applications: Rotary encoders are widely used in industrial controls, robotics, photographic lenses, computer input devices, etc
Switch Adjustment method: 360
Degrees Number of pulses: 24
Working Signal Pin Numbers: 3
Mounting Pin Number: 2
Shaft Type: D
Type Rated Voltage: 5 Volt Maximum operating current (resistive load) 10mA Max
Shaft Diameter: 6mm/ 0.24"
Shaft Height: 15mm/ 0.59"
Total Dimension: 14mm x 13.2 mm x 23.5 mm / 0.55" x 0.52" x 0.93" (L*W*H)
Contact resistance: 100m (Voltage test at DC 5V 1mA)
Insulation resistance: 100M
Min Bouncing: 10ms or less
Applications: Rotary encoders are widely used in industrial controls, robotics, photographic lenses, computer input devices, etc
