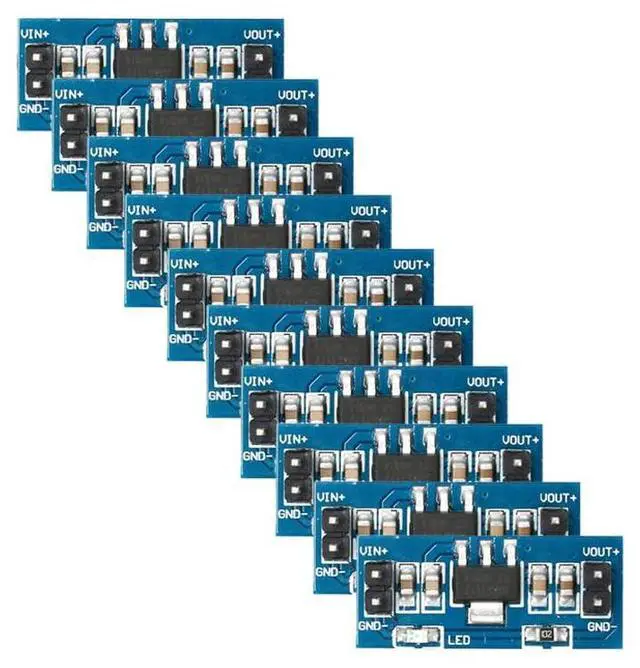

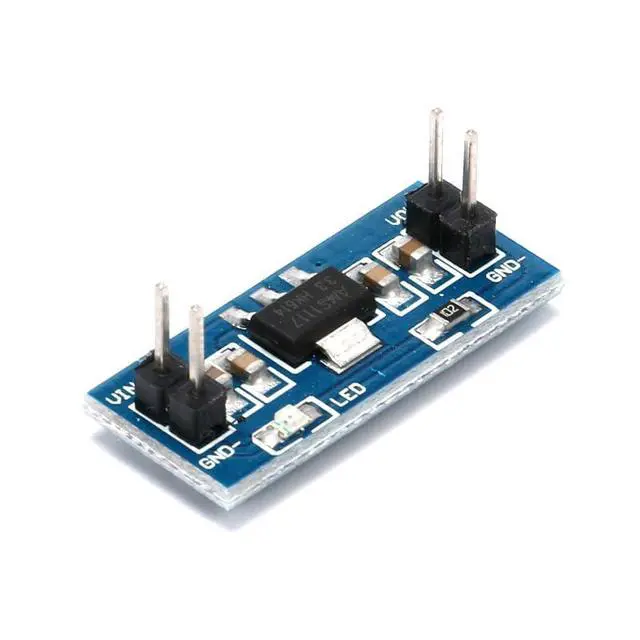

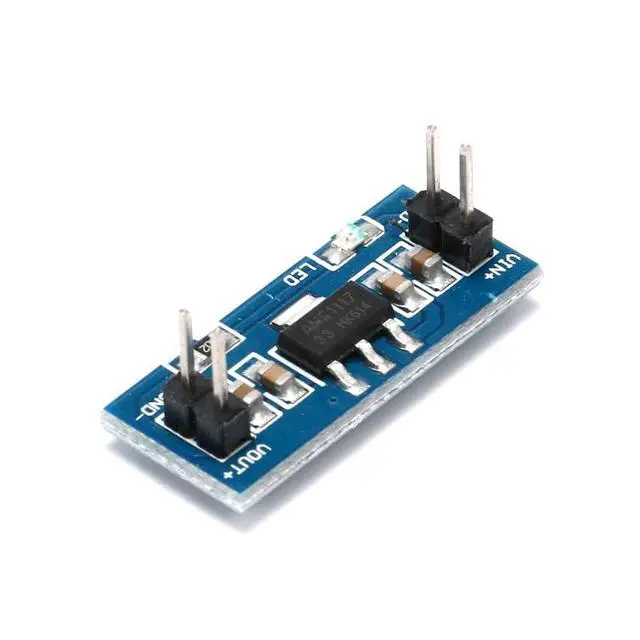

10Pcs AMS1117-3.3V Power Module 3.3V Voltage Regulator
- AMS1117-3.3V Step-Down Power Module: This compact AMS1117 power module is designed to provide a stable regulated output for electronics projects. The module is suitable for powering microcontrollers, sensors, wireless modules, logic circuits, and DIY prototypes.; Stable Linear Voltage Regulation: Built with the AMS1117 voltage regulator chip, the module offers simple and reliable DC step-down regulation. It is ideal for low-power applications that require a clean and steady output voltage.; Wide Input Compatibility: The input voltage should be approximately Vout + 1.45V up to 12V. For the 3.3V output version, a suitable input source such as 5V, 6V, 9V, or 12V can be used, while allowing enough voltage difference for stable regulation.; Easy 2-Pin Header Connection: Both input and output use 2-pin single-row header pins, making the module easy to connect with breadboards, perfboards, jumper wires, and experimental circuits. The two mounting holes are specially designed for convenient installation on perforated boards.; Compact PCB with Red Power Indicator: The module features a double-sided PCB layout, a red power indicator LED, and a small 2.5 × 1.1cm board size for space-saving installation. The maximum output current is up to 800mA; proper heat dissipation is recommended when using higher input voltage or heavier loads.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
3.3V Power Module AMS1117- 3.3V DC-DC Step-Down Voltage Regulator Module
Product
Power Module Regulator Chip: AMS1117
Module Type: DC-DC step-down linear voltage regulator module
Input Voltage: Output voltage + 1.45V to 12V DC
Output Voltage Options: 1.2V / 1.5V / 1.8V / 2.5V / 3.3V / 5.0V For AMS1117- 3.3V
Version: Fixed 3.3V output
Maximum Output Current: 800mA
Connector Type: 2-pin single-row header pins for input and output
Power Indicator: Red LED indicator
PCB Dimensions: Approx. 2.5 cm × 1.1 cm
Weight: Approx.
1.6 g PCB Design: Double-sided board

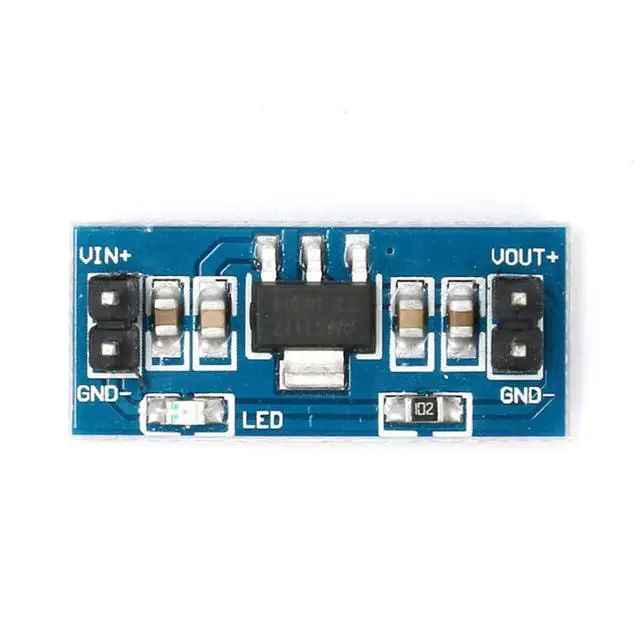

Pin Definitions VIN+: Input positive terminal
GND: Input negative terminal / common ground
VOUT+: Output positive terminal
GND: Output negative terminal / common ground This AMS1117- 3.3V power module is a compact DC-DC step-down voltage regulator board designed to provide a stable low-voltage output for electronic circuits, microcontroller projects, sensor modules, DIY experiments, and development boards.
Product
Specifications
Product Name: AMS1117- 3.3VPower Module Regulator Chip: AMS1117
Module Type: DC-DC step-down linear voltage regulator module
Input Voltage: Output voltage + 1.45V to 12V DC
Output Voltage Options: 1.2V / 1.5V / 1.8V / 2.5V / 3.3V / 5.0V For AMS1117- 3.3V
Version: Fixed 3.3V output
Maximum Output Current: 800mA
Connector Type: 2-pin single-row header pins for input and output
Power Indicator: Red LED indicator
PCB Dimensions: Approx. 2.5 cm × 1.1 cm
Weight: Approx.
1.6 g PCB Design: Double-sided board
Pin Definitions VIN+: Input positive terminal
GND: Input negative terminal / common ground
VOUT+: Output positive terminal
GND: Output negative terminal / common ground This AMS1117- 3.3V power module is a compact DC-DC step-down voltage regulator board designed to provide a stable low-voltage output for electronic circuits, microcontroller projects, sensor modules, DIY experiments, and development boards.
