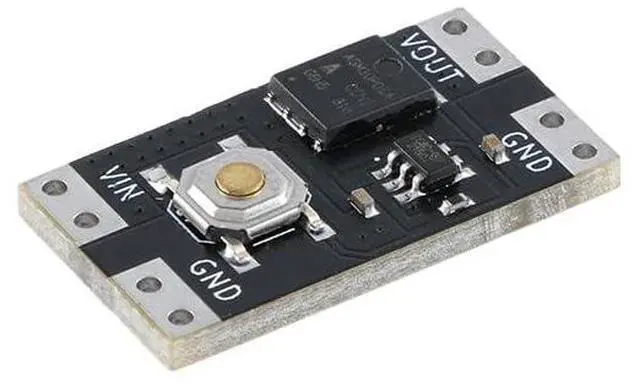

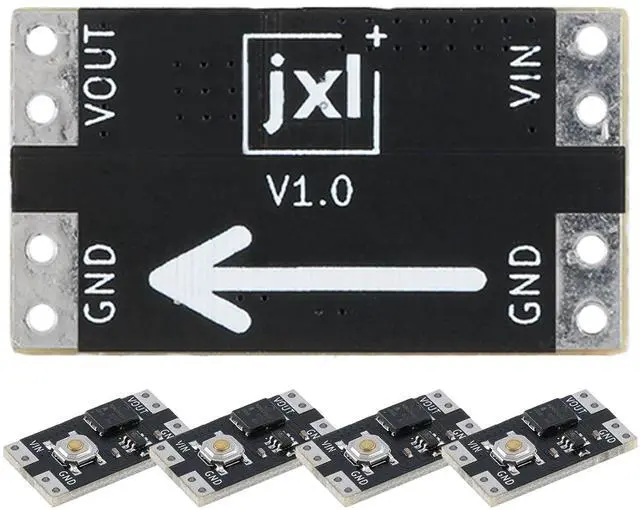

5pcs XL-10AL Single-Key Switch Module, 10A Load, 300nA Low Power, One-Touch Bistable Switch
Limited time offer, ends 08/30 By NovaStar Tech
- Smart Energy Efficiency Control your devices with precision using our XL-10AL switch module. With an ultra-low shutdown quiescent current of just 300nA at 5V, it ensures minimal energy consumption, making it Suitable for battery-powered IoT devices. Whether you're managing smart home systems or industrial equipment, this low-power solution keeps your devices running smoothly without draining batteries.; Switching Performance The XL-10AL boasts 10A current load capacity with only a 120-130mV voltage drop at 5V, reducing conductive losses by up to 75%. This means no more worrying about overheating or performance issuesjust reliable switching every time. Suitable for applications requiring high durability and efficiency!; Intuitive Bistable Logic Simplify your setup with our intelligent bistable logic design. Press once to turn on, press again to turn offno complicated wiring needed. Compatible with all types of touch switches, including panel, chip, and waterproof options, this module allows for integration into existing setups. Transform traditional devices like lights or power tools into modern touch-controlled systems in just five s nds.; Long-Term Reliability Designed for longevity, the XL-10AL offers exceptional reliability with a click life . Its robust construction prevents arc oxidation, ensuring smooth operation use. Whether youre building consumer electronics or industrial machinery, the XL-10AL to deliver consistent performance without fail.; Versatile &
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description
Product Features: Intelligent
delay switch: long press for 3 s nds to switch on/off, avoiding accidental touching
Dual version coverage:
XL-10AL3S: 3.5 - 5.4V low voltage system (300nA static power consumption)
XL-10AH3S: 4.5 -26V wide voltage system (static power consumption 1.5A ) 10A strong load capacity: support motor/high power equipment switching control
Ultra-low voltage drop: only 120-130mV@10A (efficiency>97%) nA-rated hibernation power consumption: battery devices standby for years without power consumption 26V voltage design: compatible with 12V/24V /industrial system.
Fully compatible with keypad: support any external flick switch (lead wire required)
Non-sparking on/off: MOS tube switch replaces mechanical relay.
Operating Voltage: XL-10AL3S-- 3.5 - 5.4V -----------------XL-10AH3S-- 4.5 -26V Static
Power Consumption: XL-10AL3S--300nA (5V) -------------XL-10AH3S-- 1.5A (12V) 10A
Voltage Drop: XL-10AL3S--130mV (5V) -------------XL-10AH3S-- 120mV (12V)
IN: Power input positive
OUT: Power output positive
KEY: Flick switch signal terminal
GND: Input/output common ground
Q1: Can I use metal buttons instead of flick switches?
Q2: Is it normal for the module to generate heat?
Q3: How to connect a long wire keypad?
Q4: Is there any residual voltage on the OUT side after power off? Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Sol
Product Features: Intelligent
delay switch: long press for 3 s nds to switch on/off, avoiding accidental touching
Dual version coverage:
XL-10AL3S: 3.5 - 5.4V low voltage system (300nA static power consumption)
XL-10AH3S: 4.5 -26V wide voltage system (static power consumption 1.5A ) 10A strong load capacity: support motor/high power equipment switching control
Ultra-low voltage drop: only 120-130mV@10A (efficiency>97%) nA-rated hibernation power consumption: battery devices standby for years without power consumption 26V voltage design: compatible with 12V/24V /industrial system.
Fully compatible with keypad: support any external flick switch (lead wire required)
Non-sparking on/off: MOS tube switch replaces mechanical relay.
Operating Voltage: XL-10AL3S-- 3.5 - 5.4V -----------------XL-10AH3S-- 4.5 -26V Static
Power Consumption: XL-10AL3S--300nA (5V) -------------XL-10AH3S-- 1.5A (12V) 10A
Voltage Drop: XL-10AL3S--130mV (5V) -------------XL-10AH3S-- 120mV (12V)
IN: Power input positive
OUT: Power output positive
KEY: Flick switch signal terminal
GND: Input/output common ground
Q1: Can I use metal buttons instead of flick switches?
Q2: Is it normal for the module to generate heat?
Q3: How to connect a long wire keypad?
Q4: Is there any residual voltage on the OUT side after power off? Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Sol
