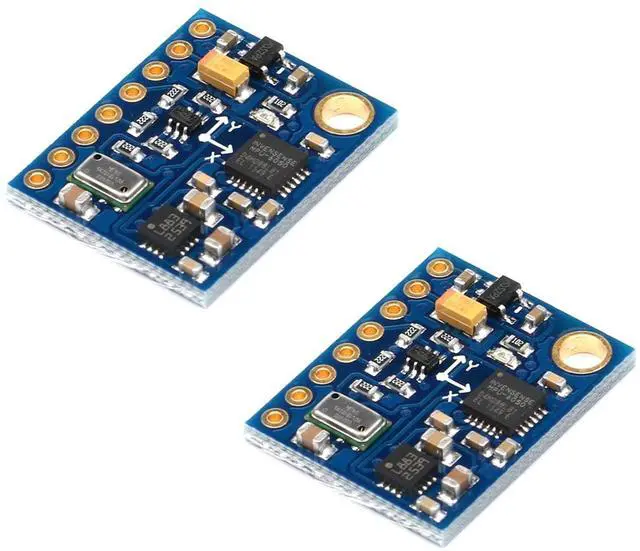

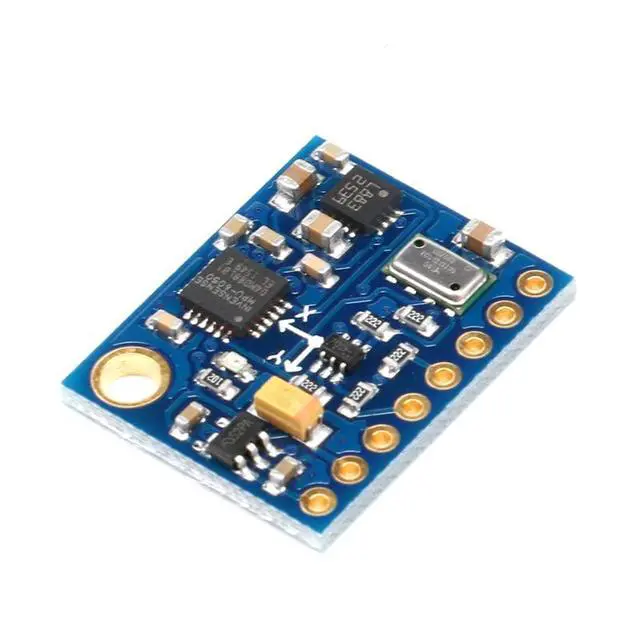

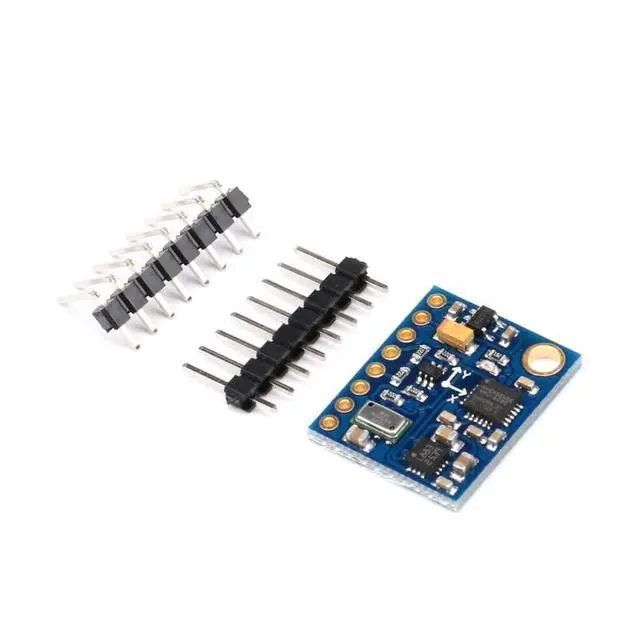

2Pcs GY-86 10DOF MS5611 HMC5883L MPU6050 Module MWC Flight Control Sensor Module Acceleration Magnetic Field Pressure Sensor Module
- The GY-86 features three 16 bit analog to digital converters (ADCs) for digitizing the gyroscope outputs and three 16 bit ADCs for digitizing the accelerometer outputs. For precision tracking of both fast and slow motions, the parts feature a user programmable gyroscope full scale range of ±250, ±500, ±1000, and ±2000°/sec (dps) and a user programmable accelerometer full scale range of ±2g, ±4g, ±8g, and ±16g.; DESCRIPTION The MS561101BA is a high resolution altimeter sensors with SPI and I2C bus interface. It is optimized for altimeters and variometers with an altitude resolution of 10 cm. The sensor module includes a high linearity pressure sensor and an ultra low power 24 bit ADC with internal factory calibrated coefficients.; HMC5883L is a surface-mount, multi-chip module designed for low-field magnetic sensing with a digital interface for applications such as low cost compassing and magnetometry. The HMC5883L includes our state-of-the art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation,and a 12-bit ADC that enables 1° to 2° compass heading accuracy.The I2C serial bus allows for easy interface.; Absolute Maximum Ratings Stress above those listed as Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these conditions is not implied. Exposure to the absolute maximum ratings c...
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. The MPU6000 features three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs and three 16-bit ADCs for digitizing the accelerometer outputs. For precision tracking of both fast and slow motions, the parts feature a user-programmable gyroscope full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps) and a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g. 10DOF module (3-axis gyro + 3-axis acceleration + 3-axis magnetic field + air pressure) Adopts immersion gold PCB process

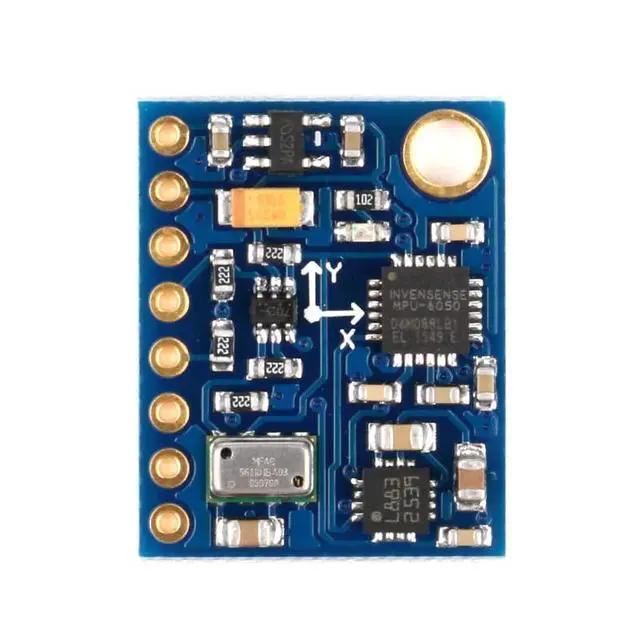

Chip used: MPU6050+HMC5883L+MS5611
Power supply: 3-5v

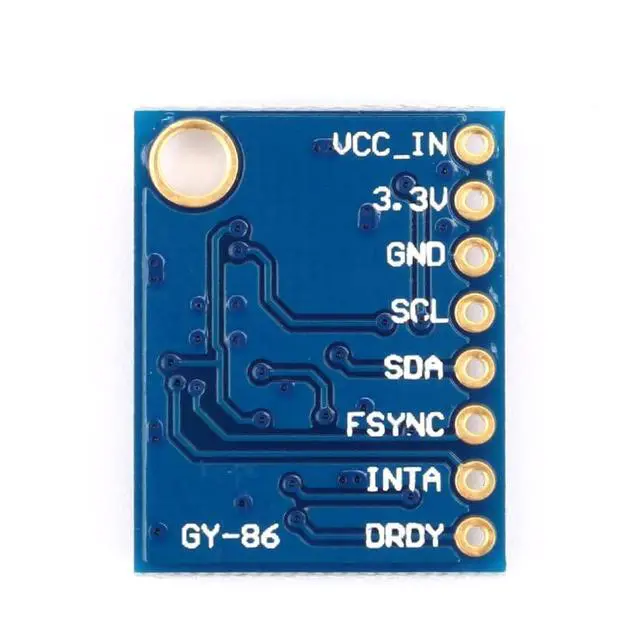

Communication mode: IIC communication protocol (fully compatible with 3-5v system, including LLC circuit)
Size: 2.2 cm* 1.7 cm The MS561101BA is a high resolution altimeter sensors with SPI and...
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. The MPU6000 features three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs and three 16-bit ADCs for digitizing the accelerometer outputs. For precision tracking of both fast and slow motions, the parts feature a user-programmable gyroscope full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps) and a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g. 10DOF module (3-axis gyro + 3-axis acceleration + 3-axis magnetic field + air pressure) Adopts immersion gold PCB process
Chip used: MPU6050+HMC5883L+MS5611
Power supply: 3-5v
Communication mode: IIC communication protocol (fully compatible with 3-5v system, including LLC circuit)
Size: 2.2 cm* 1.7 cm The MS561101BA is a high resolution altimeter sensors with SPI and...
