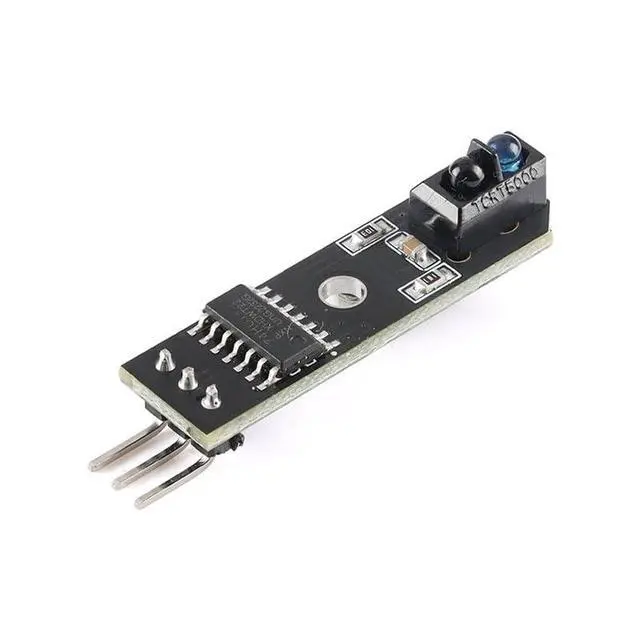

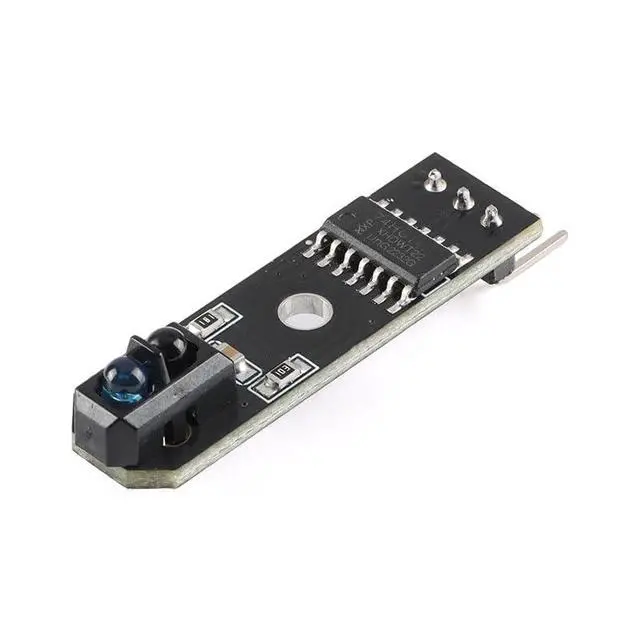

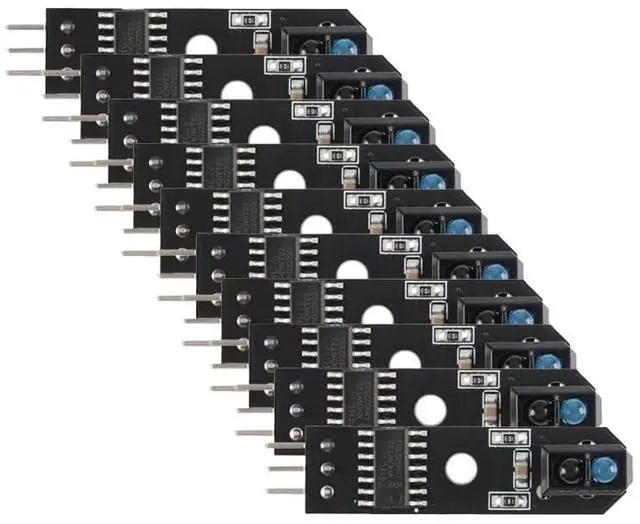

10Pcs TCRT5000 IR Line Tracking Sensor Module 3.3V-5V for Smart Car
- TCRT5000 Reflective Sensor Module: This black infrared line-following module uses the TCRT5000 reflective optical sensor, which integrates an infrared emitting diode and an NPN infrared phototransistor. It detects reflected infrared light for line tracking, short-distance object detection, robot obstacle avoidance, and automation sensing projects.; Ideal for Line-Following Robots: Designed for robot line tracking, this module can detect black lines on a white background as well as white lines on a black background. It is a practical sensor module for smart cars, educational robotics, route recognition, and DIY robot projects.; 125 mm Detection Range: The module is suitable for reflected distance detection from approximately 1 mm to 25 mm. It can be used not only for line-following applications, but also for paper detection, assembly line counting, pulse data sampling for electricity meters, and other close-range sensing tasks.; Digital Switching Output for Easy Use: With a digital switching output of 0 and 1, the module can be easily connected to Arduino, STM32, ESP32, Raspberry Pi expansion boards, and other microcontroller platforms. The digital output helps simplify wiring, programming, and system integration.; Stable Signal with 74HC14 Schmitt Trigger: Built with a 74HC14 Schmitt trigger inverter, the module provides a cleaner signal waveform and strong drive capability. The dedicated M3 mounting holes make it easy to secure the sensor and adjust its direction for dif...
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
This module is designed for detecting reflective distances from 1mm to 25mm and is widely used in smart car line-following robots, black and white line detection, obstacle avoidance experiments, object counting, pulse sampling, and paper detection applications. It can detect black lines on a white background as well as white lines on a black background, making it a practical sensor for robot tracking and automation projects.
Product
Sensor Structure: Infrared LED + NPN infrared phototransistor
Operating Voltage: 3.3V 5V
DC Detection Range: 1mm25mm
Output Type: Digital switch output
Output Signal: TTL logic signal, 0 and 1
Signal Processing IC: 74HC14 Schmitt trigger inverter
PCB Color: Black
Mini-PCB Dimensions: 3.5 cm × 1 cm
Mounting Hole: M3 mounting hole
Typical Applications: Line-following robot, smart car tracking, black/white line detection, obstacle avoidance, object counting, pulse sampling, paper detection Pin
Description VCC: Power supply positive, connect to 3.3V or 5V
DC GND: Ground
OUT: Digital TTL signal output
Product
Specifications
Sensor Type: TCRT5000 infrared reflective sensorSensor Structure: Infrared LED + NPN infrared phototransistor
Operating Voltage: 3.3V 5V
DC Detection Range: 1mm25mm
Output Type: Digital switch output
Output Signal: TTL logic signal, 0 and 1
Signal Processing IC: 74HC14 Schmitt trigger inverter
PCB Color: Black
Mini-PCB Dimensions: 3.5 cm × 1 cm
Mounting Hole: M3 mounting hole
Typical Applications: Line-following robot, smart car tracking, black/white line detection, obstacle avoidance, object counting, pulse sampling, paper detection Pin
Description VCC: Power supply positive, connect to 3.3V or 5V
DC GND: Ground
OUT: Digital TTL signal output
