1Pc 2.0 Inch Color LCD Module ILI9225 SPI Interface 176x220 for MCU Projects
Limited time offer, ends 09/19 By NovaStar Tech
- 2.0-Inch TFT Color LCD Display Module: This 2.0-inch color LCD module supports 16-bit RGB 65K color display, delivering rich color reproduction for text, graphics, icons, sensor data, menus, and embedded user interfaces.; 176×220 Resolution with ILI9225 Driver: Built with the ILI9225 driver chip, the display provides a 176×220 pixel resolution and an effective display area of approximately 31.68 x 39.60 mm, making it suitable for compact electronics projects and control panels.; 4-Wire SPI Interface Saves I/O Pins: The module uses a 4-wire SPI serial interface, requiring only a few microcontroller I/O pins to activate the display. It is ideal for Arduino, C51, ARM, and other MCU-based applications.; 3.3V/5V Compatible with SD Card Slot: Designed to work with 3.3V and 5V systems, this TFT LCD module is easy to integrate with common development boards. The built-in SD card slot provides convenient expansion for images, fonts, files, and data storage applications.; Stable Display Module for Embedded Projects: Featuring 3 white LED backlights, approximately 90 mA power consumption, and an operating temperature range of -10°C to 60°C, the module is suitable for long-term use in DIY electronics, display experiments, data monitors, and prototype development.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
This 2.0 -inch TFT color LCD module is designed for embedded display applications, microcontroller development, DIY electronics projects, and interactive interface design. It uses the ILI9225 driver chip and provides a 176×220 pixel resolution, delivering clear image and text display in a compact module size.
Product
LCD Module Display Type: 2.0 -inch TFT
Driver Chip: ILI9225
Resolution: 176×220 pixels
Display Color: 16-bit RGB, 65K colors
Interface: 4-wire SPI interface
Backlight: 3 white LEDs Effective
Display Area: 31.68 × 39.60 mm
Module Dimensions: 38.30 × 62.48 mm
Viewing Angle: 60°
Operating Temperature: -10°C to 60°C
Operating Voltage: 3.3V / 5V
Power Consumption: Approx. 90 mA

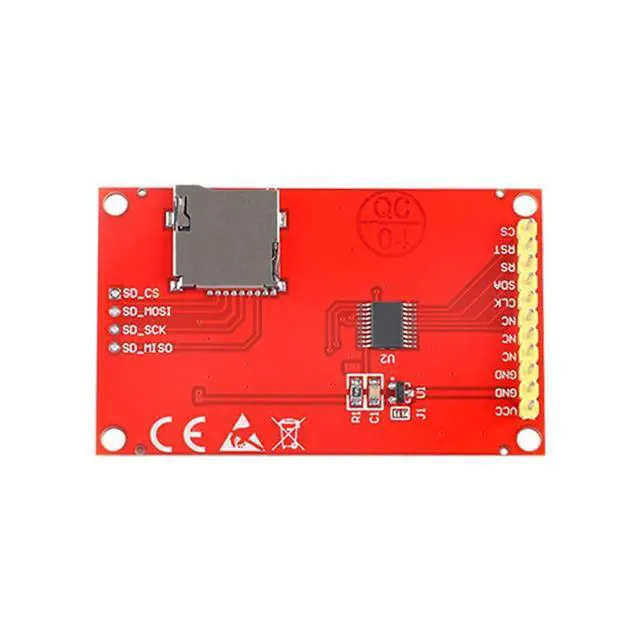

Pin Definitions Pin 1: VCC LCD power supply positive ( 3.3V 5V)
Pins 23: GND LCD power supply ground
Pins 46: NC Not defined, reserved
Pin 7: CLK LCD SPI bus clock signal
Pin 8: SDA LCD SPI bus write data signal
Pin 9: RS LCD register/data select signal; low level: register, high
level: data
Pin 10: RST LCD reset signal; low level triggers reset
Pin 11: CS LCD chip select signal; low level enables
Product
Specifications
Product Name: 2.0 -inch Color TFTLCD Module Display Type: 2.0 -inch TFT
Driver Chip: ILI9225
Resolution: 176×220 pixels
Display Color: 16-bit RGB, 65K colors
Interface: 4-wire SPI interface
Backlight: 3 white LEDs Effective
Display Area: 31.68 × 39.60 mm
Module Dimensions: 38.30 × 62.48 mm
Viewing Angle: 60°
Operating Temperature: -10°C to 60°C
Operating Voltage: 3.3V / 5V
Power Consumption: Approx. 90 mA
Pin Definitions Pin 1: VCC LCD power supply positive ( 3.3V 5V)
Pins 23: GND LCD power supply ground
Pins 46: NC Not defined, reserved
Pin 7: CLK LCD SPI bus clock signal
Pin 8: SDA LCD SPI bus write data signal
Pin 9: RS LCD register/data select signal; low level: register, high
level: data
Pin 10: RST LCD reset signal; low level triggers reset
Pin 11: CS LCD chip select signal; low level enables
