1Pc 1.8-Inch TFT LCD Display Module ST7735S SPI 128x160 Resolution
- 1.8-Inch TFT Color Display Module: This 1.8-inch TFT LCD module features a 128×160 pixel resolution and supports 16-bit RGB 65K-color display, making it suitable for showing text, icons, graphics, sensor readings, menus, and simple user interfaces in embedded projects.; ST7735S Driver with SPI Interface: Built with the ST7735S driver IC, the module uses a 4-wire SPI serial communication interface. It requires only a few microcontroller I/O pins, making it easy to connect with Arduino, STM32, ESP boards, and other common development platforms.; Clear Display with White LED Backlight: The display provides a clear 128×160 resolution with rich color reproduction. It includes 2 white LEDs for backlighting, offering stable visibility for desktop electronics, control panels, handheld devices, instruments, and DIY display terminals.; Onboard SD Card Slot for Expansion: The module includes an SD card slot, allowing convenient expansion for image storage, font libraries, data logging, and other display-related resources. It is ideal for projects that require graphics, bitmap display, or external file storage.; Wide Compatibility and Development Support: Operating at 3.3V / 5V with approximately 90mA power consumption, this TFT LCD module is compatible with many microcontroller systems. Low-level libraries, example programs, and driver support are available for Arduino and STM32 development.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

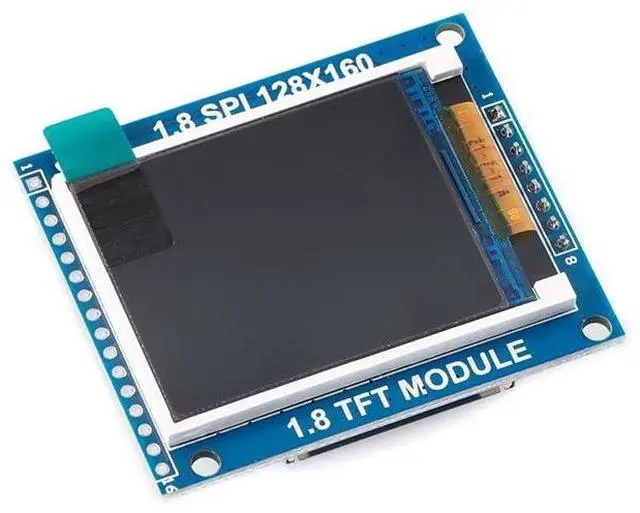

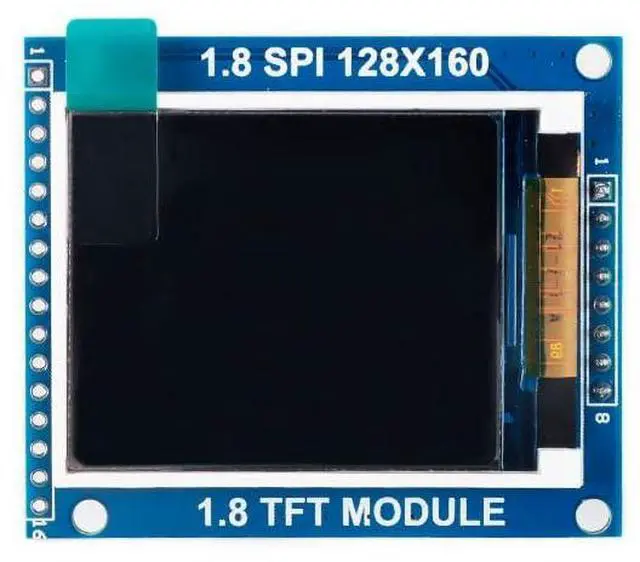

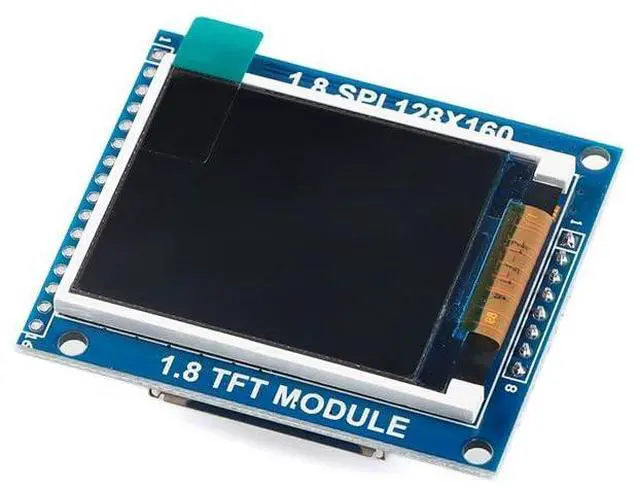

This 1.8 -inch TFT LCD display module is a compact color screen module designed for microcontroller and embedded display applications. It features a 128×160 pixel resolution, supports 16-bit RGB 65K-color display, and uses the ST7735S as the internal driver IC. With a 4-wire SPI communication interface, the module requires only a few I/O pins to operate, making it suitable for Arduino, C51, STM32, and other microcontroller development platforms.
Product
LCD Display Module Display Colors: 16-bit RGB, 65K colors
Driver IC: ST7735S
Resolution: 128×160 pixels
Interface: 4-wire SPI interface
Backlight: 2 white LEDs Effective
Display Area: 28.03 × 35.04 mm

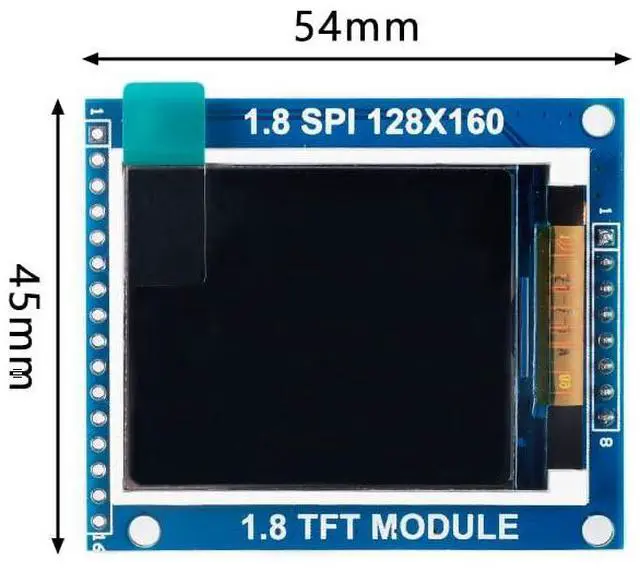

Module Dimensions: 44.96 × 53.47 mm
Viewing Angle: 12 o'clock
Operating Voltage: 3.3V / 5V
Power Consumption: 90mA
Operating Temperature: -10°C to 70°C
Storage Temperature: -20°C to 70°C
Expansion Function: SD card slot

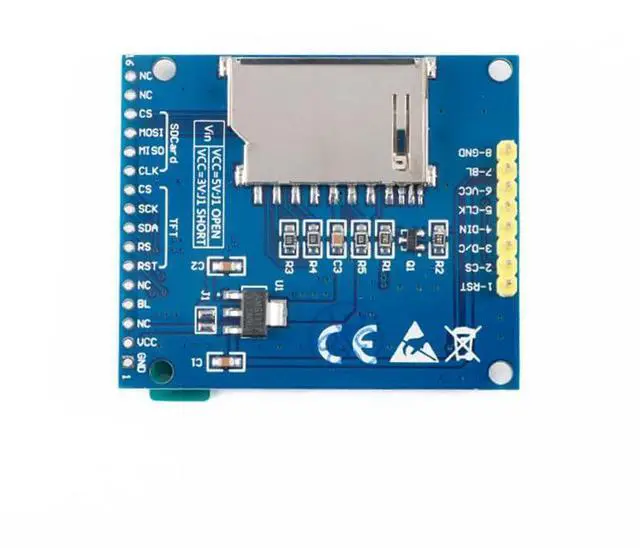

Pin Definitions RST: LCD reset control signal; low level resets the display
CS: LCD chip select control signal; low level enables the display
D/C: LCD register/data select signal;
High: Data, Low: Register
DIN: LCD SPI bus data write signal
CLK: LCD SPI bus clock signal
VCC: LCD power supply positive, 3.3V 5V
BL: LCD backlight control signal
GND: Power supply ground
Product
Specifications
Product Name: 1.8 -inch TFTLCD Display Module Display Colors: 16-bit RGB, 65K colors
Driver IC: ST7735S
Resolution: 128×160 pixels
Interface: 4-wire SPI interface
Backlight: 2 white LEDs Effective
Display Area: 28.03 × 35.04 mm
Module Dimensions: 44.96 × 53.47 mm
Viewing Angle: 12 o'clock
Operating Voltage: 3.3V / 5V
Power Consumption: 90mA
Operating Temperature: -10°C to 70°C
Storage Temperature: -20°C to 70°C
Expansion Function: SD card slot
Pin Definitions RST: LCD reset control signal; low level resets the display
CS: LCD chip select control signal; low level enables the display
D/C: LCD register/data select signal;
High: Data, Low: Register
DIN: LCD SPI bus data write signal
CLK: LCD SPI bus clock signal
VCC: LCD power supply positive, 3.3V 5V
BL: LCD backlight control signal
GND: Power supply ground
