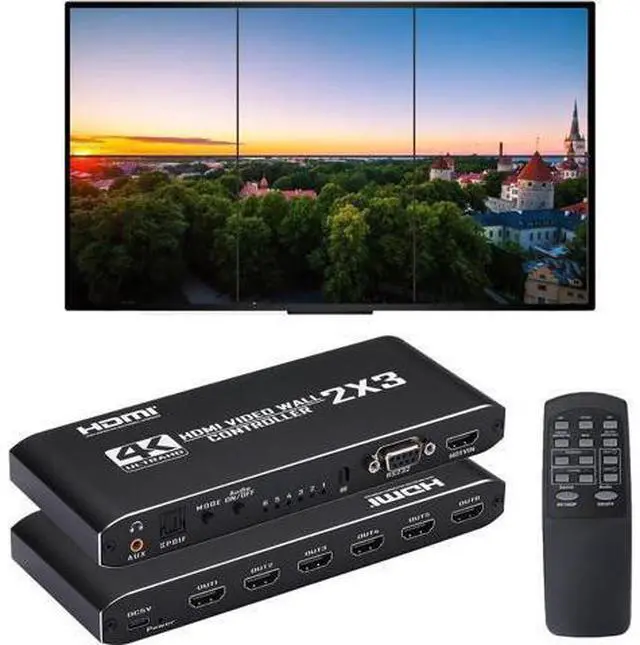

Video Wall Controller, 4K@30Hz 2X3 TV Wall Processor with 1 HDMI Input+ 6 HDMI Output + Audio Out, with RS232. Support 180° Rotate, 6 Output Support Images Stitching 2x3 2x2 1x6 6x1 etc

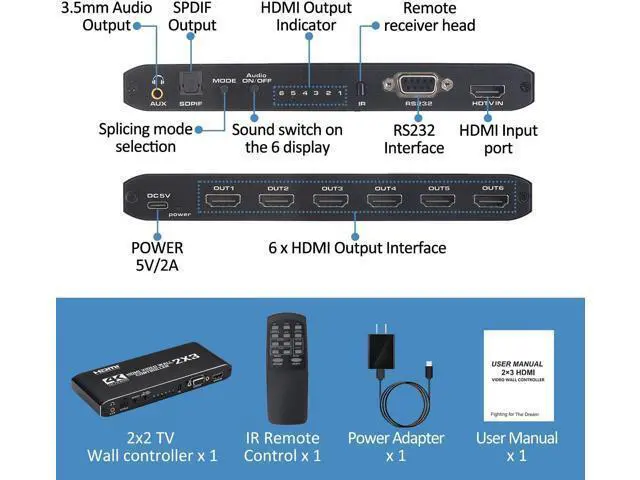

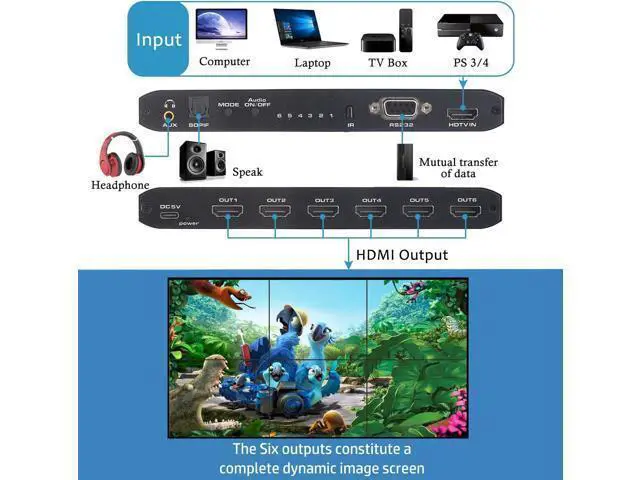

2x3 Video Wall ControllerThe 4K 2X3 video wall controller, support 1 HDMI input and 6 HDMI output, Supports audio output over optical fibers, and supports RS232. The main function is to divide a complete HDMI image singal into 6 blocks and assign to 6 video display unit (such as rear projection unit, LCD TV, etc. ). Complete with 6 HDMI high-definition video display units to form a large dynamic image screen. HD DisplayInput support HDMI 1.4, HDCP 1.4. Input support 1920x1080P@ 25/ 30/ 50/ 60Hz, 3840x2160P@24/ 30HZ.

Output support 4K@30Hz.
Input format: RGB/YUV24bit;

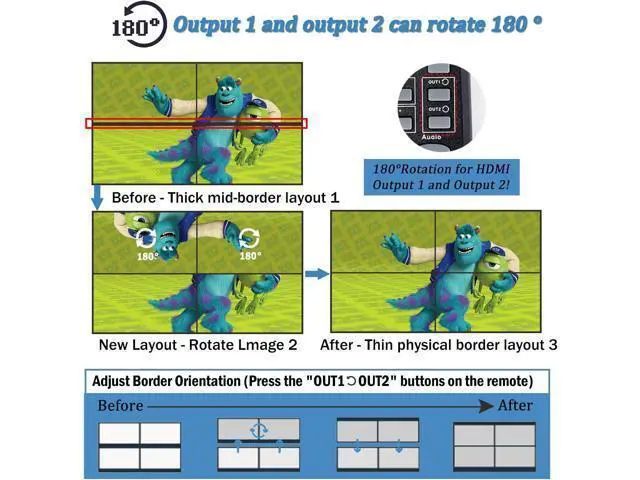

Output format: RGB444 24bit. Support Six HDMl output, one 3.5 mm stereooutput. It restores the original appearance of the image and presents a natural and complete picture without missing any details, with realistic and clear colors. 180° Screen RotationSupport 180° screen rotation function, you can flip the image of HDMI output 1 & output 2 to 180 degree, allowing you to install displays in an orientation that has the thinnest edges. Edge masking function helps you to create a seamless large video wall. ( Please notice rotation works ONLY in 2×2 mode & the input and output devices need to be no more than 1080P@60HZ ) 14

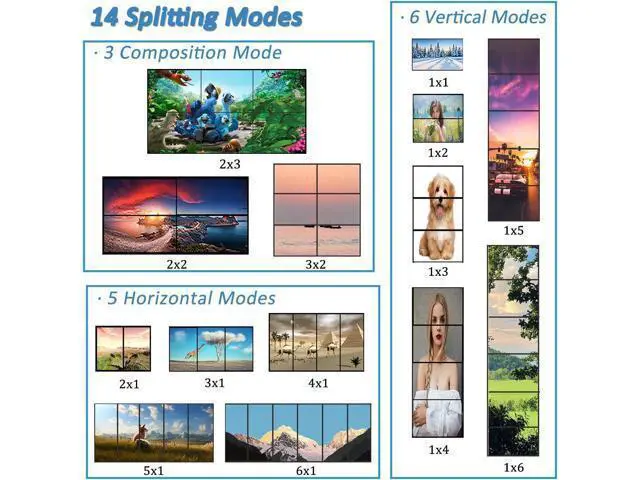

Splicing ModesMultiple splicing mode: 2x3, 2x2, 3x2 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 3x1, 4x1, 5x1, 6x1 satisfy diverse splicing needs...
