JMT LD2411S 24G Ra·DAR Sensor 0.3~6m Distance Ranging Ra·DAR Detector App Control Micro Ampere Ultra Low Power Switch (1Piece)

JMT LD2411S 24G Ra·dar Sensor 0.3 ~6m Distance Ranging Ra·dar Detector App Control Micro Ampere Ultra Low Power Switch Product Description LD2411S is a 24GHz ranging radar sensing module that utilizes FMC W frequency modulated continuous wave to detect targets in a set space. Combined with radar signal processing and precise sensing algorithms, it accurately senses the distance and status information of micro moving/moving objects. Supports micro motion sensing within 0.3 - 3.5 meters and movement sensing within 3.5 -6 meters, and outputs TTL serial port data in real-time. Configuration tools can be provided to modify the sensing distance range, sensing sensitivity, and delay time.

Product Features -Frequency: 24G-
24.25GH z -Modulation method: FMC
W -Detection distance: 0.3 ~ 3.5 m micro motion/ 0.3 ~6m motion (adjustable) -Detection angle: ± 45 ° (horizontal plane) /± 20 ° (vertical plane) -Power supply: 5V (Typ. )
-Current: ~50mA -Maximum equivalent omnidirectional radiation power: 16dBm (Typ. )
-Sweep bandwidth: ~250MHz (in compliance with
CE/FCC certification standards) -Environmental temperature: -40
~+85 -Data format: ttl
serial port -Packaging form: default 1.27 mm * 5Pin female seat

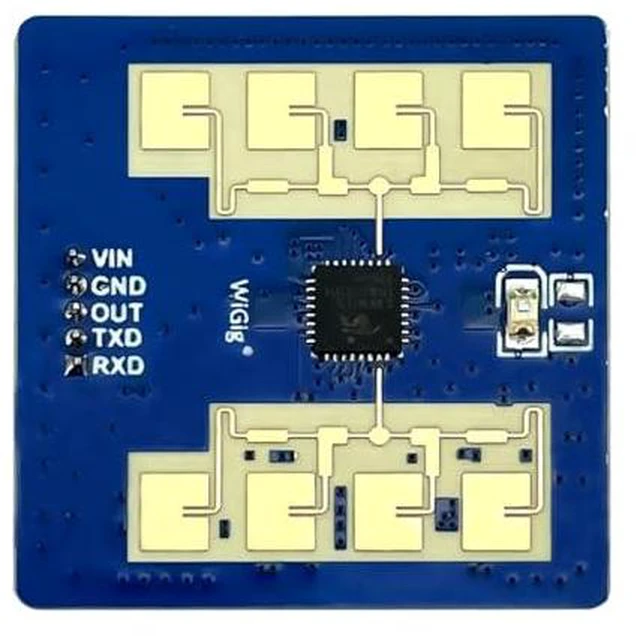

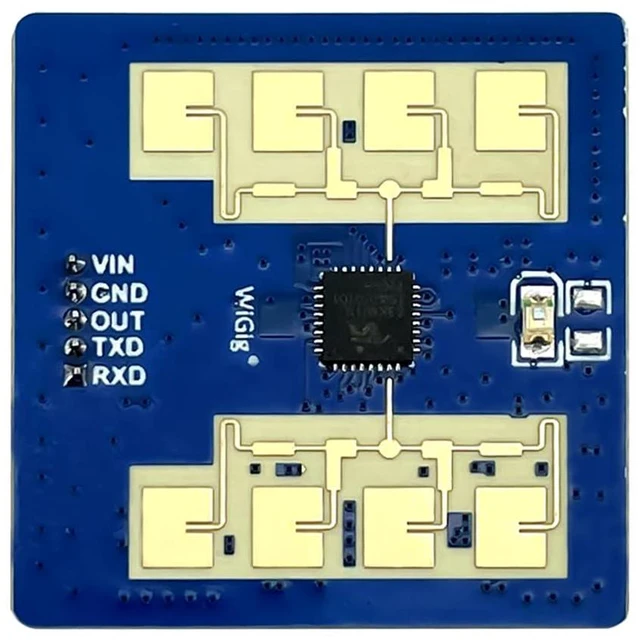

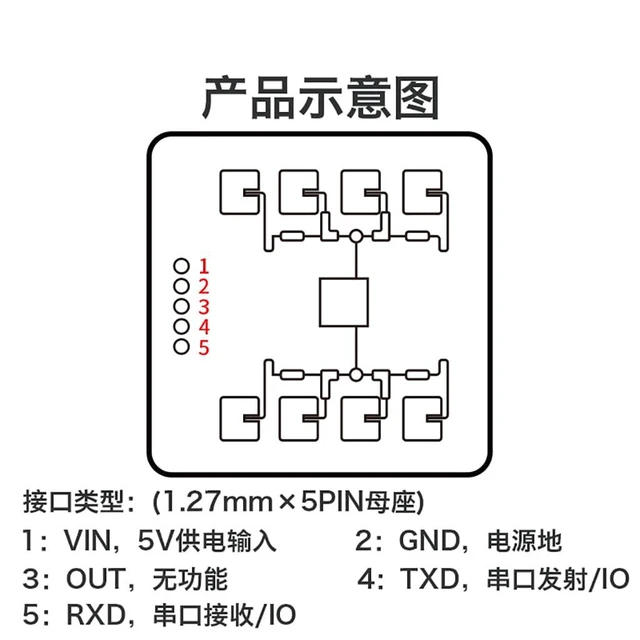

Interface type: ( 1.27 mm × 5PIN pin arrangement) 1: VCC, 5V
power input 2: GND, power
ground 3: OUT, no
function 4: TXD, serial
transmission/IO 5: RXD, serial port reception/IO
