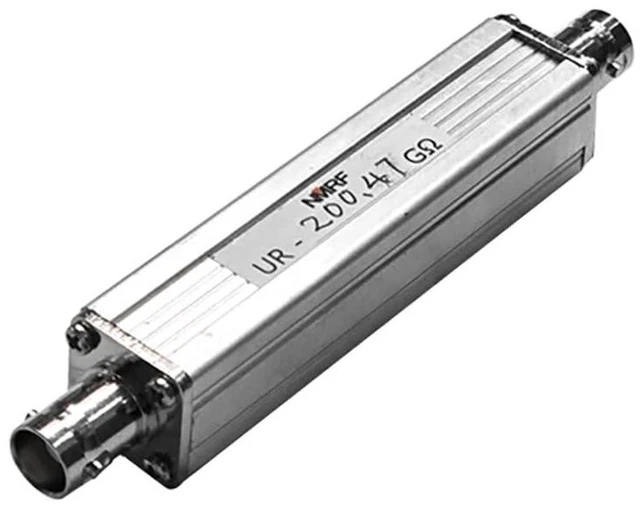

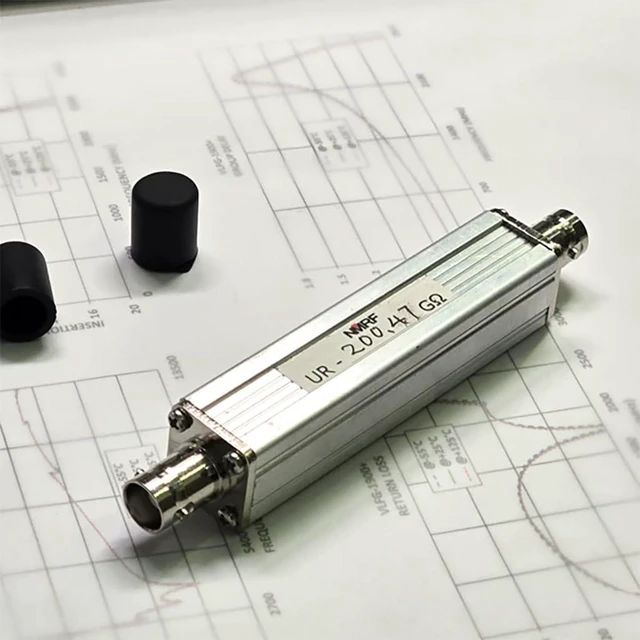

2W Ultra-High Resistance Resistors BNC-F Connector, Compact Design (200G/200kM)

2W Ultra-High Resistance Resistor, Compact Design, Aluminum Alloy Housing, BNC-F
Connector Options: 1T (1000G) /500G (500kM) /200G (200kM) /100G (100kM)

Product Details

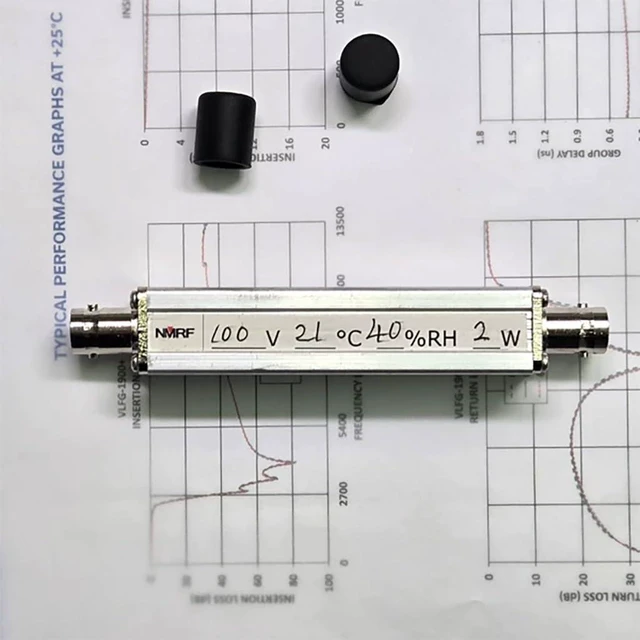

This device contains a series of ultra-high-resistance resistors and is used to generate currents in the nA or pA range or for testing and analyzing ultra-high-impedance voltage sources. The device is housed in an aluminum alloy enclosure with a BNC connector, making it compact, rugged, and durable. With a power rating of 2 W, each resistor is calibrated for its actual resistance value using a professional electrometer or high-resistance meter, and the label on the back indicates the test voltage, ambient temperature, ambient relative humidity, and the resistors maximum power dissipation.
Features: Maximum
Power Handling: 2W (33dBm).
Resistance Accuracy: ±1% (based on the actual marked value).
Temperature Coefficient of Resistance: ±200PPM.

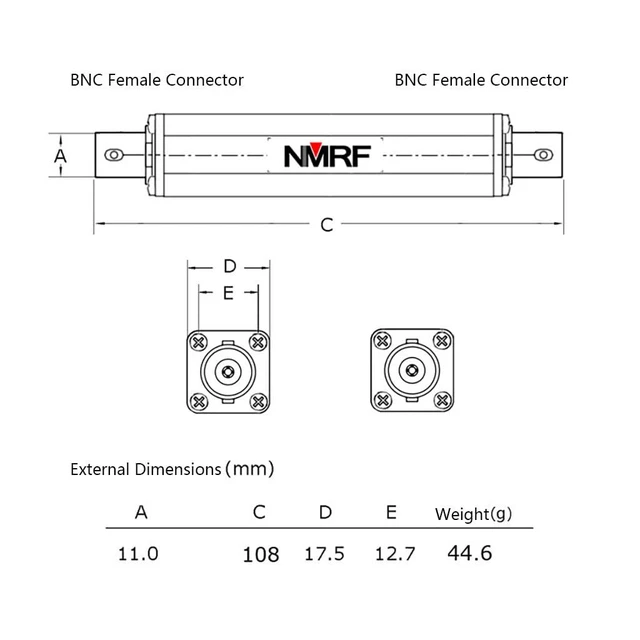

Connector: BNC-F --- BNC-F (50).
1T Model: UR-100x. xG.
Test Voltage: 200V_DC.
500 G Model: UR-50x. xG.
Test Voltage: 100 V_DC.

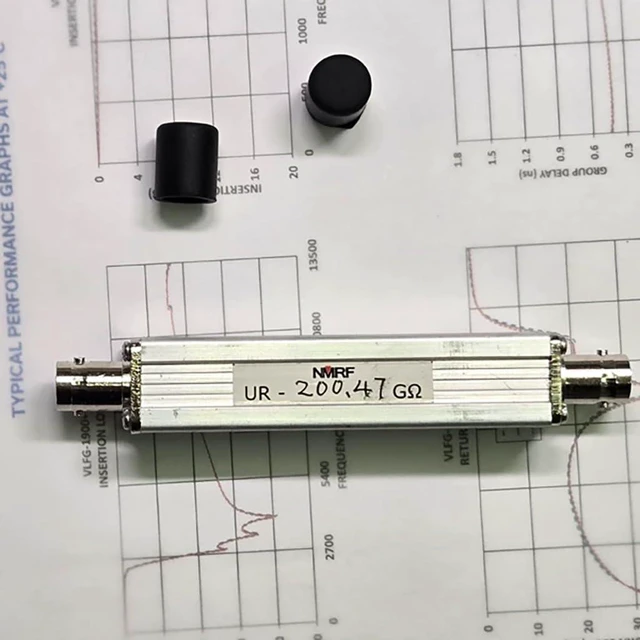

200 G Model: UR-20x. xxG.
Test Voltage: 100 V_DC.
100 G Model: UR-100. xxG.
Test Voltage: 20
V_DC Note: Each device is labeled with its actual measured resistance value. If you have special requirements for the test voltage, Customization acceptable.
Available values: 11000 V_DC
