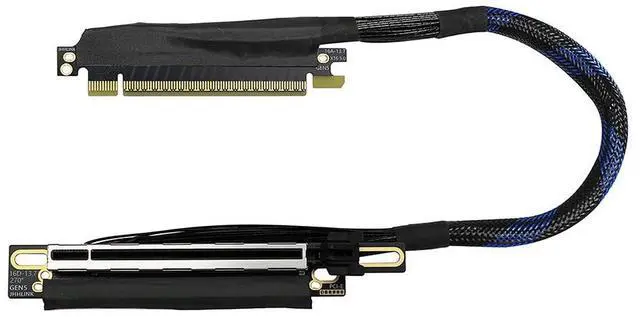

PCIE 5.0 X16 Extension Cable 64GBS High-Speed 270 Degree Silver-Plated GEN5 Adapter Lossless for Graphics Card GPU 16AD5Z (Right Out Right in,30CM)
- PCIE 5.0 X16 graphics card extension cable, 64GB/S bidirectional bandwidth, 270 degree. Cannot be used to server motherboards that compatible with PRSNT signals, such as 5090.; Direction DetailLeft and right indicate the direction of the wire, with the board and slot notch on the left as the positive direction. Mesh and wire indicate braided mesh and silver-plated wire.; Extension Cable Usage: The PCIE card originally plugged directly into the motherboard, through the extension cable to replace the location for installation.; Fully machine-soldered with UV-cured adhesive, undergoes 8 inspection stages, and shipped only after full testing. 12mm cable diameter.; Widely Application: Support GPU cards, display cards, graphics cards, computing cards, accelerator cards, network cards, sound cards, capture cards, solid state drives, array cards, etc. Backward compatible with PCIE 4.0, PCIE 3.0.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
JMT PCIE 5.0 X16 Extension Cable 64GB\S High-Speed 270 Degree Silver-Plated GEN5 Adapter Lossless for Graphics Card GPU 16AD5Z

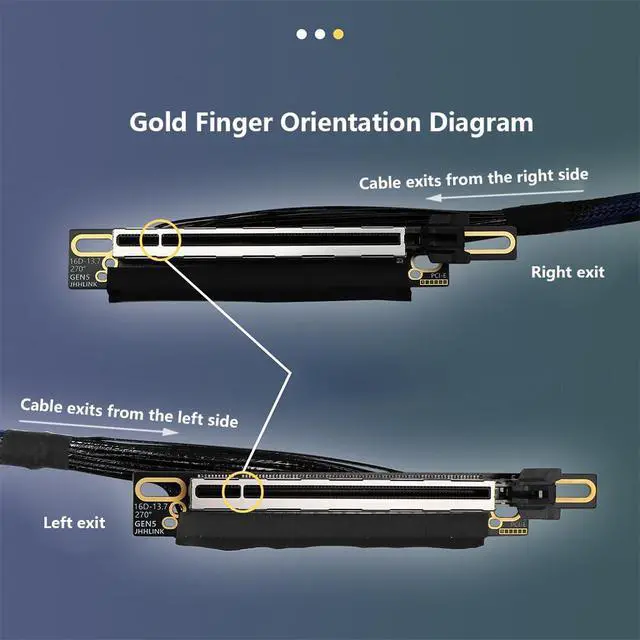

Product Description: 1. PCIe 5.0 x16 GEN5 with 64GB/s bidirectional bandwidth. 2. 6-layer high-frequency, low-impedance, low-dielectric PCB with specialized optimization process. 3. Gold-plated PCIe 5.0 connectors, braided mesh cable structure, 12mm cable diameter. 4. Ultra-narrow 270-degree bend -back design for extended GPU installations in tight spaces with flexible placement. 5. Gold fingers exit from the right side; slot end enters from the right side. 6. Features GEN5 silver-plated conductors, Teflon insulation, aluminum foil Mylar shielding, and dual-ground structure. 7. Supports PCIe 5.0 data transfer, compatible with GPUs, SSDs, expansion cards, and backward compatible with PCIe 4.0 and PCIe 3.0. 8. Fully machine-soldered with UV-cured adhesive, undergoes 8 inspection stages, and shipped only after full testing.
Product Description: 1. PCIe 5.0 x16 GEN5 with 64GB/s bidirectional bandwidth. 2. 6-layer high-frequency, low-impedance, low-dielectric PCB with specialized optimization process. 3. Gold-plated PCIe 5.0 connectors, braided mesh cable structure, 12mm cable diameter. 4. Ultra-narrow 270-degree bend -back design for extended GPU installations in tight spaces with flexible placement. 5. Gold fingers exit from the right side; slot end enters from the right side. 6. Features GEN5 silver-plated conductors, Teflon insulation, aluminum foil Mylar shielding, and dual-ground structure. 7. Supports PCIe 5.0 data transfer, compatible with GPUs, SSDs, expansion cards, and backward compatible with PCIe 4.0 and PCIe 3.0. 8. Fully machine-soldered with UV-cured adhesive, undergoes 8 inspection stages, and shipped only after full testing.
