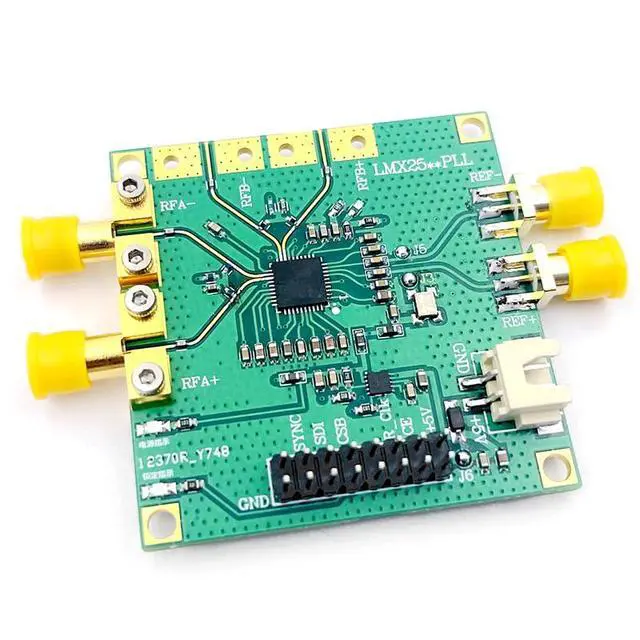

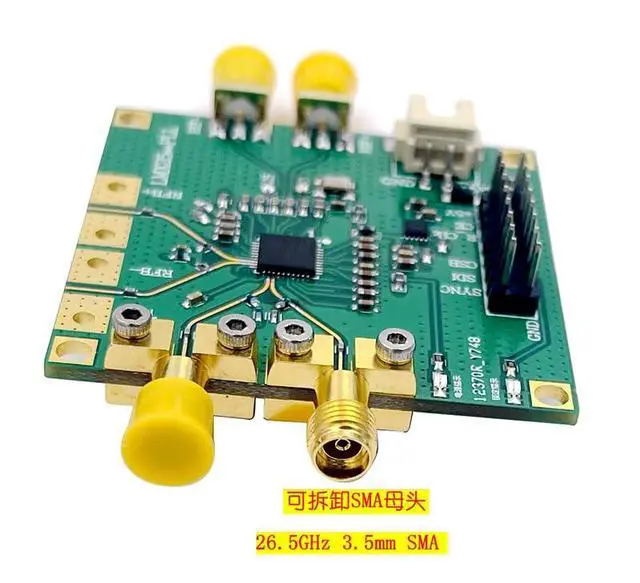

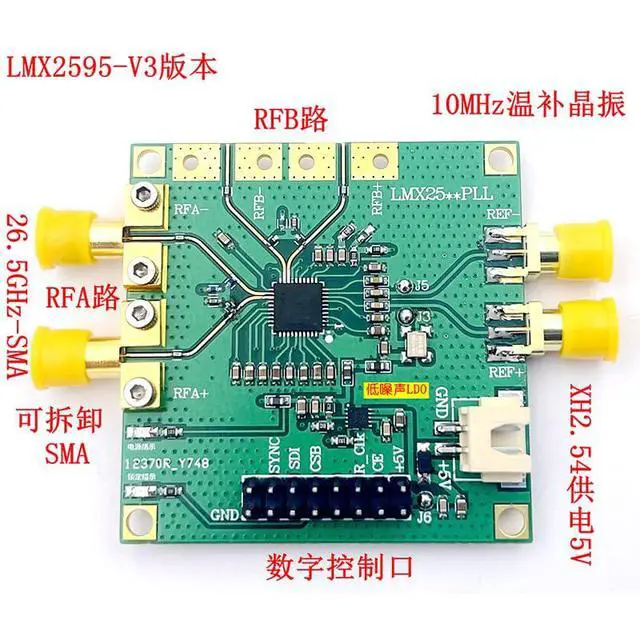

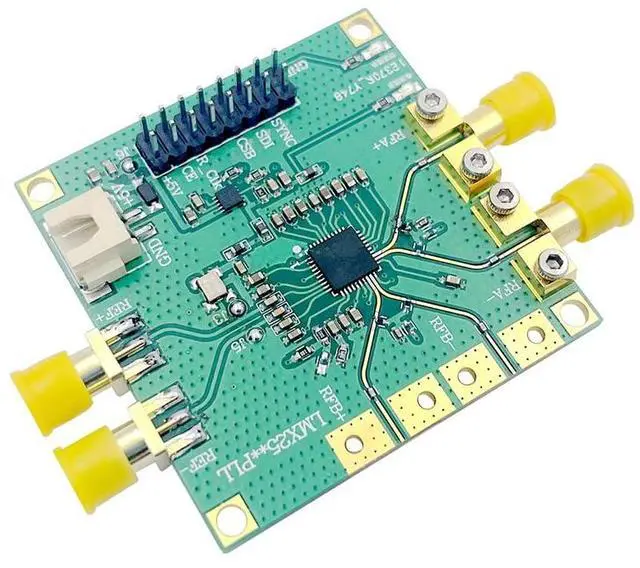

LMX2595 10M-19GHZ Phase-Locked Loop Development Board Supports Sweep Frequency with SMA Connector USB C Power Supply (LMX2595 Core Board)
- 10MHz to 19GHz output frequency. Phase noise of -110dBc/Hz with 100KHz offset and 15GHz carrier. 45fs RMS jitter (100Hz to 100MHz) at 7.5GHz.; 400MHz integer mode. 300MHz fractional mode. 32-bit fractional-N divider.; Eliminate integer boundary spurs with programmable input multipliers. Output phase synchronization across multiple devices. Supports SYSREF with 9ps resolution programmable delay.; FMCW frequency ramp and chirp capability applications. Less than 20µs VCO calibration speed. 3.3V single supply operation.; LMX2595 chip: 5G and mmWave wire less infrastructure. High-speed data converter clock (JESD204B supported).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
JMT LMX2595 10M-19GHZ Phase-Locked Loop Development Board Supports Sweep Frequency with SMA Connector USB C Power Supply LMX2595 chip characteristics: 10MHz to 19GHz output frequency. Phase noise of -110dBc/Hz with 100KHz offset and 15GHz carrier. 45fs RMS jitter (100Hz to 100MHz) at 7.5GH z. Programmable output power.
Key PLL specifications -Quality factor: -236dBc/Hz.
-Nominal 1/f noise: -129dBc/Hz. -Highest phase detector frequency. -400MHz integer mode. -300MHz fractional mode. -32-bit fractional-N divider. Eliminate integer boundary spurs with programmable input multipliers. Output phase synchronization across multiple devices. Supports SYSREF with 9ps resolution programmable delay. FMCW frequency ramp and chirp capability applications. Less than 20µs VCO calibration speed. 3.3V single supply operation.
LMX2595 chip application: 5G and mmWave wire less infrastructure. Test and measurement equipment. Radar. MIMO. Phased array antennas and beam forming. High-speed data converter clock (JESD204B supported).
Key PLL specifications -Quality factor: -236dBc/Hz.
-Nominal 1/f noise: -129dBc/Hz. -Highest phase detector frequency. -400MHz integer mode. -300MHz fractional mode. -32-bit fractional-N divider. Eliminate integer boundary spurs with programmable input multipliers. Output phase synchronization across multiple devices. Supports SYSREF with 9ps resolution programmable delay. FMCW frequency ramp and chirp capability applications. Less than 20µs VCO calibration speed. 3.3V single supply operation.
LMX2595 chip application: 5G and mmWave wire less infrastructure. Test and measurement equipment. Radar. MIMO. Phased array antennas and beam forming. High-speed data converter clock (JESD204B supported).
