1200MHz /1550~1615MHz Frequency Band Protection Band-Reject Filter Notch Filter Compatible with GPS, Beidou and Other Satellite Positioning (1550~1615MHz for Main Frequency)
- 1200MHz: Satellite positioning sub-band protection, compatible with GPS L2, Beidou B2, etc.; 1550~1615MHz: Satellite positioning Main Frequency band protection, compatible with GPS L1, etc.; 1200MHz Impedance: 50 Ohms. Center frequency: 1200 MHz . Center frequency insertion loss: 45 dB.; 1550~1615MHz Impedance: 50 Ohms. Center frequency: 1575 MHz. Center frequency insertion loss: >40 dB .; 1200MHz 40 dB stopband: 11501250 MHz. 3 dB passband edge: 10001350 MHz.Max power handling: 5 W (37 dBm). Interface: SMA-F, SMA-F.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

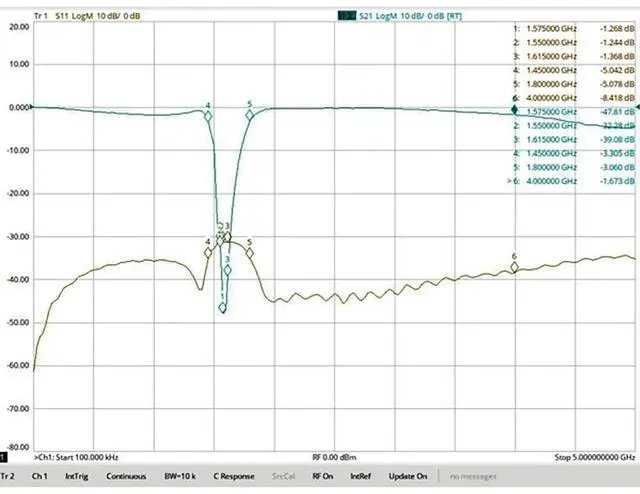

JMT 1200MHz /1550~1615MHz Frequency Band Protection Band-Reject Filter Notch Filter Compatible with GPS, Beidou and Other Satellite Positioning High-order, compact size, low insertion loss, high selectivity, moderate power handling Frequency response diagram (scanning frequency range: 0.14000 MHz, yellow line represents S11, blue line represents S21, vertical
scale: 10 dB per division) 1200MHz Band Stop
Filter Applications: Satellite positioning sub-band protection, compatible with GPS L2, Beidou B2, etc. Specifically designed to remove 1200 MHz band signals from broadband RF signals Laboratory and other high-selectivity applications
Model: KFBR-1200
Impedance: 50
Ohms Center frequency: 1200
MHz Center frequency insertion loss: 45
dB 40 dB stopband: 11501250
MHz 3 dB passband edge: 10001350

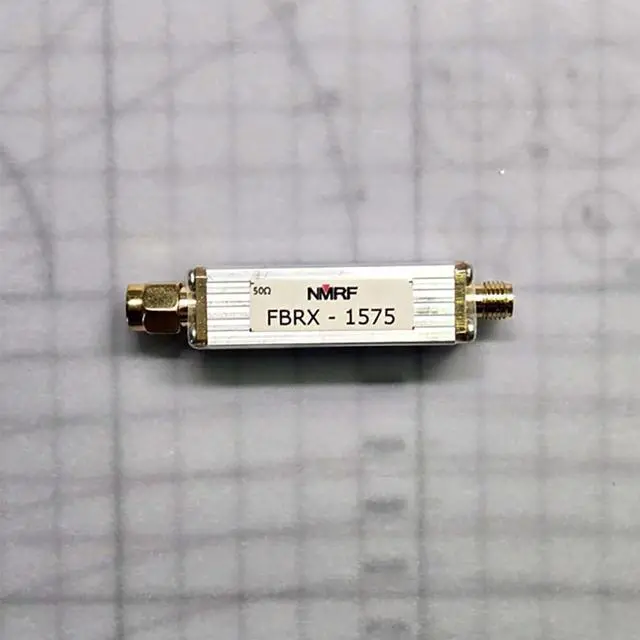

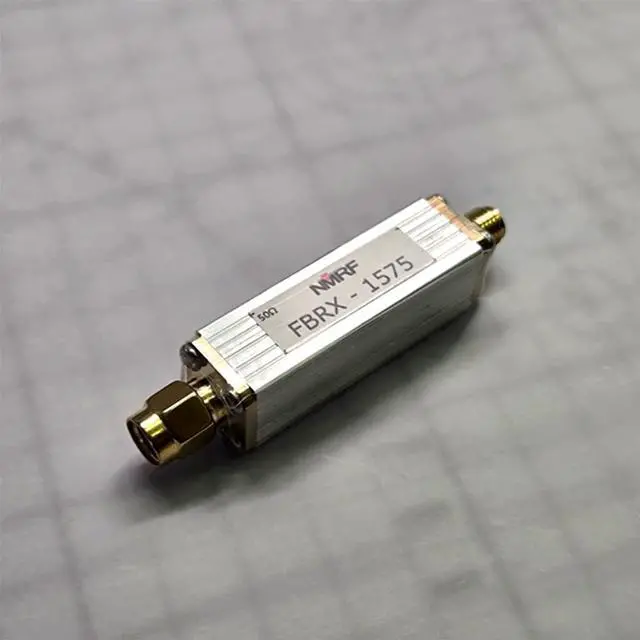

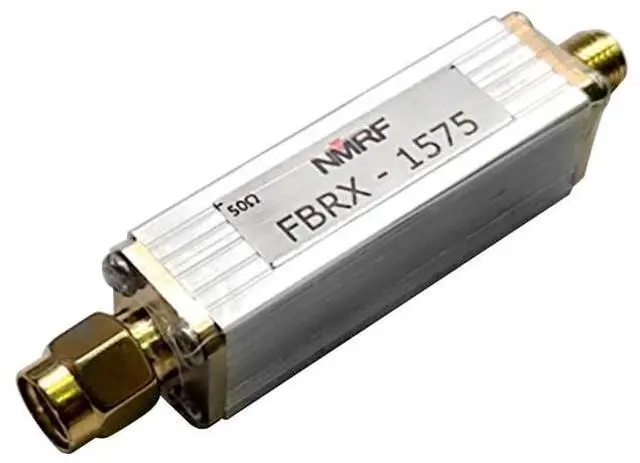

MHz Passband insertion loss: <2.5 dB @ DC ~ 100 MHz <5.0 dB @ 1350 ~ 3000 MHz Max power handling: 5 W (37 dBm) Interface: SMA-F, SMA-F 1550~1615MHz Band Stop Filter Applications: Satellite positioning Main Frequency band protection, compatible with GPS L1, etc. Laboratory and other high-selectivity applications Model: FBRX-1575 Impedance: 50 Ohms Center frequency: 1575 MHz Center frequency insertion loss: > 40 dB 30 dB stopband: 15501615
MHz 3 dB passband edge: 14501800
MHz Passband insertion loss: < 2.5 dB @ DC ~1300Mhz & 2000~4000Mhz
Maximum power handling: 3 W (35 dBm)
Interface: SMA-M, SMA-F
scale: 10 dB per division) 1200MHz Band Stop
Filter Applications: Satellite positioning sub-band protection, compatible with GPS L2, Beidou B2, etc. Specifically designed to remove 1200 MHz band signals from broadband RF signals Laboratory and other high-selectivity applications
Model: KFBR-1200
Impedance: 50
Ohms Center frequency: 1200
MHz Center frequency insertion loss: 45
dB 40 dB stopband: 11501250
MHz 3 dB passband edge: 10001350
MHz Passband insertion loss: <2.5 dB @ DC ~ 100 MHz <5.0 dB @ 1350 ~ 3000 MHz Max power handling: 5 W (37 dBm) Interface: SMA-F, SMA-F 1550~1615MHz Band Stop Filter Applications: Satellite positioning Main Frequency band protection, compatible with GPS L1, etc. Laboratory and other high-selectivity applications Model: FBRX-1575 Impedance: 50 Ohms Center frequency: 1575 MHz Center frequency insertion loss: > 40 dB 30 dB stopband: 15501615
MHz 3 dB passband edge: 14501800
MHz Passband insertion loss: < 2.5 dB @ DC ~1300Mhz & 2000~4000Mhz
Maximum power handling: 3 W (35 dBm)
Interface: SMA-M, SMA-F
