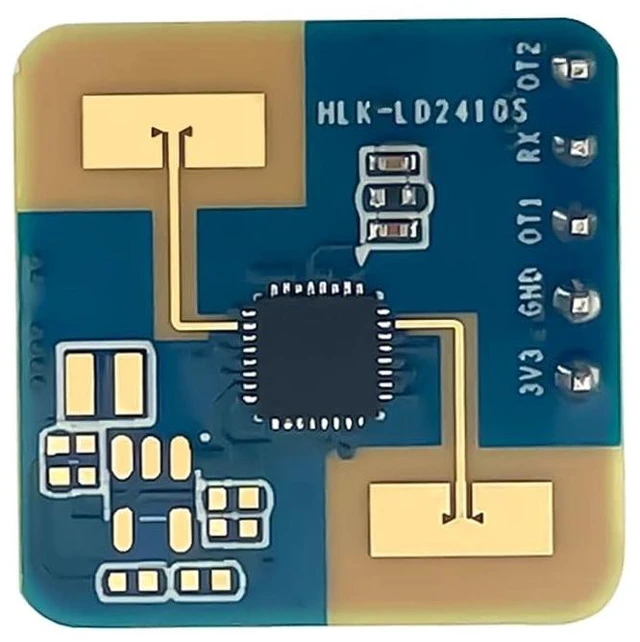

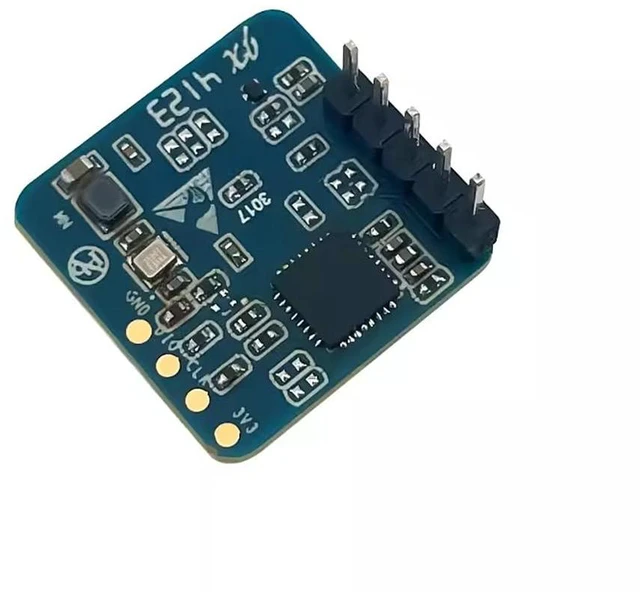

JMT LD2410S 24G Ra·DAR Module 24g Human Presence Sensing Ra·DAR Distance Detection Micro Ampere Ultra Low Power Switch (1Piece)
Limited time offer, ends 09/06 By GearZap
- LD2410S is a low-power millimeter wave radar sensor for human presence detection, equipped with AloT millimeter wave sensors, high-performance 24GHz one transmitter, one receiver antenna, and peripheral circuits.; The low-power intelligent human body sensing algorithm adopts millimeter wave sensor distance measurement technology and ICL 1112 chip proprietary radar signal processing and low-power control technology, achieving precise perception of motion, micro motion, and standing human bodies.; Mainly used in indoor scenes, sensing whether there is movement or micro movement of the human body in the area in a low-power mode, and refreshing the detection results in real-time.; Configurable sensing distance range, trigger and hold thresholds for different intervals, data refresh rate in trigger and hold states, and unmanned reporting time. Supports GPIO 1UART interface, plug and play, and flexibly applies to different intelligent scenarios and terminal products.; Detection distance: Motion detection within 8m/sensing within 4m. Detection angle: ± 60 °.; The default baud rate is 921600, with 1 stop bit and no parity bit.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
JMT LD2410S 24G Ra·dar Module 24g Human Presence Sensing Ra·dar Distance Detection Micro Ampere Ultra Low Power Switch

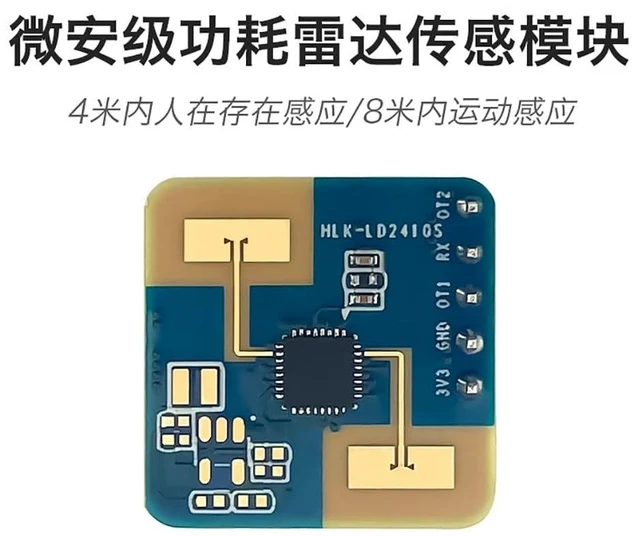

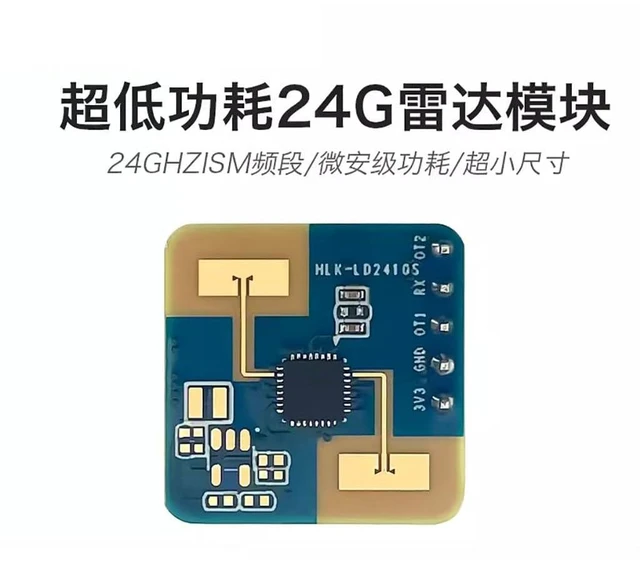

Product Description: LD2410S is a low-power millimeter wave radar sensor for human presence detection, equipped with AloT millimeter wave sensors, high-performance 24GHz one transmitter, one receiver antenna, and peripheral circuits. The low-power intelligent human body sensing algorithm adopts millimeter wave sensor distance measurement technology and ICL 1112 chip proprietary radar signal processing and low-power control technology, achieving precise perception of motion, micro motion, and standing human bodies. Mainly used in indoor scenes, sensing whether there is movement or micro movement of the human body in the area in a low-power mode, and refreshing the detection results in real-time.
Product Features -Frequency: 24G-
24.25GH z -Modulation method: FMC
W -Detection distance: Motion detection within 8m/sensing within 4m -Detection angle: ±
60 ° -Power supply: 3.3V (Typ. )
-Current: ~ 0.12 mA (Typ. ) -Output serial port level: 3.3V
-Sweep bandwidth: 250MHz (in compliance with CE/FCC certification standards) -Maximum equivalent omnidirectional radiation power: 10dBm
-Data brush cycle: 40s (Typ.
configurable) -Data format: serial port ASCII output/high and low level 3.3V &0V -Packaging form: default with pins

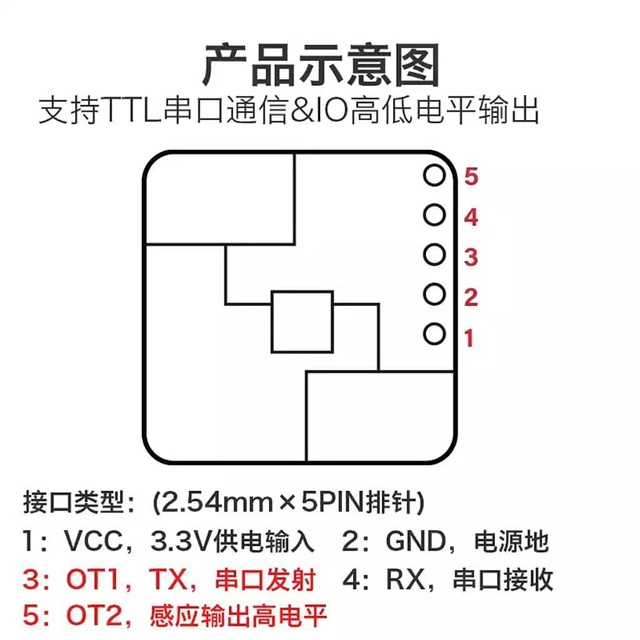

Interface type: ( 2.54 mm × 5PIN pin arrangement) 1: VCC, 3.3V
power input 2: GND, power
ground 3: OT1, TX, serial
transmission 4: RX, serial
port reception 5: OT2, induction output high level The default baud rate is 921600, with 1 stop bit and no parity bit.
Product Description: LD2410S is a low-power millimeter wave radar sensor for human presence detection, equipped with AloT millimeter wave sensors, high-performance 24GHz one transmitter, one receiver antenna, and peripheral circuits. The low-power intelligent human body sensing algorithm adopts millimeter wave sensor distance measurement technology and ICL 1112 chip proprietary radar signal processing and low-power control technology, achieving precise perception of motion, micro motion, and standing human bodies. Mainly used in indoor scenes, sensing whether there is movement or micro movement of the human body in the area in a low-power mode, and refreshing the detection results in real-time.
Product Features -Frequency: 24G-
24.25GH z -Modulation method: FMC
W -Detection distance: Motion detection within 8m/sensing within 4m -Detection angle: ±
60 ° -Power supply: 3.3V (Typ. )
-Current: ~ 0.12 mA (Typ. ) -Output serial port level: 3.3V
-Sweep bandwidth: 250MHz (in compliance with CE/FCC certification standards) -Maximum equivalent omnidirectional radiation power: 10dBm
-Data brush cycle: 40s (Typ.
configurable) -Data format: serial port ASCII output/high and low level 3.3V &0V -Packaging form: default with pins
Interface type: ( 2.54 mm × 5PIN pin arrangement) 1: VCC, 3.3V
power input 2: GND, power
ground 3: OT1, TX, serial
transmission 4: RX, serial
port reception 5: OT2, induction output high level The default baud rate is 921600, with 1 stop bit and no parity bit.
