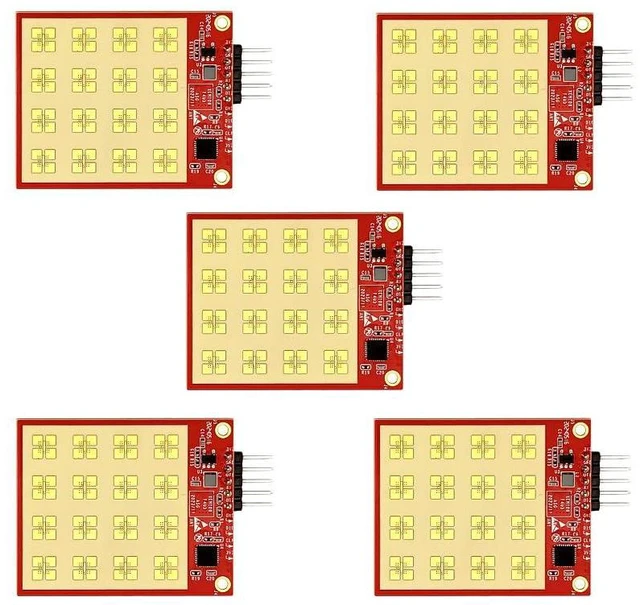

LD2413 24G Water Level Detection Sensor Ra·DAR Module Liquid Detection Non-Contact Sensor Switch (Single Module,5Pcs)
Limited time offer, ends 11/01 By GearZap
- Frequency: 24GHz (23~27GHz). Modulation mode: FMCW.; Scanning bandwidth: 4GHz. Detection distance: 0.15m~10m.; EIRP Parameter: 11dBm(-6dB dual range). Horizontal/vertical range:; 12°.; Ranging accuracy:; 3mm (theoretical value). Reporting period: 160ms (50~1000ms/configurable).; Ambient Temperature: -40~+85. Power supply range: 3.3V(3.0~3.6V)@1A .
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
LD2413 24G Water Level Detection Sensor Ra·dar Module Liquid Detection Non-Contact Sensor Switch Technical Parameters -
Frequency: 24GHz
(23~27GHz) -Modulation mode: FMCW
-Scanning bandwidth: 4GHz
-Detection distance: 0.15
m~10m -EIRP parameter: 11dBm(-6dB
dual range) -Horizontal/vertical range: ±12°
-Ranging accuracy: ±3mm
(theoretical value) -Reporting period: 160ms (50~1000ms/configurable) -Ambient
Temperature: -40~+85
-Package size: 31.6 * 51.6 * 2.2 mm -Power supply range: 3.3V ( 3.0 ~ 3.6V )@1A
Frequency: 24GHz
(23~27GHz) -Modulation mode: FMCW
-Scanning bandwidth: 4GHz
-Detection distance: 0.15
m~10m -EIRP parameter: 11dBm(-6dB
dual range) -Horizontal/vertical range: ±12°
-Ranging accuracy: ±3mm
(theoretical value) -Reporting period: 160ms (50~1000ms/configurable) -Ambient
Temperature: -40~+85
-Package size: 31.6 * 51.6 * 2.2 mm -Power supply range: 3.3V ( 3.0 ~ 3.6V )@1A
