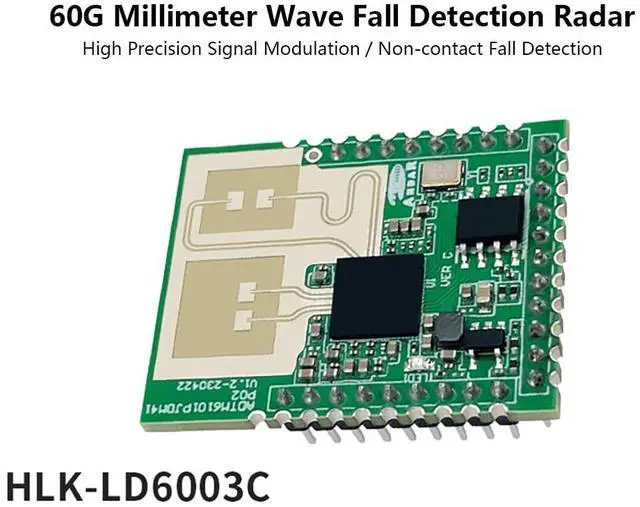

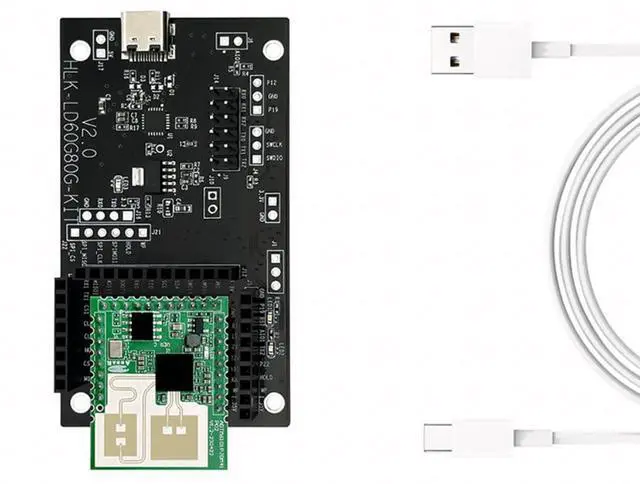

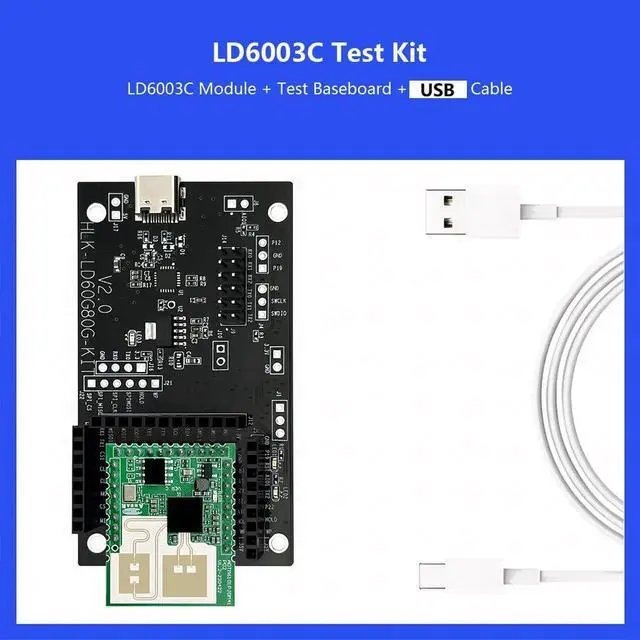

HLK-LD6003C 60G Millimeter Wave Human Fall Detection Radar Module Non-Contact Monitoring High Precision Signal Modulation (Test Kit)
- HLK-LD6003C adopts high-precision modulation signal system, and can non-contactly detect human fall in the set area with extremely high sensitivity.; It can simultaneously detect three types of user danger signals: a.Suspected fall, b. Static residence, C. Long-term residence, and transmit the detection results to the host computer or MCU through the serial port; Operating Frequency: 60G(58~62GHz). Transmission power: 12dBm. Antenna Gain: 4dBi.; Operating Voltage: 3.3(Typ.). Operating Current: 200mA(Typ.). Power Consumption: 0. 66w (Typ.). Storage Temperature: -40C~+80C.; Communication Mode: Serial Port (Baud Rate 115200). Ceiling Mounting Height Range: 2.0m~3.0m/2.8m(Typ.).; Ceiling Mounting Fall Monitoring Range: Covers a circular Area of About 12 on the Ground- Accuracy: 95% .; Detection distance: 2m. Response Time (Fall Detection) : 8s(Typ.). Response Time (Unmanned- Manned) : 2s( Max.). Response Time (Manned Unmanned) : 30s(Typ.)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

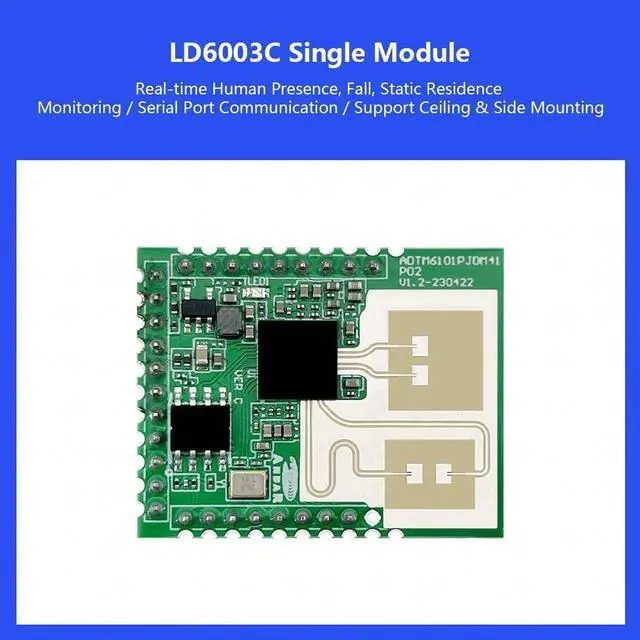

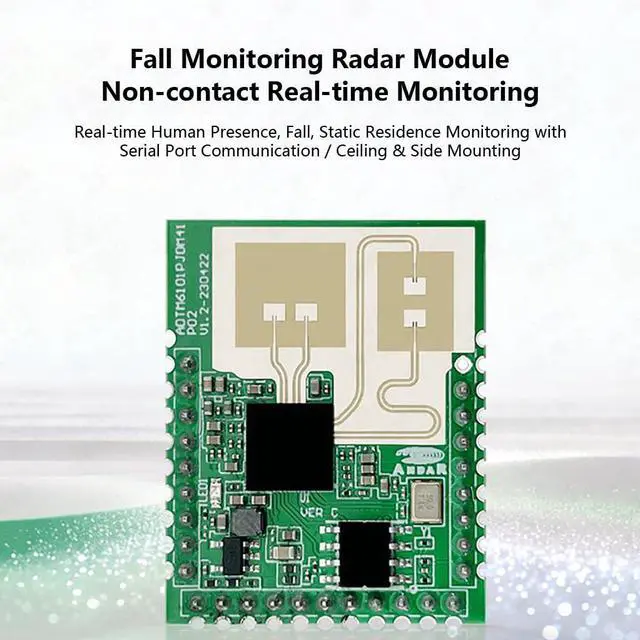

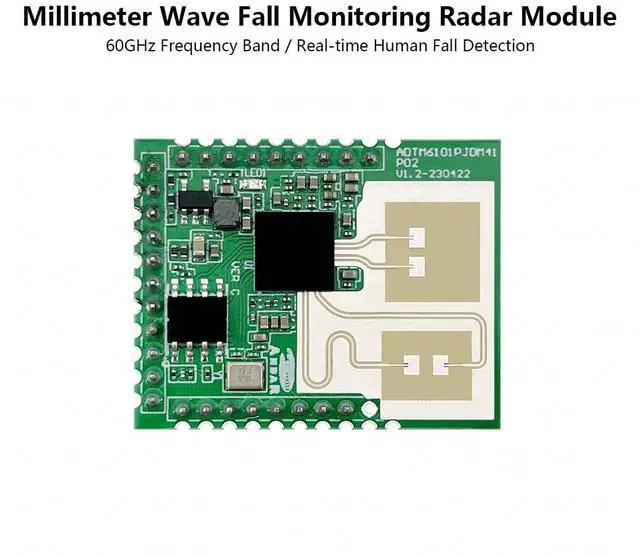

JMT HLK-LD6003C 60G Millimeter Wave Human Fall Detection Radar Module Non-contact Monitoring High Precision Signal Modulation LD6003C millimeter wave human fall monitoring radar module supports ceiling mounting. It adopts high-precision modulation signal system, and can non-contactly detect human fall in the set area with extremely high sensitivity. It can simultaneously detect three types of user danger signals: a. Suspected fall, b. Static residence, C. Long-term residence, and transmit the detection results to the host computer or MCU through the serial port
Product Features: Operating
Frequency: 60G(58~62GHz)
Transmission power: 12dBm
Antenna Gain: 4dBi
Operating Voltage: 3.3 (Typ. )
Operating Current: 200mA(Typ. )
Storage Temperature: -40C~+80C
Module dimensions: 25x 31.5 mm

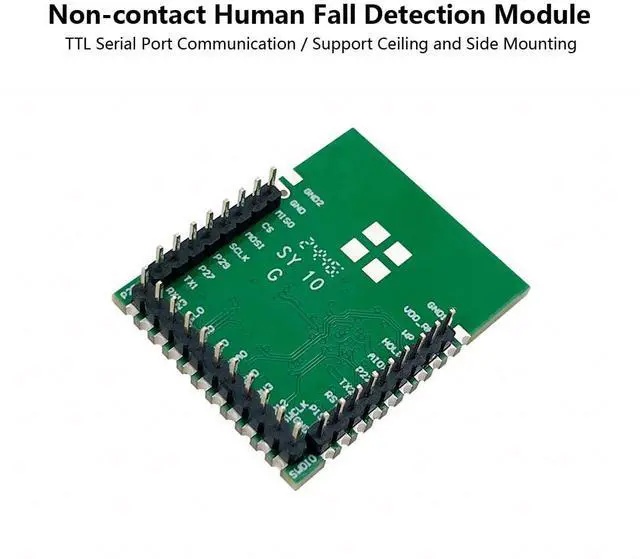

Communication Mode: Serial Port (Baud Rate 115200) Ceiling
Mounting Height Range: 2.0 m~ 3.0 m/ 2.8 m(Typ. )
Ceiling Mounting Fall Monitoring Range: Covers a circular Area of About 12 on the
Ground- Accuracy: 95%
Power Consumption: 0. 66w (Typ. )
Detection distance: 2m Response Time (Fall
Detection): 8s(Typ. ) Response Time (Unmanned-
Manned): 2s( Max. )
Operating Temperature: -20~+50 Response Time (Manned
Unmanned): 30s(Typ. )
Operating Frequency: 60G(58~62GHz)
Product Features: Operating
Frequency: 60G(58~62GHz)
Transmission power: 12dBm
Antenna Gain: 4dBi
Operating Voltage: 3.3 (Typ. )
Operating Current: 200mA(Typ. )
Storage Temperature: -40C~+80C
Module dimensions: 25x 31.5 mm
Communication Mode: Serial Port (Baud Rate 115200) Ceiling
Mounting Height Range: 2.0 m~ 3.0 m/ 2.8 m(Typ. )
Ceiling Mounting Fall Monitoring Range: Covers a circular Area of About 12 on the
Ground- Accuracy: 95%
Power Consumption: 0. 66w (Typ. )
Detection distance: 2m Response Time (Fall
Detection): 8s(Typ. ) Response Time (Unmanned-
Manned): 2s( Max. )
Operating Temperature: -20~+50 Response Time (Manned
Unmanned): 30s(Typ. )
Operating Frequency: 60G(58~62GHz)
