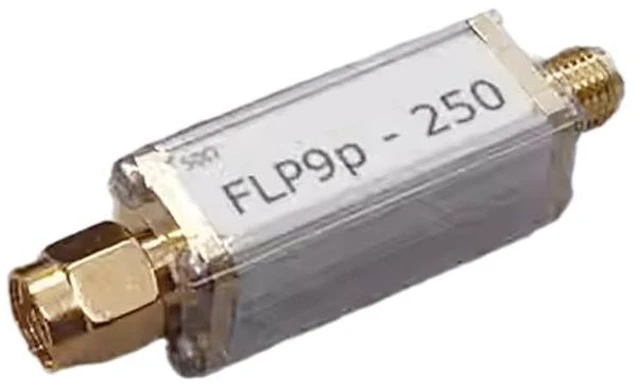

Flat Passband 9th Step Low Pass Filter SMA Connector Female to Male Interface Discrete LC Components Small Size (250MHz)
Limited time offer, ends 09/06 By GearZap
- Applications: Laboratory applications , Other highly selective applications.; Impedance: 50 Ohms, Small size, flat passband, high out-of-band rejection.; 200Hz Insertion Loss: <= 1.5 dB @ < 200 MHz, > 50 dB @ 350 - 3000 MHz .; 250MHz Insertion Loss: <= 1.0 dB @ < 200 MHz, <= 2.0 dB @ 250 MHz, > 50 dB @ 400 - 3000 MHz .; Maximum Carrying Power: 1 W (30 dBm). Interface: SMA-M, SMA-F.; Frequency Response Diagram: blue-green line is S21, brown line is S11, swept frequency range: 0.1-1000 MHz; purple line is S21, swept frequency range: 0.1-3000 MHz. vertical scales are 10 dB per cell.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
JMT Flat Passband 9th Step Low Pass Filter SMA Connector Female to Male Interface Discrete LC Components Small
Size Features: Small size, flat passband, high out-of-band rejection
Applications: Laboratory applications. Other highly selective applications.
Impedance: 50 Ohms.
200Hz Insertion Loss: <= 1.5 dB @ <200 MHz > 50 dB @ 350 - 3000 MHz 250MHz
Insertion Loss: <= 1.0 dB @ <200 MHz <= 2.0 dB @ 250 MHz > 50 dB @ 400 - 3000
MHz Maximum Carrying Power: 1 W (30 dBm)
Interface: SMA-M, SMA-F

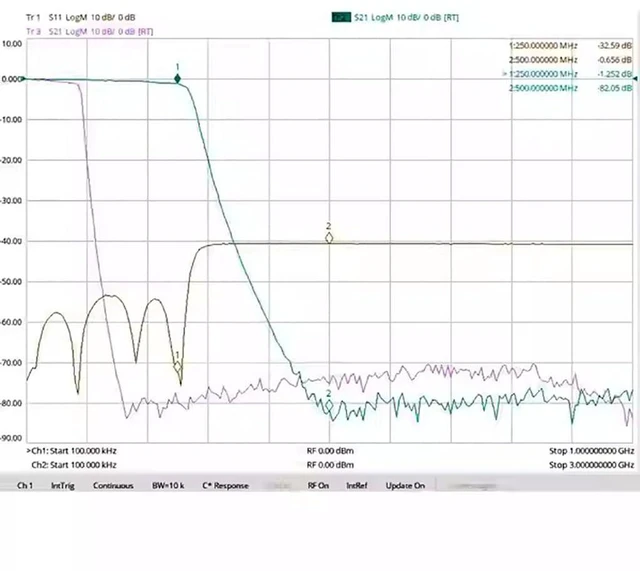

Frequency Response Diagram: blue-green line is S21, brown line is S11, swept
frequency range: 0.1 -1000 MHz; purple line is S21, swept
frequency range: 0.1 -3000 MHz. vertical scales are 10 dB per cell.
Size Features: Small size, flat passband, high out-of-band rejection
Applications: Laboratory applications. Other highly selective applications.
Impedance: 50 Ohms.
200Hz Insertion Loss: <= 1.5 dB @ <200 MHz > 50 dB @ 350 - 3000 MHz 250MHz
Insertion Loss: <= 1.0 dB @ <200 MHz <= 2.0 dB @ 250 MHz > 50 dB @ 400 - 3000
MHz Maximum Carrying Power: 1 W (30 dBm)
Interface: SMA-M, SMA-F
Frequency Response Diagram: blue-green line is S21, brown line is S11, swept
frequency range: 0.1 -1000 MHz; purple line is S21, swept
frequency range: 0.1 -3000 MHz. vertical scales are 10 dB per cell.
