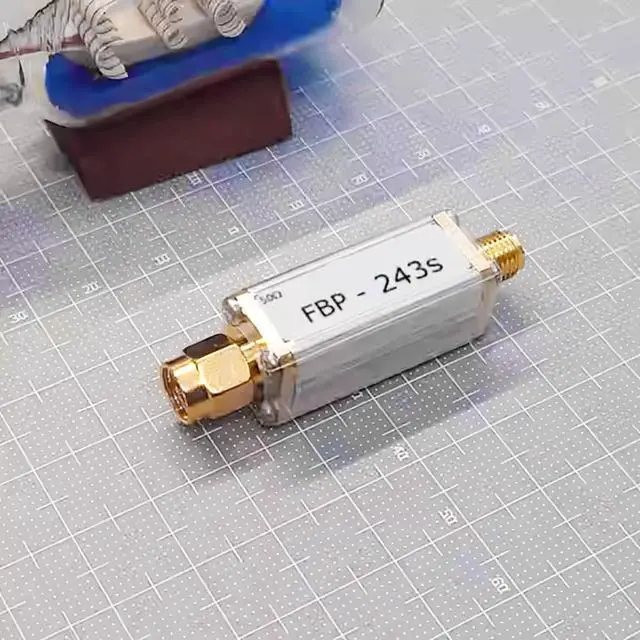

    FBP-243s 243.95MHz Saw Bandpass Filter Centre Frequency 300KHz with SMA Connector for Aviation Emergency Band

    Be the first to review this product...
    • FBP-243s Applications: 243.95MHz aviation emergency band receiver.; Impedance: 50 Ohms. Centre frequency / 1 dB bandwidth: 244.1 MHz / 300 kHz.; In-band insertion loss: <= 4.5 dB. 3dB Passband: 243.85 ~ 244.35 MHz.; Maximum Carrying Power: 50 m W (17 dBm). Interface: SMA-M, SMA-F.; Frequency Response Diagram: Sweep centre frequency: 244.1 MHz; yellow-brown line is S21, Sweep width: 488 MHz; blue-green line is S21, Sweep width: 5 MHz; vertical scales are 10 dBm per cell.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now
    JMT FBP-243s 243.95MH z SAW Bandpass Filter Centre Frequency 300KHz with SMA Connector for Aviation Emergency
    Band Features: Low insertion loss, small size, using imported SAW chip
    Applications: 243.95MH z aviation emergency band receiver
    Model: FBP-243s
    Impedance: 50 Ohms Centre frequency / 1 dB bandwidth: 244.1 MHz / 300 kHz
    In-band insertion loss: <= 4.5 dB 3dB
    Passband: 243.85 ~ 244.35
    MHz Maximum Carrying Power: 50 mW (17 dBm)

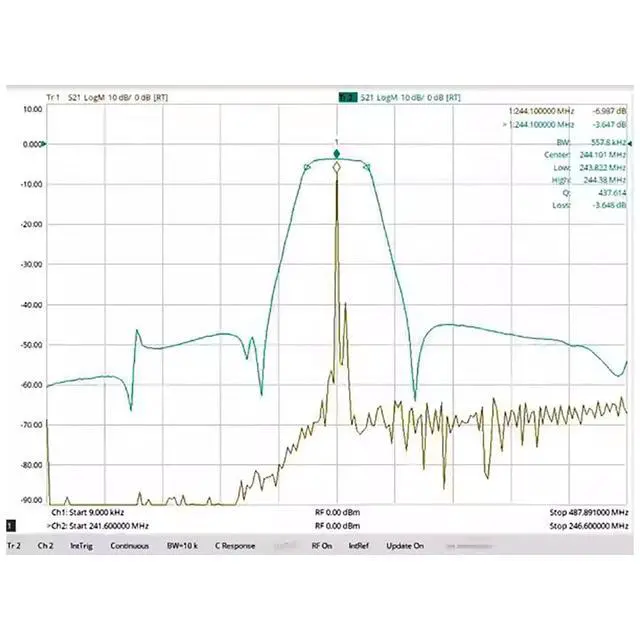

    Interface: SMA-M, SMA-F Frequency Response Diagram
    Sweep centre frequency: 244.1 MHz; yellow-brown line is S21,
    Sweep width: 488 MHz; blue-green line is S21,
    Sweep width: 5 MHz; vertical scales are 10 dBm per cell.
