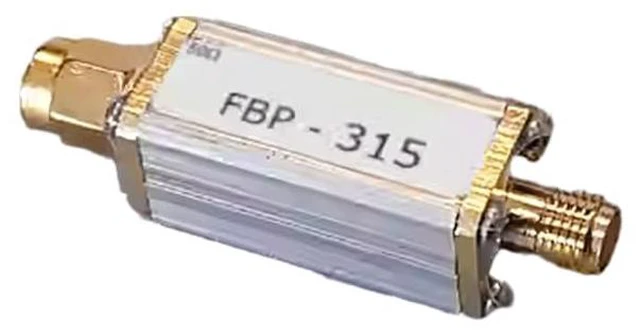

FBP-315 (300~346) 315MHz Bandpass Filter Ultra Compact Size 37 dBm with SMA Connector
Limited time offer, ends 09/06 By GearZap
- FBP-315 Applications:300 to 346 MHz (covering 315 MHz) For use in VTX receivers, laboratories and other highly selective.; Impedance: 50 Ohms. Centre frequency: 323 MHz. Centre frequency insertion loss: <= 3.5 dB @ 323 MHz .; 3 dB bandwidth: 290 to 360 MHz. 30 dB bandwidth: 250 to 440 MHz. Greater than 50 dB Bandwidth: DC to 200 MHz & 600 to 2000 MHz.; Maximum Carrying Power: 5 W (37 dBm). Interface: SMA-M, SMA-F.; Frequency Response Graph: Blue-green line is S21, Yellow-brown line is S11, Sweep range: 0.1-800 MHz, Purple line is S21, Sweep range: 0.1-2000 MHz, Vertical scale is 10 dB per cell, 3 dB bandwidth is marked on the graph.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
JMT FBP-315 (300~346) 315MHz Bandpass Filter Ultra Compact Size 37 dBm with SMA
Connector Features: Ultra small size, low insertion loss, excellent selectivity, high out-of-band rejection, high power handling
Applications: 300 to 346 MHz (covering 315 MHz) For use in VTX receivers, laboratories and other highly selective applications.
Model: FBP-315
Impedance: 50
Ohms Centre frequency: 323
MHz Centre frequency insertion loss: <= 3.5 dB @ 323
MHz 3 dB bandwidth: 290 to 360
MHz 30 dB bandwidth: 250 to 440 MHz Greater than 50 dB
Bandwidth: DC to 200 MHz & 600 to 2000
MHz Maximum Carrying Power: 5 W (37 dBm)

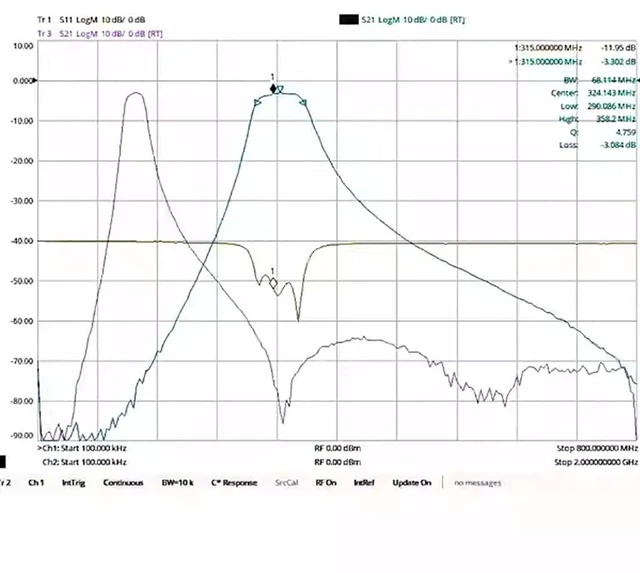

Interface: SMA-M, SMA-F Frequency Response Graph Blue-green line is S21, Yellow-brown line is S11,
Sweep range: 0.1 -800 MHz, Purple line is S21,
Sweep range: 0.1 -2000 MHz, Vertical scale is 10 dB per cell, 3 dB bandwidth is marked on the graph
Connector Features: Ultra small size, low insertion loss, excellent selectivity, high out-of-band rejection, high power handling
Applications: 300 to 346 MHz (covering 315 MHz) For use in VTX receivers, laboratories and other highly selective applications.
Model: FBP-315
Impedance: 50
Ohms Centre frequency: 323
MHz Centre frequency insertion loss: <= 3.5 dB @ 323
MHz 3 dB bandwidth: 290 to 360
MHz 30 dB bandwidth: 250 to 440 MHz Greater than 50 dB
Bandwidth: DC to 200 MHz & 600 to 2000
MHz Maximum Carrying Power: 5 W (37 dBm)
Interface: SMA-M, SMA-F Frequency Response Graph Blue-green line is S21, Yellow-brown line is S11,
Sweep range: 0.1 -800 MHz, Purple line is S21,
Sweep range: 0.1 -2000 MHz, Vertical scale is 10 dB per cell, 3 dB bandwidth is marked on the graph
