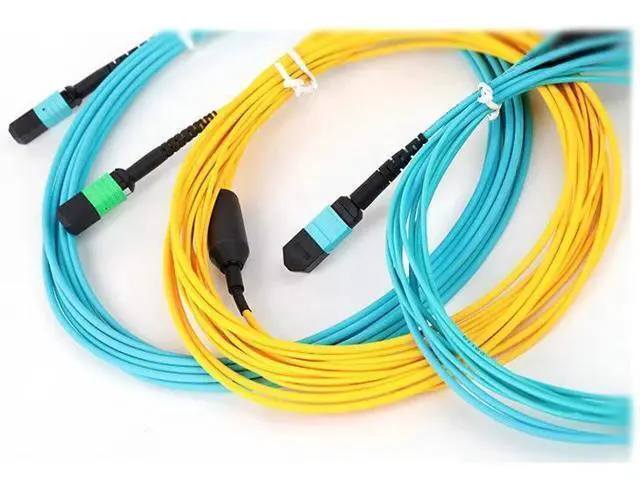

professional manufacturer fiber optic mpo patch cord 12 core male to male mpo connector single mode fiber cable

professional manufacturer fiber optic mpo patch cord 12 core male to male mpo connector single mode fiber cable Product Description MPO cable assemblies are with 12 core MPO connector male to male. cable type OS1, the cable is widely used for cable expanding in the data center. Features 12 core cable connection OS1 fiber optic cable Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage

Specifications

MTP/MPO Connector Fiber ModeSingle ModeMultimode Insertion Loss (dB) 0.70 (Standard) 0.70 (Standard) 0.35 (Elite) 0.35 (Elite) Return Loss (dB) 6020 Durability (dB) 0.2 (500 times mating) Tensile Strength (kgf) 10 Working Temperature ()-20 ~ +70 LC/SC/FC/ST/E2000 Connector Fiber ModeSingle ModeMultimode Insertion Loss (dB) 0.300.

30 Return Loss (dB) 6020 Durability (dB) 0.2 500 times mating Tensile Strength (kgf) 10 Working Temperature ()-20 ~ +70 Fiber Specification Fiber TypeMultimodeSingle Mode OM1OM2OM3OM4G. 652G. 657 Core Diameter (um) 62.5 /12550/12550/12550/1259/1259/125 Wavelengths (nm) 850/1300850/1300850/1300850/13001310/15501310/1550 Max. Attenuation (dB/km) 3.5 / 1.53. 5/ 1.53. 5/ 1.53. 5/ 1.50.
