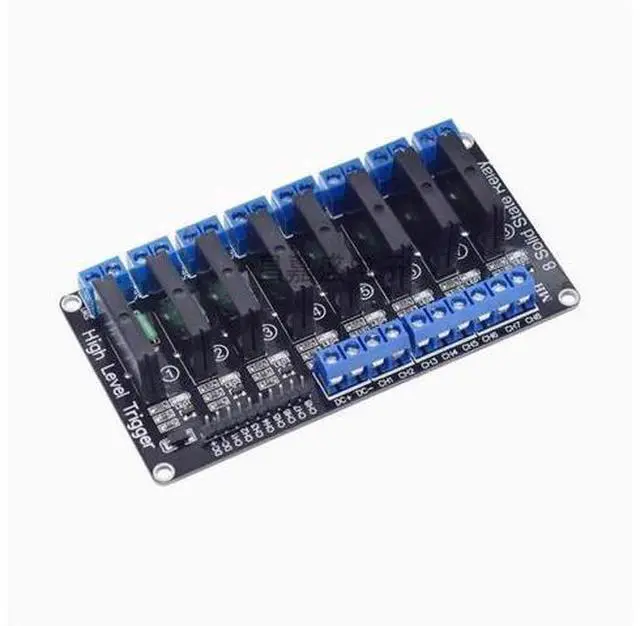

5V low-level solid state relay module 8 solid state relays with fuses 250V2A
Limited time offer, ends 08/08 By OUTDOORMAX GEAR
- Product Introduction:; 1, Omron 5V solid state relay 240V 2A, output with resistance fuse 240V 2A.; 2, Input power :5V DC (160MA); 3, input control signal voltage :(0-2.5V state low level relay 0N)(3.3-5V state high level relay 0FF); Module interface:; DC+: Connect to the positive terminal of the power supply (supply according to the relay voltage); DC-: connects to the negative terminal of the power supply; CH: Relay module signal trigger terminal (low level trigger effective)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Introduction: 1, Omron 5V solid state relay 240V 2A, output with resistance fuse 240V 2A.
2,
Input power: 5V DC (160MA) 3, input
control signal voltage: (0- 2.5V state low level relay 0N)( 3.3 -5V state high level relay 0FF)
Module interface:
DC+: Connect to the positive terminal of the power supply (supply according to the relay voltage)
DC-: connects to the negative terminal of the power supply
CH: Relay module signal trigger terminal (low level trigger effective)
2,
Input power: 5V DC (160MA) 3, input
control signal voltage: (0- 2.5V state low level relay 0N)( 3.3 -5V state high level relay 0FF)
Module interface:
DC+: Connect to the positive terminal of the power supply (supply according to the relay voltage)
DC-: connects to the negative terminal of the power supply
CH: Relay module signal trigger terminal (low level trigger effective)
