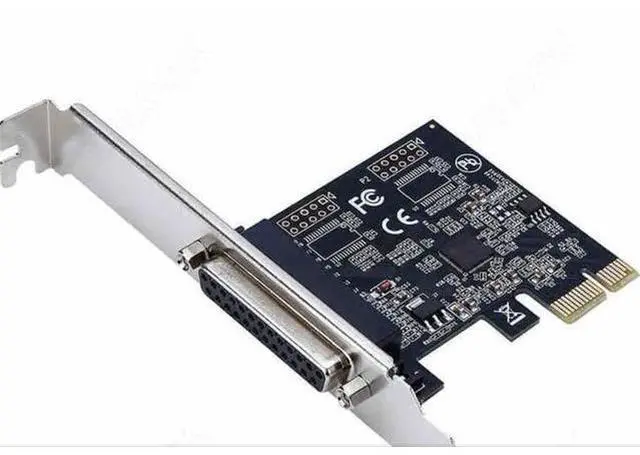

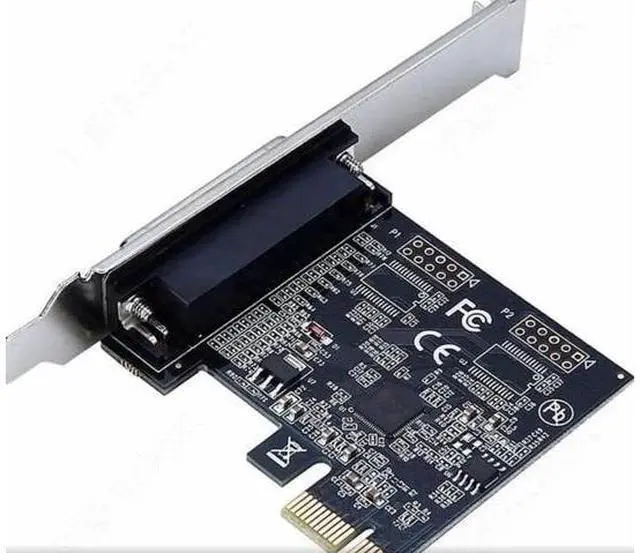

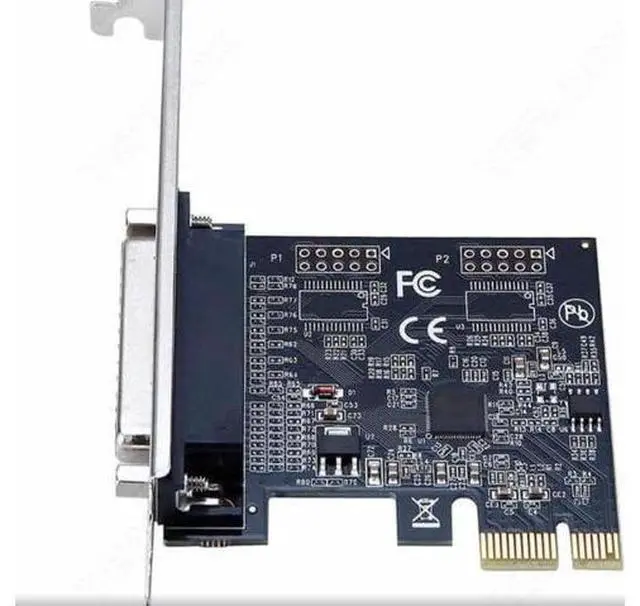

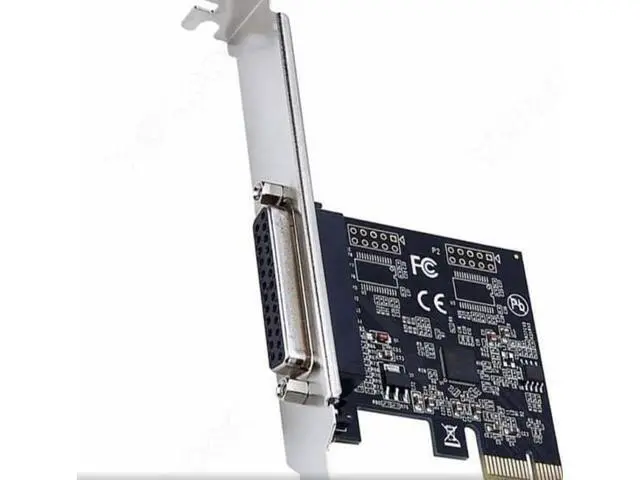

PCIe 1x DB25 Parallel Port LPT Printer PCI-E To Parallel Port Expaon Card Adapter Converter Chipset ASIX AX99100 for Desktop

PCIe 1x DB25 Parallel Port LPT Printer PCI-E To Parallel Port Expansion Card Adapter Converter Chipset ASIX AX99100 for
Desktop Description: Model
number: TXB072
Chipset: ASIX/AX99100
Port number: 1* DB25
Parallel port Interface: PCI Express 1x slot
Dimension: 65.2 *60*14mm Support OS Windows*10 (3264), 8/ 8.1 (3264), 7 (3264), Vista (3264), XP (3264), 2000 Windows Server 2012, 2008 R2, 2003 (3264) Mac OS°10. x(Intel based, tested up to 10.9 ) Linux 2.4. x and later(Tested up to 3.5 )
Environment Operating Temperature: 0-50
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0-80
Relative Humidity: 5%-90%(non-condensing) Features Accord with PCI-Express 1.0 a standard PCI-Express rate 2.5 Gb/s and full duplex channel One SPP, PS2, EPP, ECP Compatible IEEE 1284 printer ports High speed data transfer rate as high as 1.5 MBMbyte/SEC Built-in 256 bytes of FIFO Extend one DB25 parallel in PC with PCl-Express slot Parallel port transmision rate as high as 1.5 Mbyte/SEC Compatable with IEEE 1284 printer ports Supports plug and play
More Features: PCI Express o Single-lane (X1) PCI Express End-point Controller with PHY integrated o Compliant with PCI Express 2.0 Gen 1 o Compliant with PCI Express card specifications o Compliant with PCI Power Management 1.2 o Supports four PCI Express functions o Supports both legacy and MSI Interrupt o Supports ASPM Power Management Parallel Port o Compatible with IEEE 1284-SPP/Byte/ECP Mode SPI Interface o Programmable SPI c
