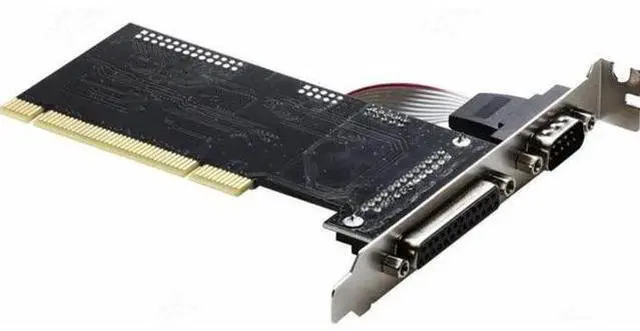

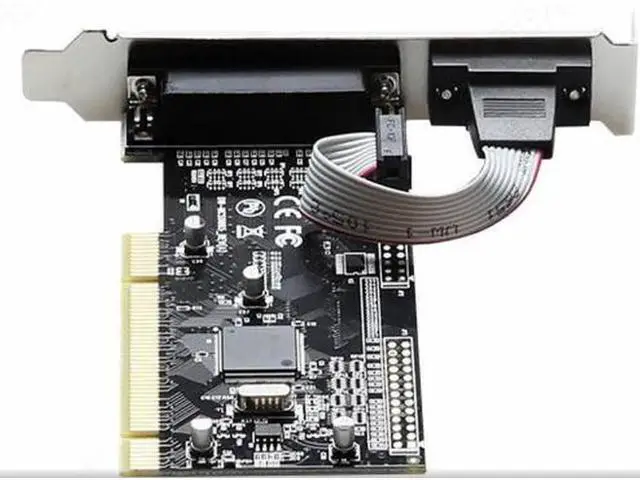

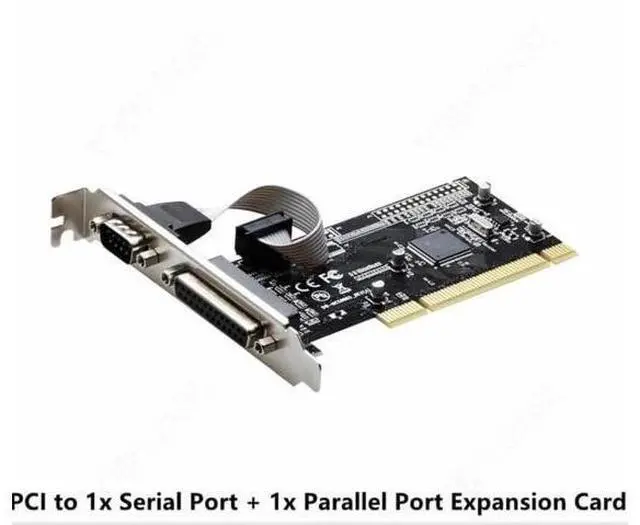

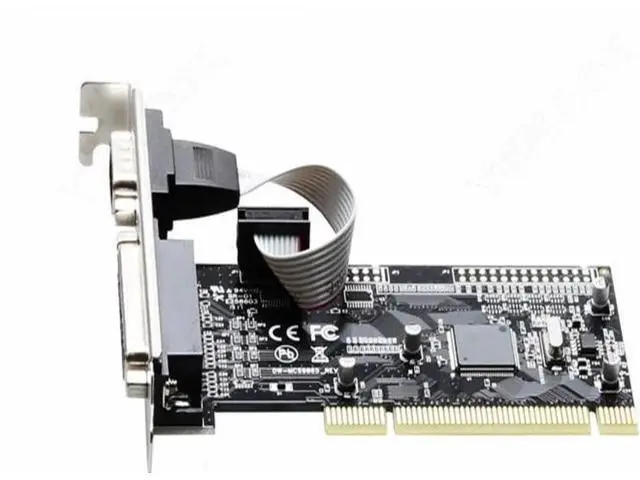

PCI to 1x Serial Port + 1x Parallel Port PCI Single Port DB9+DB25 RS232 COM Expaon Card Riser Card Adapter Chip ASIX/AX9865

PCI to 1x Serial Port + 1x Parallel Port PCI Single Port DB9+DB25 RS232 COM Expansion Card Riser Card Adapter Chip ASIX/AX9865 Description: Model
number: DW-TXB086
Chipset: ASIX/AX9865
Port number: 1* Serial port, 1*Parallel port
Interface: PCIx slot
Dimension: 120*115*55mm Support OS Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server® 2012, 2008 R2, 2003(32/64) Mac OS® 10. x (Intel based, tested up to 10.9 ) Linux 2.4. x and later (Tested up to 3.5 )
Environment: Operating
Temperature: 0 -50
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0-80
Relative Humidity: 5%-90%(non-condensing) Features
Serial Port: Supports RS232, RS485 & RS422 modes Bi-directional speeds from 50 bps to 16 Mbps/Port Full Serial modem control Supports Hardware, Software flow control 5, 6, 7, 8 and 9-bit Serial format support Even, Odd, None, space & Mark parity supported Custom BAUD Rates supported with external clock or by programming internal PLL On Chip 256 Byte depth FIF Os in Transmit, Receive path of each Serial Port Supports remote wake up and power management features Serial Port transceiver shutdown support Supports Slow IrDA on all Serial Ports IEEE1284
Parallel Port: IEEE 1284 compliant parallel port interface, supporting SPP/PS2/EPP/ECP modes and centronics interface Faster data rates up to 1.5M bps for parallel port
