AMG8833 IR 8x8 Infrared Cameras Thermal Imager, Array Temperature Camera Imaging Sensors Module I2C 3-5V for Raspberry Pi Arduino
- Parameters: Power supply: 3-5v. Accuracy is +- 2.5°C (4.5°F). It can detect humans from up to 7 meters (23) feet away. Maximum frame rate is 10Hz. AMG8833 thermal imaging camera sensor temperature measurement range 0°C to 80°C (32°F to 176°F). | 8x8 Array infrared heat sensors: This AMG8833 Infrared Thermal Imager sensor is an 8x8 array of infrared heat sensors. When connected to your microcontroller (or Raspberry Pi) it will return a set of 64 individual infrared temperature readings over I2C. It's like those fancy thermal imagers, but compact and simple for easy integration | Support I2C: The sensor only supports I2C, and has a configurable interrupt pin that can trigger when any individual pixel goes above or below a threshold you set. Perfect for creating your own human detector or mini thermal imager | Create own imager: AMG8833 IR 8*8 thermal imager array temperature sensor module Simply supply power and connect the digital communication pins (I2C) to your motherboard, ESP8266, Raspberry Pi, etc | Packing list: AMG8833 IR 8x8 Infrared Cameras Thermal Imager *1, Instruction *1
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
_

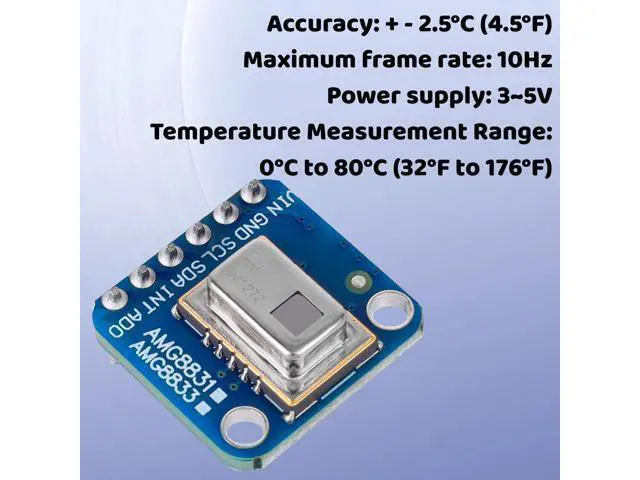

Parameters: Power
supply: 3-5v. Accuracy is +- 2.5 °C ( 4.5 °F). It can detect humans from up to 7 meters (23) feet away. Maximum frame rate is 10Hz. AMG8833 thermal imaging camera sensor temperature measurement range 0°C to 80°C (32°F to 176°F).
_ 8x8 Array infrared heat sensors: This AMG8833 Infrared Thermal Imager sensor is an 8x8 array of infrared heat sensors. When connected to your microcontroller (or Raspberry Pi) it will return a set of 64 individual infrared temperature readings over I2C. It's like those fancy thermal imagers, but compact and simple for easy integration
_ Support I2C: The sensor only supports I2C, and has a configurable interrupt pin that can trigger when any individual pixel goes above or below a threshold you set. Perfect for creating your own human detector or mini thermal imager

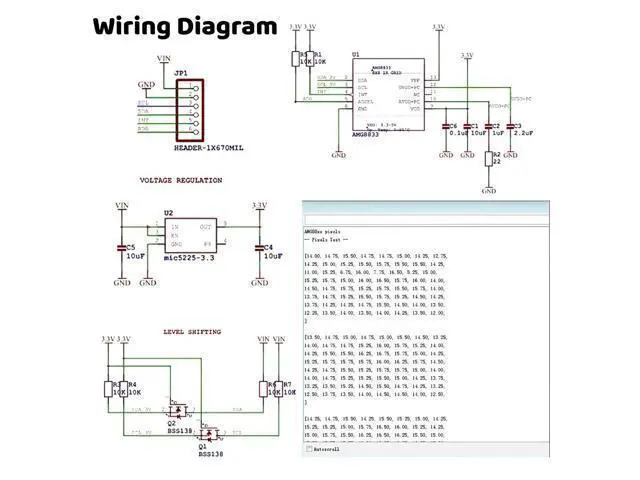

_ Create own imager: AMG8833 IR 8*8 thermal imager array temperature sensor module Simply supply power and connect the digital communication pins (I2C) to your motherboard, ESP8266, Raspberry Pi, etc
_ Packing list: AMG8833 IR 8x8 Infrared Cameras Thermal Imager *1, Instruction *1
Parameters: Power
supply: 3-5v. Accuracy is +- 2.5 °C ( 4.5 °F). It can detect humans from up to 7 meters (23) feet away. Maximum frame rate is 10Hz. AMG8833 thermal imaging camera sensor temperature measurement range 0°C to 80°C (32°F to 176°F).
_ 8x8 Array infrared heat sensors: This AMG8833 Infrared Thermal Imager sensor is an 8x8 array of infrared heat sensors. When connected to your microcontroller (or Raspberry Pi) it will return a set of 64 individual infrared temperature readings over I2C. It's like those fancy thermal imagers, but compact and simple for easy integration
_ Support I2C: The sensor only supports I2C, and has a configurable interrupt pin that can trigger when any individual pixel goes above or below a threshold you set. Perfect for creating your own human detector or mini thermal imager
_ Create own imager: AMG8833 IR 8*8 thermal imager array temperature sensor module Simply supply power and connect the digital communication pins (I2C) to your motherboard, ESP8266, Raspberry Pi, etc
_ Packing list: AMG8833 IR 8x8 Infrared Cameras Thermal Imager *1, Instruction *1
