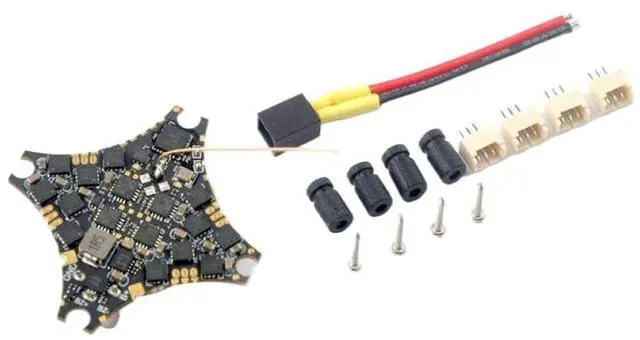

SuperX HD ELRS 1-2S AIO Flight Controller 12A ESC UART ELRS V3 Compatible With Mobula6 HDZero Moblite7 Walksnail(2 piece)
- Model compatibility with Mobula6 HDZero Moblite7 and Walksnail for integration into existing FPV setups; Integrated ELRS V3 UART connectivity ensures long-range control with minimal latency; Compact 1-2S AIO design combines flight controller and 12A ESC for lightweight builds ideal for drones; -efficiency power system supports agile flight performance in tight racing and freestyle environments; Engineered for HD video transmission platforms to maintain stability during -speed maneuvers
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Quantity: 1 pcs
Wheelbase: Screws
Size: 19mm x 17.5 mm
Model Number: SuperX HD ELRS For
Vehicle Type: Airplanes
Tool Supplies: SuperX HD ELRS 1-2S AIO Flight Controller Four-wheel
Drive Attributes: 12A ESC UART ELRS V3
Remote Control Peripherals/Devices: Flight
Controller Upgrade Parts/Accessories: Flight Controller RC Parts & Radio Systems Material: Metal
Flight Controller: SuperX HD ELRS Betaflight 4.4. 2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU: STM32F411CEU6 (100MHz, 512K
FLASH) Gyroscope: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S LiPo/LiPo HV input (DC 2.8V ~ 8.7V ), supports 1S input only 12A (each) Blheli_S 4in1 ESC, Dshot300 ready UART ELRS receiver, ELRS v 3.0 ready, supports WIFI and pass-through firmware update Bluejay ESC firmware ready 5V 1.5A (Max) BEC voltage detection current meter
No betaflight analog osd chip: enameled copper wire Onboard 4in1 ESC
Power supply: 1-2S
LiPo/LiPo HV Current: 12A continuous, peak 15A (3 seconds) Supports ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 Bluejay, 0.19, 48kHz
Default protocol: DSHOT300 Onboard UART ExpressLRS 2.4GH z
Receiver RF Frequency: 2.4GH
z: enameled copper wire, 31mm length Telemetry output Power This item is a compatible alternative. Use of brand identifiers is limited to showing which models it fits.
Wheelbase: Screws
Size: 19mm x 17.5 mm
Model Number: SuperX HD ELRS For
Vehicle Type: Airplanes
Tool Supplies: SuperX HD ELRS 1-2S AIO Flight Controller Four-wheel
Drive Attributes: 12A ESC UART ELRS V3
Remote Control Peripherals/Devices: Flight
Controller Upgrade Parts/Accessories: Flight Controller RC Parts & Radio Systems Material: Metal
Flight Controller: SuperX HD ELRS Betaflight 4.4. 2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU: STM32F411CEU6 (100MHz, 512K
FLASH) Gyroscope: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S LiPo/LiPo HV input (DC 2.8V ~ 8.7V ), supports 1S input only 12A (each) Blheli_S 4in1 ESC, Dshot300 ready UART ELRS receiver, ELRS v 3.0 ready, supports WIFI and pass-through firmware update Bluejay ESC firmware ready 5V 1.5A (Max) BEC voltage detection current meter
No betaflight analog osd chip: enameled copper wire Onboard 4in1 ESC
Power supply: 1-2S
LiPo/LiPo HV Current: 12A continuous, peak 15A (3 seconds) Supports ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 Bluejay, 0.19, 48kHz
Default protocol: DSHOT300 Onboard UART ExpressLRS 2.4GH z
Receiver RF Frequency: 2.4GH
z: enameled copper wire, 31mm length Telemetry output Power This item is a compatible alternative. Use of brand identifiers is limited to showing which models it fits.
