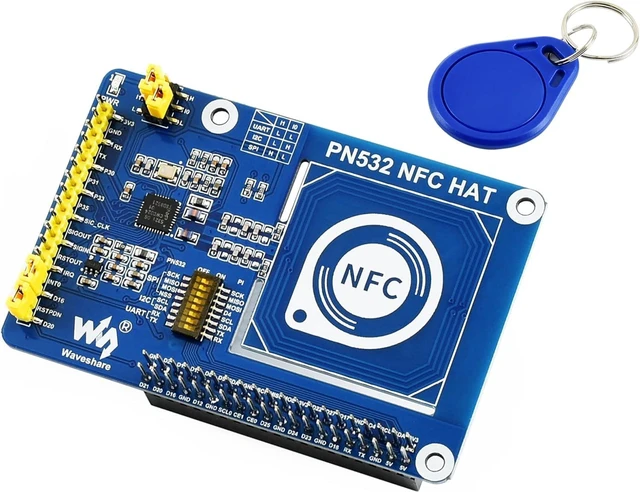

PN532 NFC HAT Compatible with Raspberry Pi 5/ 4B/3B+/3B/2B/A+/Zero W/WH/Zero 2 W/Pico/Pico 2W, PN532 Chip, Support Multi NFC/RFID Cards, 13.56 MHz Band, I2C, SPI, and UART Interfaces

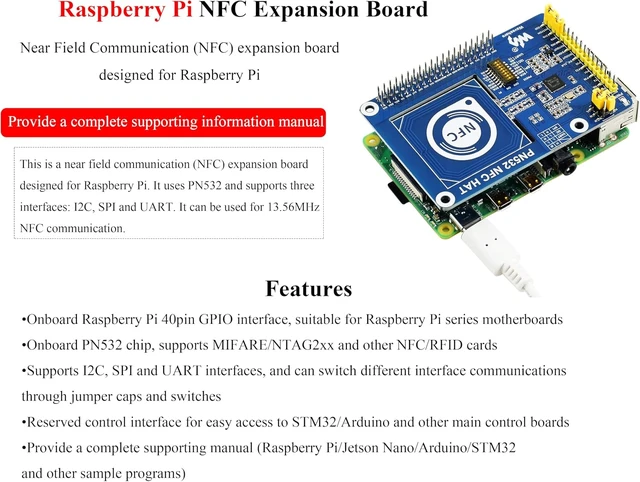

- This is PN532 NFC HAT based on PN532 operating in the 13.56MHz frequency range. NFC (Near Field Communication) is a wire-less technology that allows contactless point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control systems, smart tickets, meal cards, etc. Based on the popular NFC controller PN532 with multi-interface options, this HAT will easily enable NFC function for RPi.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
This is PN532 NFC HAT based on PN532 operating in the 13.56MHz frequency range. NFC (Near Field Communication) is a wire-less technology that allows contactless point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control systems, smart tickets, meal cards, etc. Based on the popular NFC controller PN532 with multi-interface options, this HAT will easily enable NFC function for RPi.

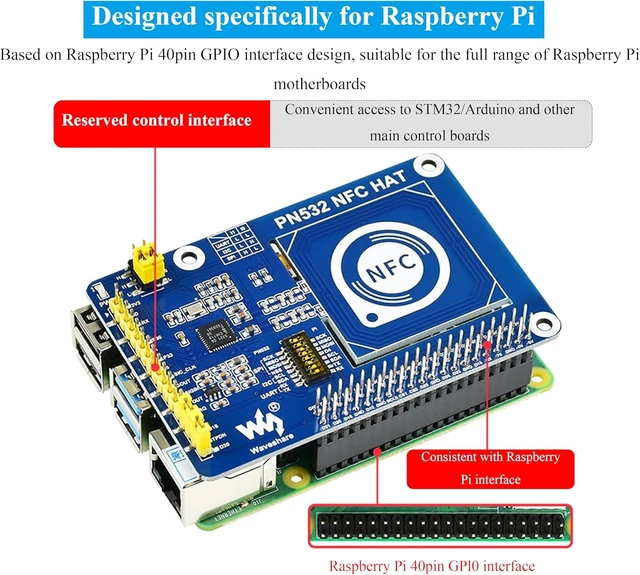

Standard Pi 40PIN GPIO extension header, Compatible with Raspberry Pi series boards ( like Pi 5/ 4B/3B+/3B/2B/A+/Zero W/WH/Zero 2 W/ Pico/Pico 2W, etc.)

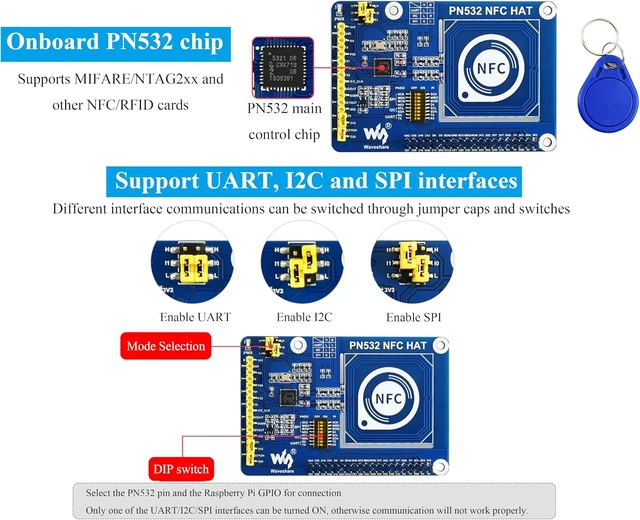

Onboard PN532 chip, supports various NFC/RFID cards like MIFARE/NTAG2xx, etc. Breakout control pins, for easily connecting with host boards like STM32/Ardu.

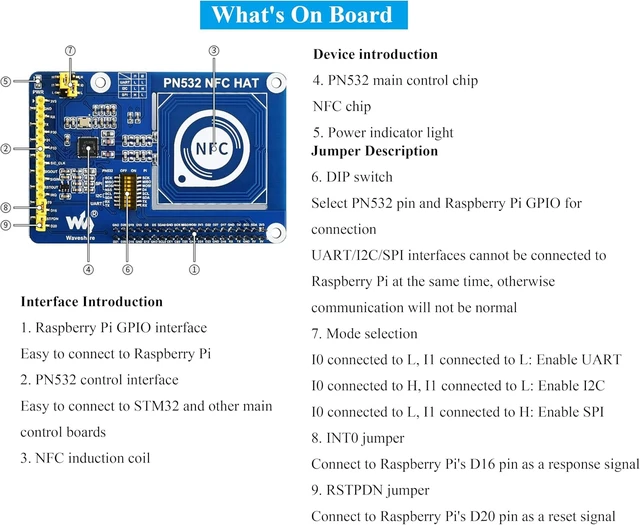

Three interface options: I2C, SPI, and UART, configured via jumpers and switches.

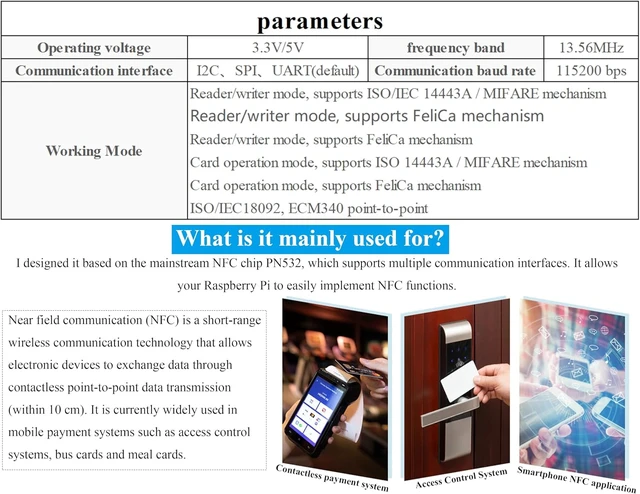

Operating voltage: 3.3V/5V. Factory communication baud rate: 115200 bps. The NFC module operates in the 13.56 MHz band.
Standard Pi 40PIN GPIO extension header, Compatible with Raspberry Pi series boards ( like Pi 5/ 4B/3B+/3B/2B/A+/Zero W/WH/Zero 2 W/ Pico/Pico 2W, etc.)
Onboard PN532 chip, supports various NFC/RFID cards like MIFARE/NTAG2xx, etc. Breakout control pins, for easily connecting with host boards like STM32/Ardu.
Three interface options: I2C, SPI, and UART, configured via jumpers and switches.
Operating voltage: 3.3V/5V. Factory communication baud rate: 115200 bps. The NFC module operates in the 13.56 MHz band.
