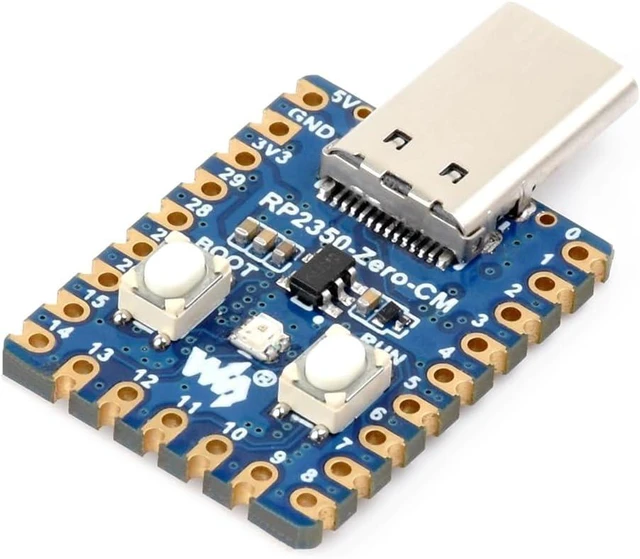

RP2350 Zero Board Type-C Male Port, Adapting 29 GPIO Pins

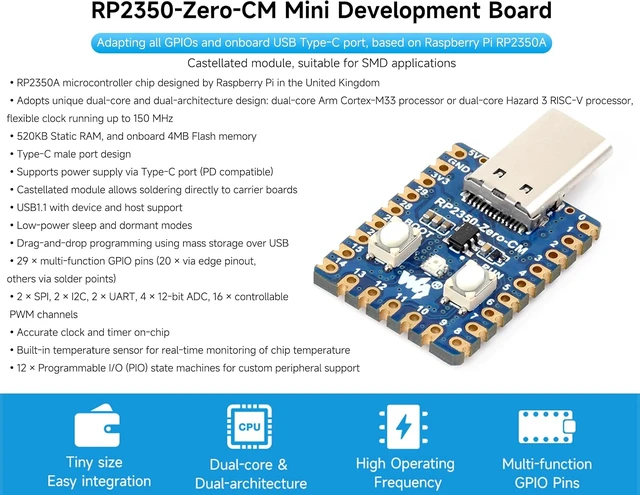

- RP2350-Zero-CM Mini Development Board. Adapting all GPIOs 29 × multi-function GPIO pins , onboard USB Type-C port, based on Raspberry Pi RP2350A. Castellated module, suitable for SMD applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
RP2350-Zero-CM Mini Development Board. Adapting all GPIOs 29 × multi-function GPIO pins , onboard USB Type-C port, based on Raspberry Pi RP2350A. Castellated module, suitable for SMD applications.
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor or dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz.
520KB Static RAM, and onboard 4MB Flash memory. Supports power supply via Type-C port (PD compatible). Castellated module allows soldering directly to carrier boards.
USB1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB.

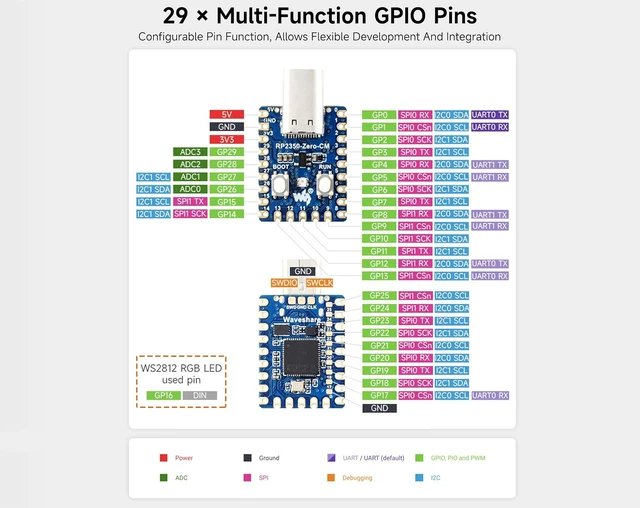

29 × multi-function GPIO pins (20 × via edge pinout, others via solder points). 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels.
Accurate clock and timer on-chip. Built-in temperature sensor for real-time monitoring of chip temperature. 12 × Programmable I/O (PIO) state machines for custom peripheral support.
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor or dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz.
520KB Static RAM, and onboard 4MB Flash memory. Supports power supply via Type-C port (PD compatible). Castellated module allows soldering directly to carrier boards.
USB1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB.
29 × multi-function GPIO pins (20 × via edge pinout, others via solder points). 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels.
Accurate clock and timer on-chip. Built-in temperature sensor for real-time monitoring of chip temperature. 12 × Programmable I/O (PIO) state machines for custom peripheral support.
