2PCS CC CV DC 6-40V to 1.2-36V Buck Converter,20A 300W Constant Current, Adjustable Step Down Voltage Regulator, Power Supply Module, with Short Circuit Protection Function
- ANMBEST buck converter input voltage range is DC 6-40V, adjustable output voltage range is DC 1.2-36V, can be used to convert 24v to 12v 5v, adjustable output current range is 0-20A, max output power is 300W. The step down regulator can apply to constant output current.

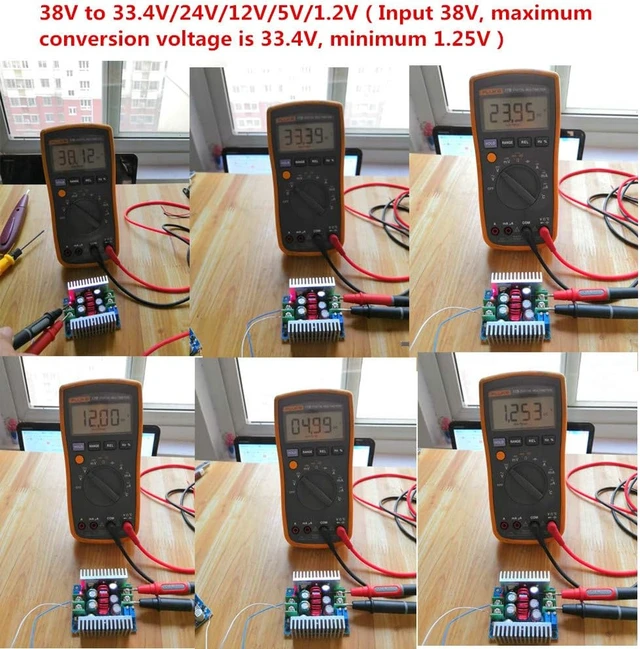

- With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 95%,(measured at 20A, converting 24V to 12V).

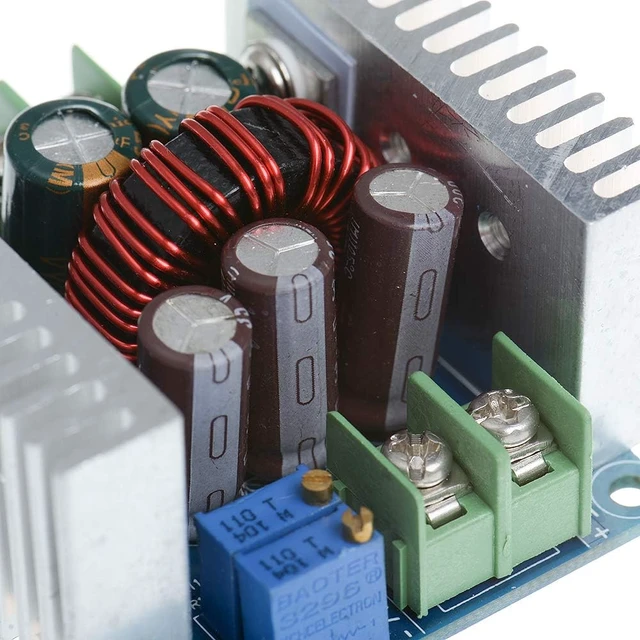

- It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Wiring is convenient with these large current 30A screw terminals.
- The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.
- Application: Motors, audio, monitor, LED car display, air conditioner, fans, solar energy, photovoltaic energy, DVD, LED lights, pumps, industrial equipment appliances, etc.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Technical Specifications:
Input Voltage: 6V to 40V DC (10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A (max.), 15A (suggested)
Efficiency: 95% (24V to 12V, 20A)
Output Ripple: less than 50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery (cannot short circuit for long time)
Size:60×53×27mm / 2.36×2.08×1.06 inch(L * W * H)

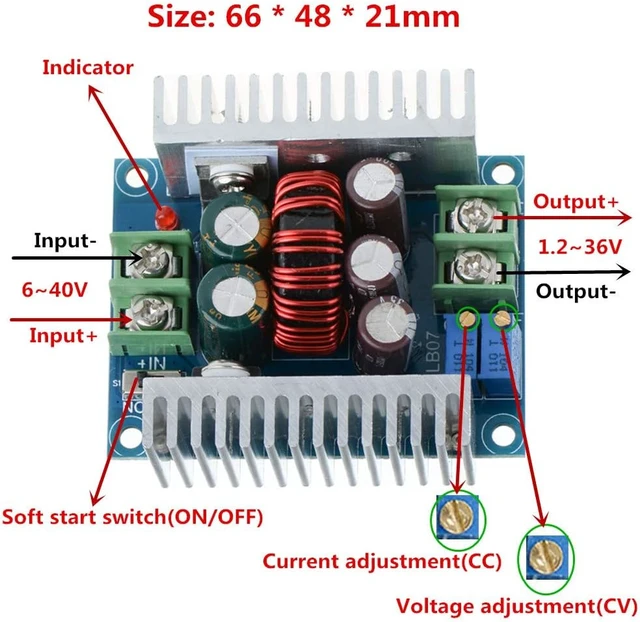

Pins Description:
VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative

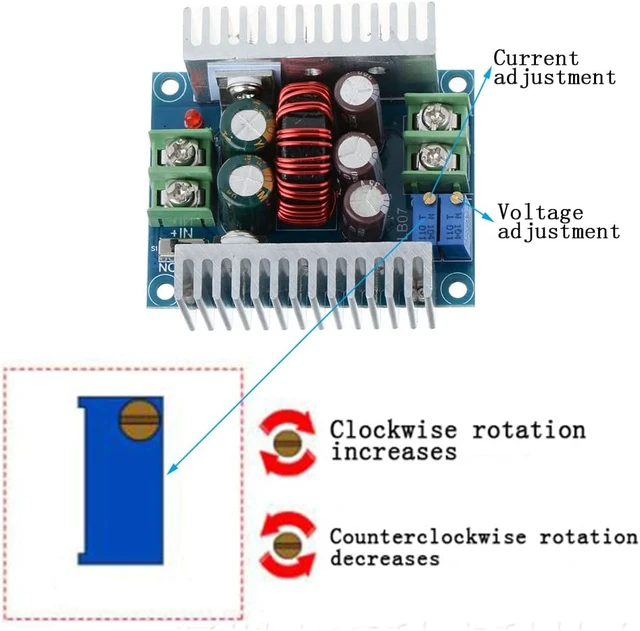

CV: Output voltage adjustment
CC: Output current adjustment
When input and output is common grounded, no-load CV output constant voltage,CC output constant current
Package includes:

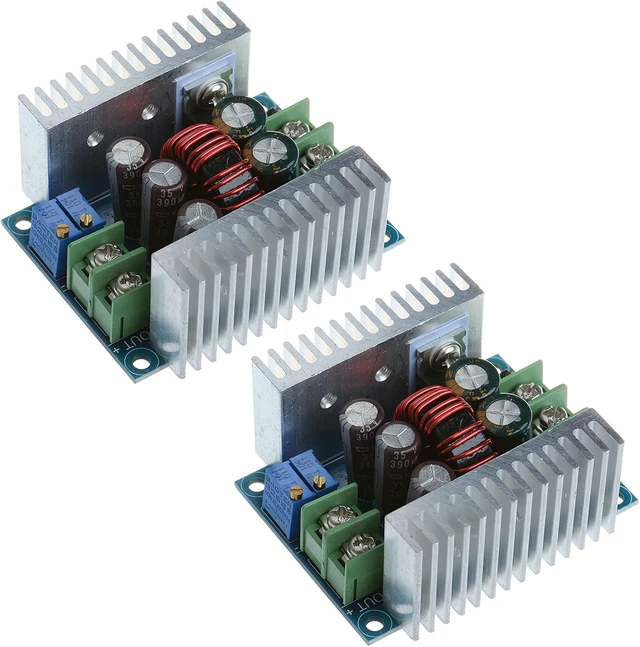

2 X DC DC Buck Converter 300W 20A
