10PCS MAX485 RS485 Transceiver Module TTL Serial to RS-485 Module UART Serial to RS-485 Module, for Arduino Raspberry Pi Industrial-Control
- Long Distance: This low power transceiver module is based on the MAX485 IC to allow serial communication over very long cable runs (up 4000 feet / 1200 meters).
- High Speed: Serial data can be transmitted in both directions (half duplex) at a data rate up to 2.5Mbps.

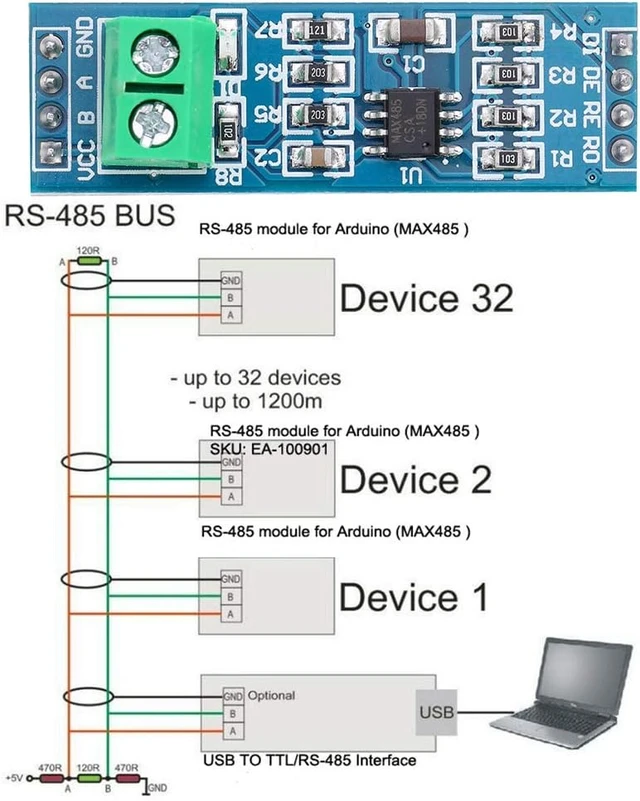

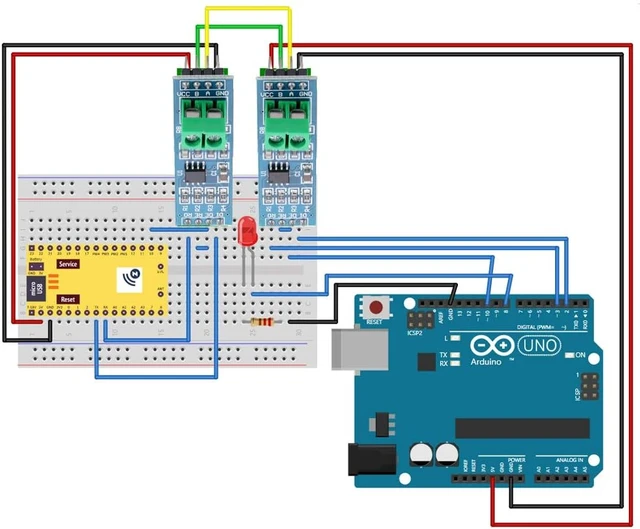

- Multi-Device Communication: It is possible to connect multiple modules together for communication between 2 or more devices(up to 32). For even greater distances two modules can be configured as a repeater.
- EASY TO USE: Data connections to the modules are provided by a standard 0.1" pitch header pins which can also be soldered into standard prototyping PCB and breadboards. Screw terminals provide convention connection to the actual data cable.
- Widely Applications: Applicable to Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

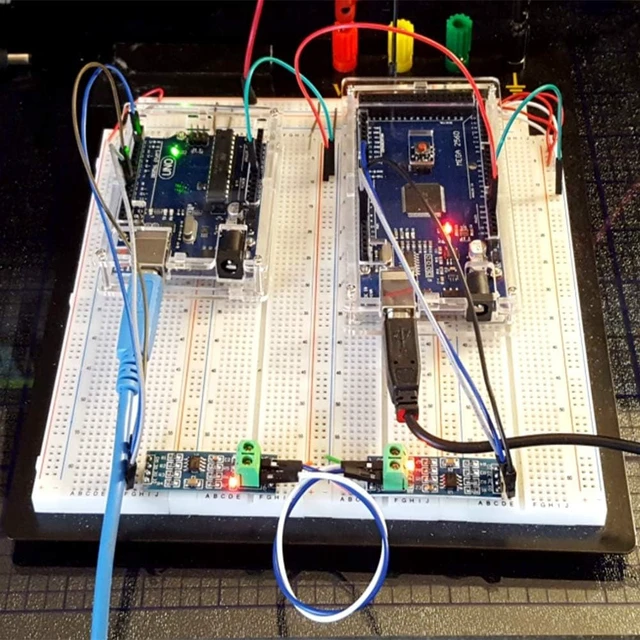

The MAX485 TTL to RS-485 Interface Module allows uCs to use the RS-485 differential signaling for robust long distance serial communications.
Technical Specifications:
Working Voltage: 5V
Main Chip: MAX485
Distances: up to 1200 meters
Speeds: up to 2.5Mbit/Sec
Multi-drop supports: up to 32 devices on same bus
Uses differential signaling for noise immunity

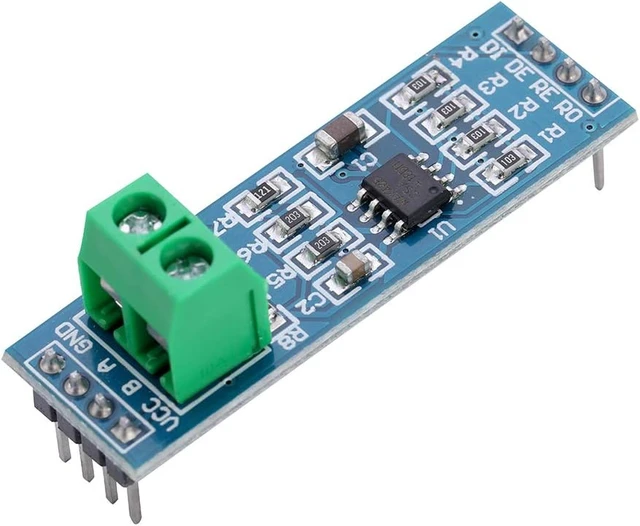

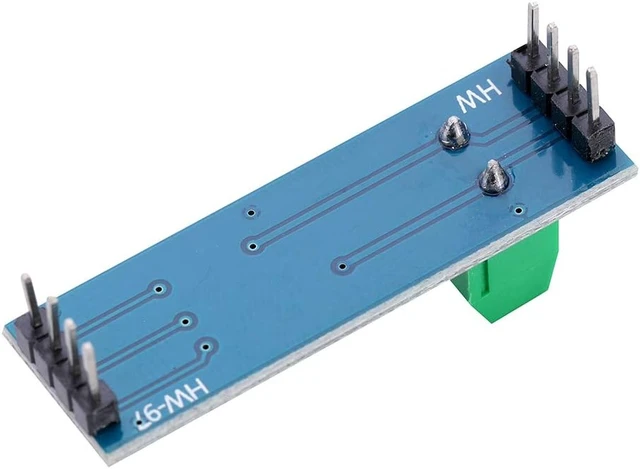

On board 5.08(mm) 2P connector for RS 485 wires
All the pins of the chip are brought out, can be controlled by MCU
Board size: 46mm x 12mm / 1.81x 0.47

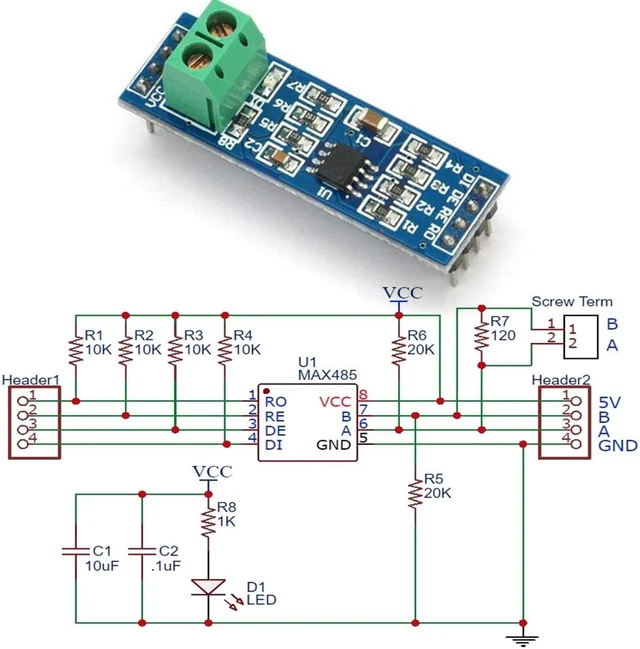

PINOUT:
VCC........5V
A............Non-inverting Receiver Input and No-ninverting Driver Output
B............Inverting Receiver Input and Inverting Driver Output
GND.......0V
R0..........Receiver Output (to Rx pin of micro controller)
RE..........Receiver Output Enable (Low to enable)
DE..........Driver Output Enable (high to enable)
DI...........Driver Input (to Tx pin of micro controller)
Package includes:

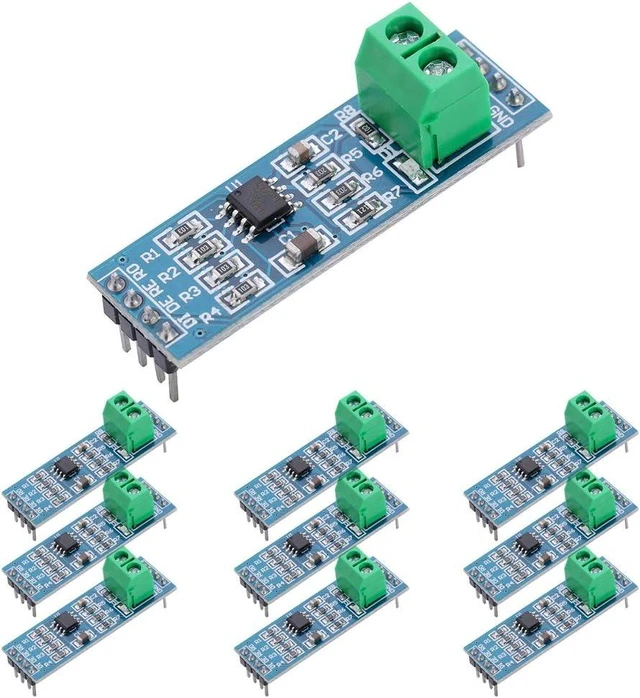

10 x MAX485 TTL to RS-485 Interface Module
