Lesogood 1x2 HDMI Splitter 4K2K HDMI Splitter 1 In 2 Out Selector HDCP Stripper Splitter Power Signal Amplifier

FEATURES:

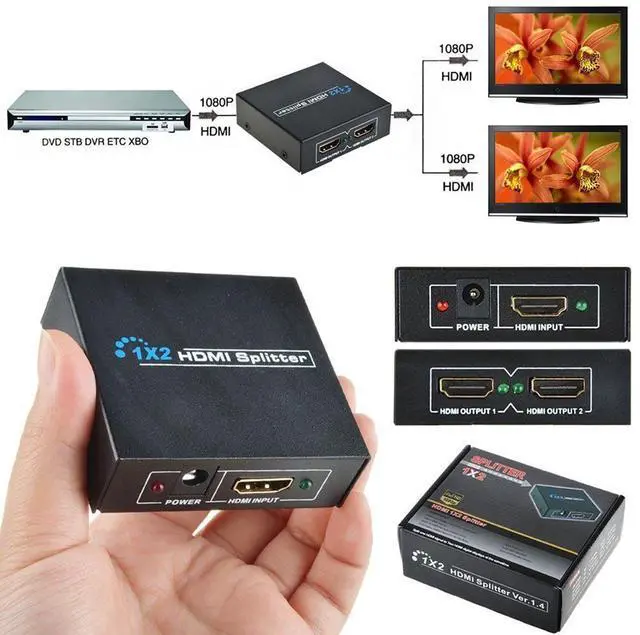

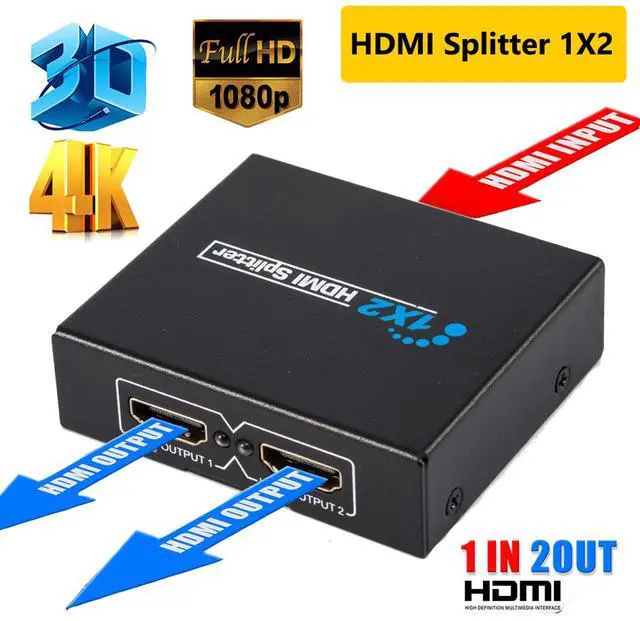

One HDMI 1.3b input signal split to two HDMI 1.3b sink devices

HDCP 1.2 protocol compliant

Support CEC

Support deep color 30bit, 36bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Support signal retiming

Support input up to 15metres AWG26 HDMI 1.3 standard cable length,

output up to 25metres AWG26 cable length

No loss of quality

Installs in minutes

Need DC5V/1A power supply

Specification:

HDMI version: HDMI 1.3b

HDCP version: HDCP1.2

HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format: 24bit/deep color 30bit,36bit

Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth: 225MHz

Max baud rate: 6.75Gbps

Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal: 5Volts p-p (TTL)

Input cable distance: =15m AWG26 HDMI 1.3 standard cable

Output cable distance: =25m AWG26 HDMI 1.3 standard cable

Max working current: 500mA

Power adapter format..Input: AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A

Operating Temperature range: (-15 to +55 degree)

Operating Humidity range: 5 to 90%RH (No Condensation)

Dimension (L x W x H): 86x45x25 (mm)

Weight:125g

Package Included:

1* 1x2 HDMI Splitter

1* 5V Power Adaptor

1* One pc of Manual
