Video of RXH-F5: Over the years, the technology used to create audio amplifiers has grown by leaps and bounds. We consider it our mission to use our expertise in developing the latest technologies and to bring you the absolute best sounding amplifiers on the market at a reasonable price. From its clean, sleek design to its high quality components, you will be amazed at the quality and power that these new Phenom amps offer. The RXH-F5 is a 5 channel high power amplifier with 3, 200 Watts peak output, 1600 Watts RMS output (4 x 150 + 1 x 1000 @ 2 Ohms ). The CEA-2006 compliant rating is 50 x 4 + 1 x 350 @ 4 Ohms and 75 x 4 + 1 x 500 @ 2 ohms <1% THD. Most brands do not use CEA compliant ratings because quite simply they do not want you to be able to compare their amps to others on the market. Over here at Rockville, we want you to be able to compare our amps to any brand on the market. For this reason we are supplying you with multiple ratings.
The CEA compliant rating should be used when matching up or comparing this amplifier to other CEA compliant brands such as Kicker, Rockford Fosgate, Alpine, etc. We also supply an RMS rating which should be used when comparing with great brands that are not CEA compliant such as Hifonics, Earthquake, Powerbass, etc. The peak rating is simply what the amplifier can hit for a split second at the highest point of a song. This rating from any brand is not really important. RMS and CEA ratings truly are the most important. This is a 5 channel amplifier that is essentially 2 amplifiers built into one. There is a 4 channel class A/B amplifier and a mono class D amplifier all built into the same heatsink. The recommended configurations are to use the 4 full range channels to power all your interior speakers and then to use the mono channel for 1, 2, or more subwoofers. One of the tricks to determine the real power of a car amplifier is to multiply the fuse rating by 10 to determine the true RMS power. This formula almost always works within 20 %.

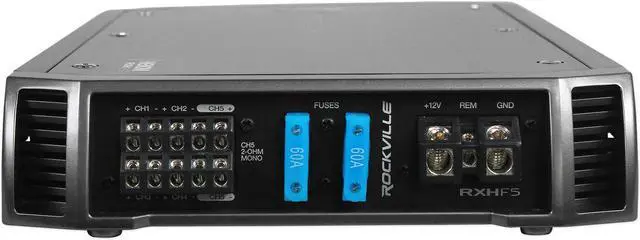

RXH-F5 features Dual 60 Amp Maxi Fuses. Compare this to other amps on the market with similar fuse ratings and you’ll see that with the RXH-F5 you are getting your money’s worth and then some. I have only seen 2 other 5 channel amplifiers with a similar fuse rating and power to this one. They both cost over $400! Our amplifier can compete with those ones in power and sound quality! This unit also features a high speed MOSFET power supply, studio-grade bipolar output stage transistors and ELNA brand audiophile capacitors. It has a fully adjustable 12dB/Octave cross over with differential circuitry. High Level inputs, also referred to as Speaker Level inputs, allow you to install the amplifier into your vehicle even if you do not have any preamp outputs available. That means you can install this amplifier to your factory or aftermarket receiver. Other features include Auto-Start Smart turn-on (This function senses when there is a signal from the head unit and automatically turns on the amplifier hence no need to run a Remote Turn-On wire), a fully adjustable 12dB bass equalizer, mute and delay soft start technology, and a crossover band-pass control.
The RXH-F5 is protected by a full IC controlled circuit and has professional peak limiter circuitry guaranteeing distortion free musical playback at all levels. One last point I want to make about this amplifier is efficiency. The circuitry of the 4 channel part of the amplifier is a class A/B circuitry. Class A/B is known to have amazing sound quality. Pro audio amps usually all are class A/B. Class A/B however is not known for its efficiency. To make this amplifier more efficient we simulated a class “G” amplifier. Class G is technology that switches the rail voltage depending on how much power is being used. We have similar technology built into these class A/B amplifiers which make these about 65-70% efficiency which is just amazing for a cla
