UHF Guitar Wireless
Why choose the JW-08 portable wireless audio?
Support UHF Band
- Different from 2.4GHz and 5.8GHz, UHF guitar transmitter and receiver features strong anti-interference ability for longer transmission range.
- Intermediate players for home practice, small rehearsals, campus bands, bar gigs.

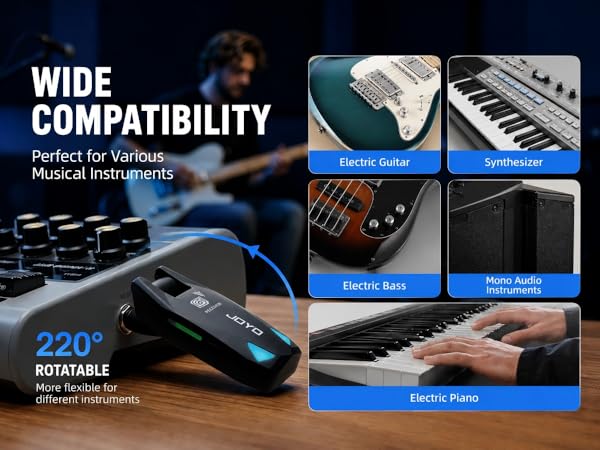

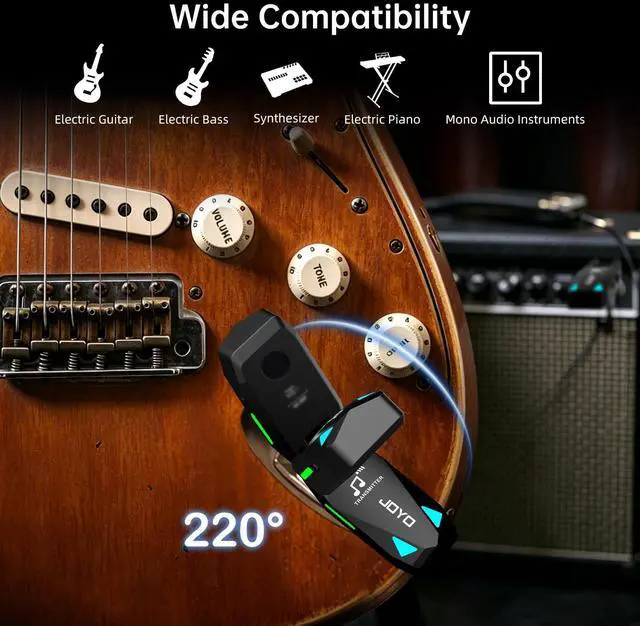

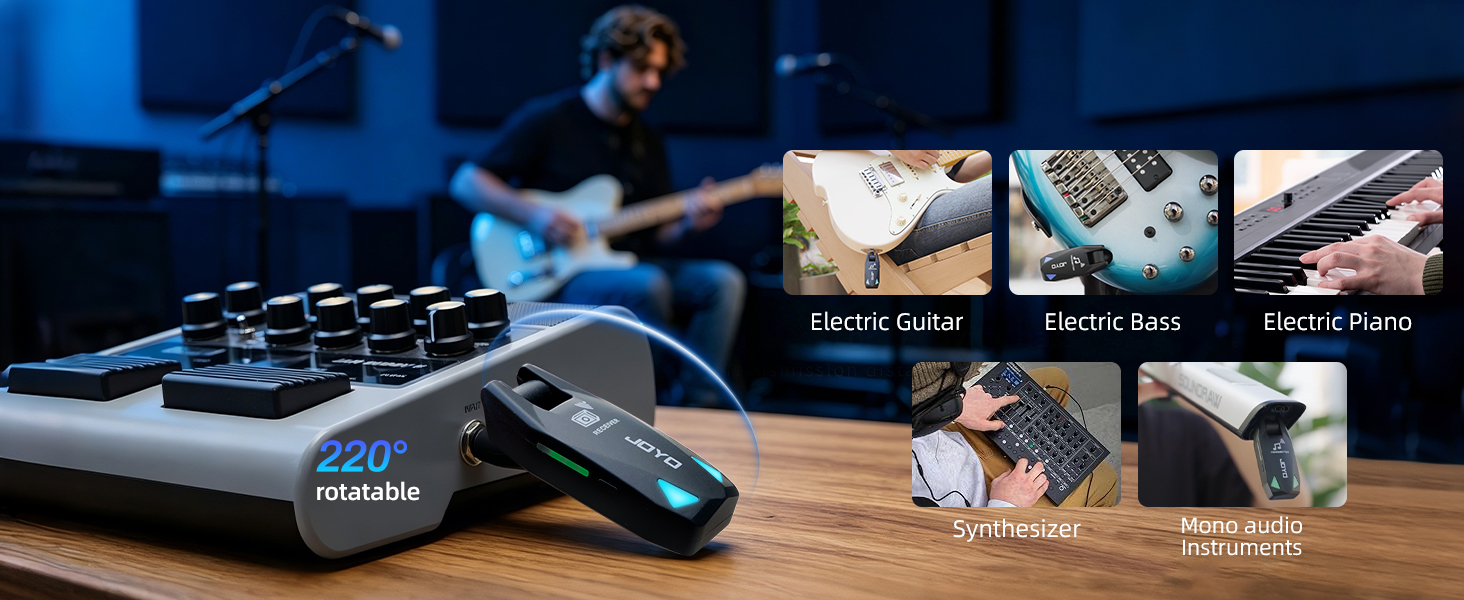

Rotatable 6.35mm Jack
- For mono instruments such as electric guitars, basses and electric pianos.
- Reinforced durable anti-drop design for rotatable plug.

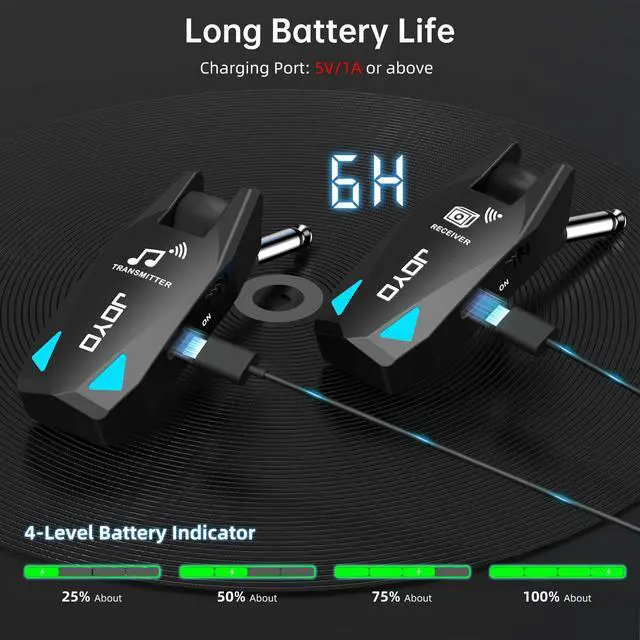

6h Battery Life
- Charges in 1.5-2 hours, lasts up to 6 hours.

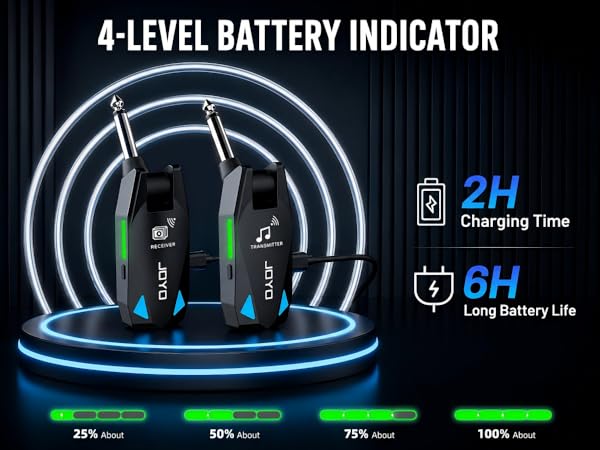

- 4-level battery indicator lights

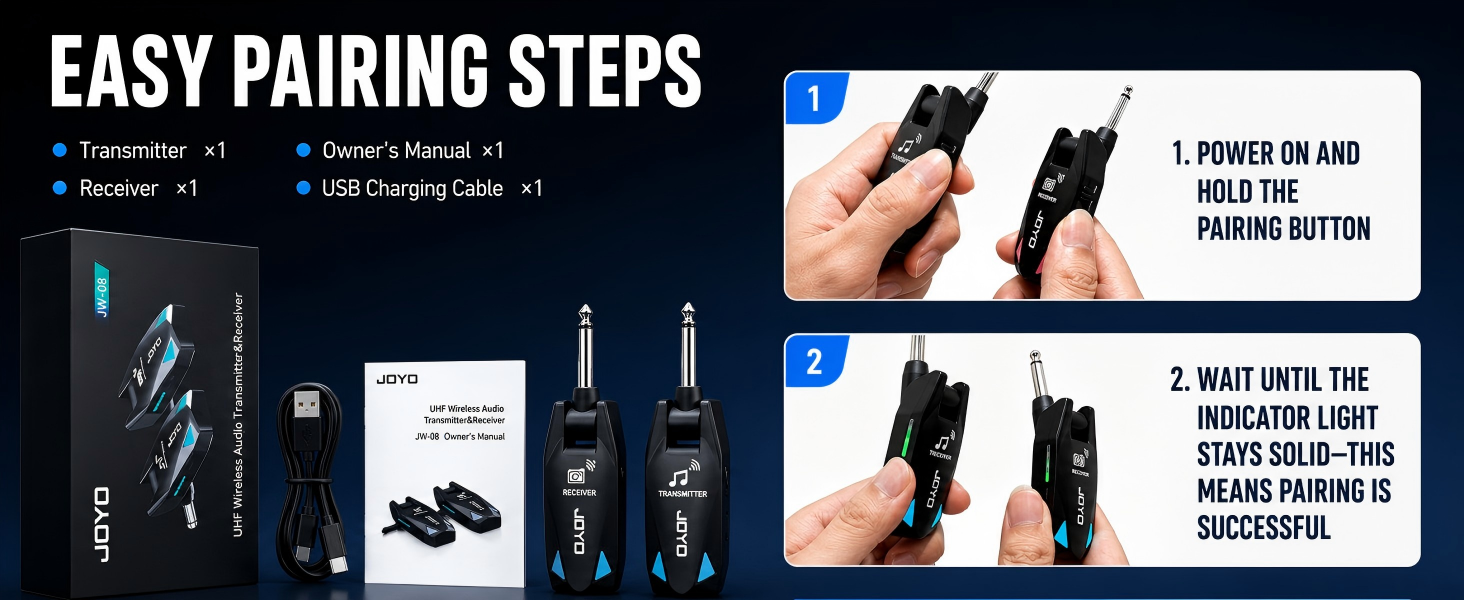

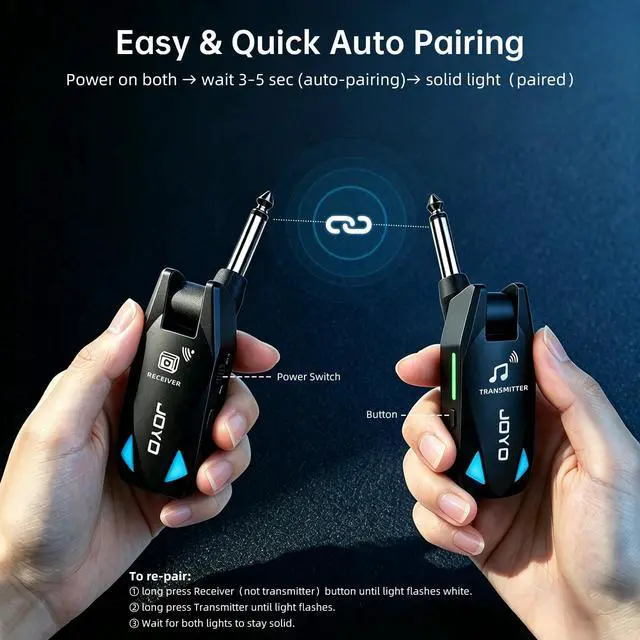

Auto-pairing:
Power on both devices. When both indicator lights stay solid (no flashing), pairing is successful.

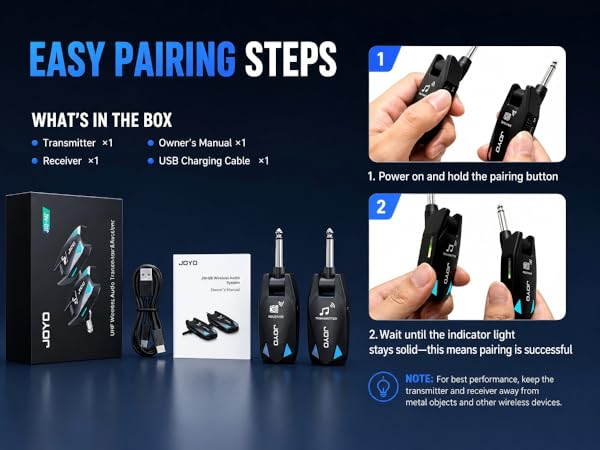

To re-pair / pair multiple sets:
- First, Long press receiver until the white light flashes.
- Long press transmitter until the white light flashes.
- Wait for both lights to stay solid — pairing is complete.
Susgestions:
JW-08 has undergone rigorous noise testing. For best results, avoid pairing it with ultra-high gain guitars, poorly shielded instruments, or speakers with poor sound quality. These can exceed the noise control range and easily amplify background noise from current. This does not a defect in wireless system itself. Rather, it largely depends on user's guitar, amp and experience.
Getting Started Tips
Turn down or lower pickup and try using different guitars & amp to test.
Stay away from electronic devices, adjust distance between transmitter and receiver
Switch channels.
Patiently try for beginner
Interruption (not complete dropout) may be caused:
- Low battery — Make sure both the transmitter and receiver are fully charged.
- Electronic interference — Keep away from other wireless devices such as Wi-Fi, Bluetooth.
- Signal blockage — Avoid walls or metal objects between transmitter and receiver.
- Distance too far — Shorten distance between transmitter and receiver.
- Channel congestion — Switch channel.

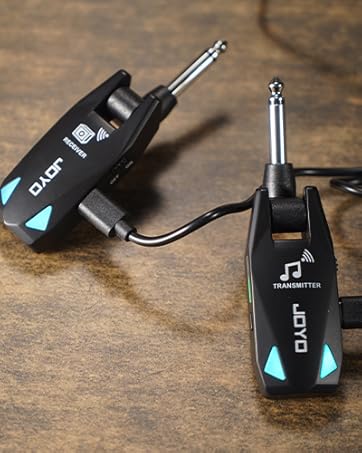

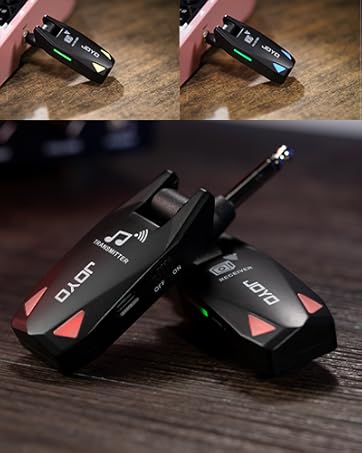

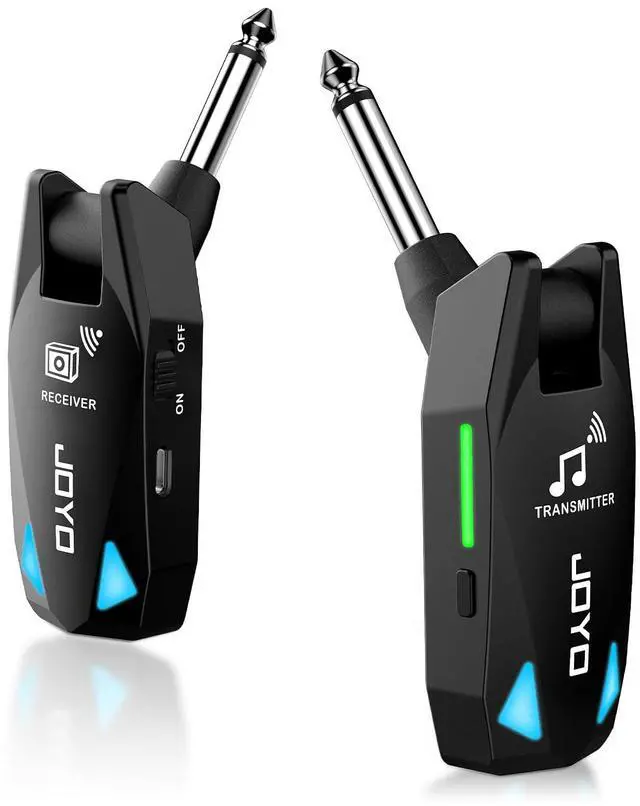

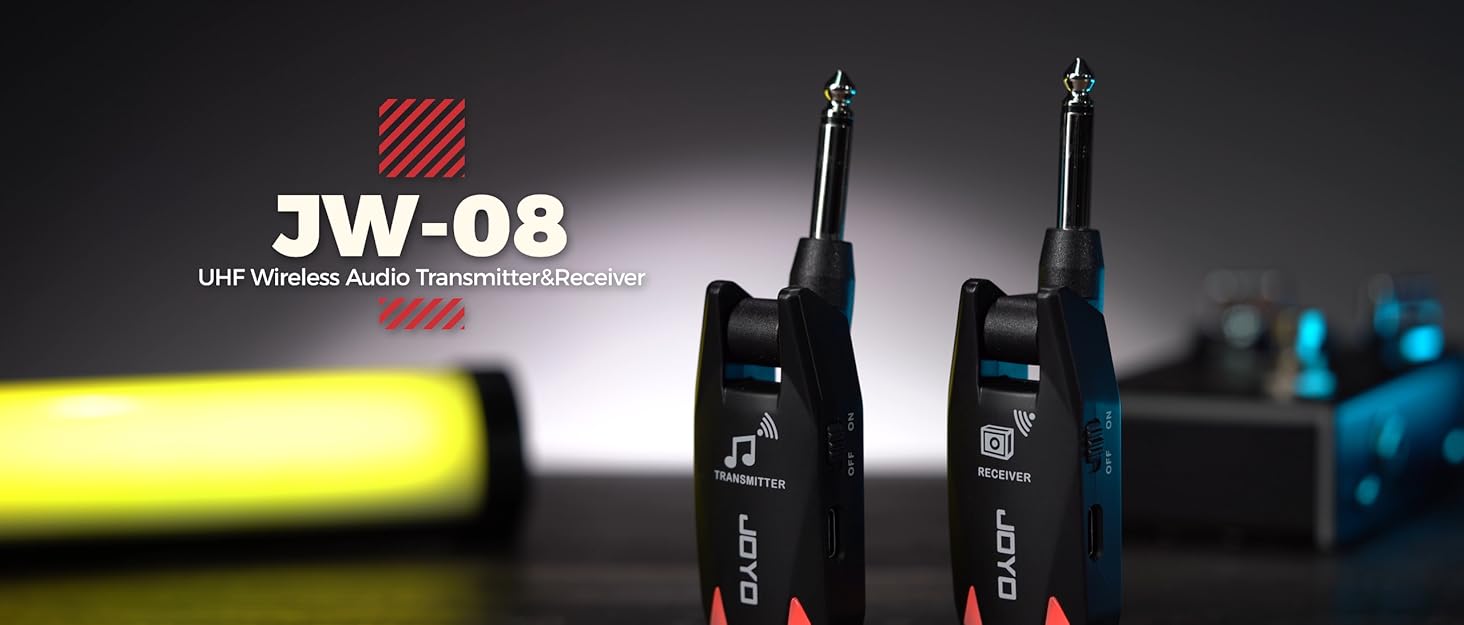

JOYO UHF Wireless Guitar System (JW-08)
Merchant VideoBudget-friendly practice device
- JW-08 is a compact UHF wireless system designed for guitarists who want to simplify their home practice setup. This system replaces traditional cables with a stable wireless connection, allowing for a more organized practice space in bedrooms or living rooms. Its foldable design makes it highly portable and easy to store. With a focus on straightforward operation, it provides a practical wireless solution for musicians starting their journey. Note: Not for professional stage use
Specification
How do I pair the transmitter and receiver if they are not connecting
Power both on (auto-pairing). If you need to re-pair: long-press the receiver button until it flashes white, then long-press the transmitter button until it flashes white. They will pair and connect automatically after a few seconds.
What should I do if I hear noise or static during my practice

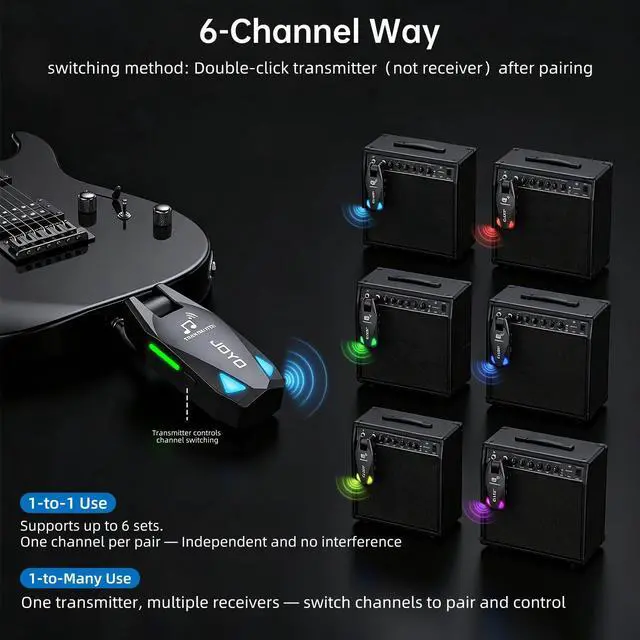

This indicates signal interference. Double-tap the transmitter button to switch between the 6 available channel colors (Red, Green, Blue, Yellow, Purple, Cyan) to find a clearer signal for environment. or move away from it & change guitar’s position
Can I use one transmitter to send sound to multiple amplifiers
Yes, the system supports a one-to-many configuration by different channel. You can pair a single transmitter with multiple receivers to broadcast your audio to different devices simultaneously.
How can I tell when the battery is low and needs charging
Each unit has a 4-segment green LED battery indicator. When all four lights are on, the battery is full. If only one light is flickering quickly, the battery is nearly empty and requires a charge via the Type-C port
How should I maintain the battery if I do not use the device often
Lithium batteries self-discharge over time. To prevent the battery from entering protection mode, charge the units at least once every two months when not in regular use.
JOYO UHF Wireless Guitar System (JW-08)
Merchant VideoBudget-friendly practice device
- JW-08 is a compact UHF wireless system designed for guitarists who want to simplify their home practice setup. This system replaces traditional cables with a stable wireless connection, allowing for a more organized practice space in bedrooms or living rooms. Its foldable design makes it highly portable and easy to store. With a focus on straightforward operation, it provides a practical wireless solution for musicians starting their journey. Note: Not for professional stage use
Specification
| Wireless Band | UHF ISM Frequency Band |
|---|---|
| Latency | < 2ms |
| Effective Distance | 30–50 Meters |
| Frequency Response | 20Hz – 20kHz |
| Distortion | = 0.05% (@1kHz-10dBFS) |
| Channel Quantity | 4 |
| Battery Life | 4-6 Hours (once fully charged) |
| Battery Capacity | 3.7V / 500mAh |
| Charging Port | USB Type-C |
| Dimensions | 73 x 34 x 31 mm (Folded) |
| Weight | 70g |
How do I pair the transmitter and receiver if they are not connecting
Power both on (auto-pairing). If you need to re-pair: long-press the receiver button until it flashes white, then long-press the transmitter button until it flashes white. They will pair and connect automatically after a few seconds.
What should I do if I hear noise or static during my practice
This indicates signal interference. Double-tap the transmitter button to switch between the 6 available channel colors (Red, Green, Blue, Yellow, Purple, Cyan) to find a clearer signal for environment. or move away from it & change guitar’s position
Can I use one transmitter to send sound to multiple amplifiers
Yes, the system supports a one-to-many configuration by different channel. You can pair a single transmitter with multiple receivers to broadcast your audio to different devices simultaneously.
How can I tell when the battery is low and needs charging
Each unit has a 4-segment green LED battery indicator. When all four lights are on, the battery is full. If only one light is flickering quickly, the battery is nearly empty and requires a charge via the Type-C port
How should I maintain the battery if I do not use the device often
Lithium batteries self-discharge over time. To prevent the battery from entering protection mode, charge the units at least once every two months when not in regular use.
