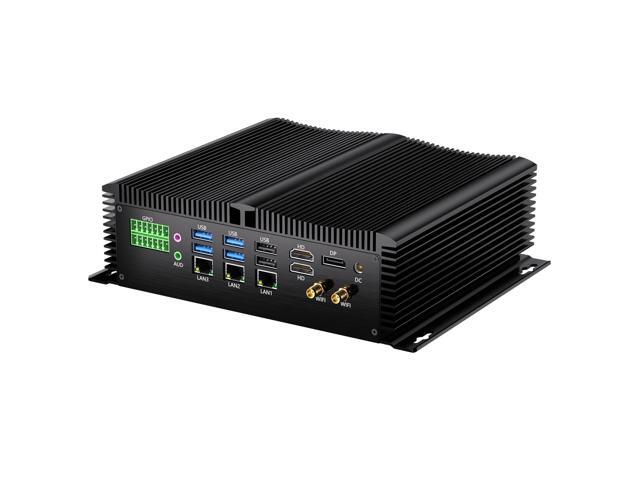

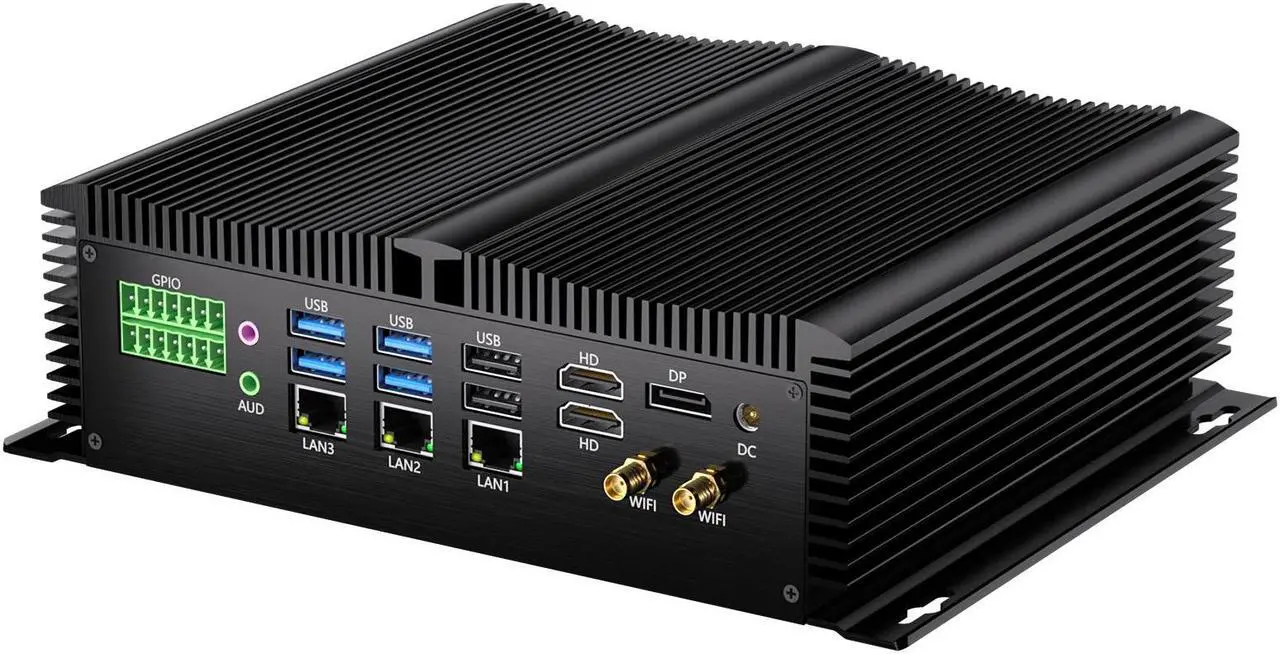

    BOESIIPC Industrial Mini Pc with 12th Gen Core i7-1255U(10C/12T), 16G DDR5 RAM 512G Pcie 4.0 SSD, WIFI6, BT5.2, 4xUSB3.0, 3x2.5G LAN, 8xCOM, SIM, GPIO, P/S2 Ports, Win 11 Pro Fanless Computer

    Be the first to review this product...

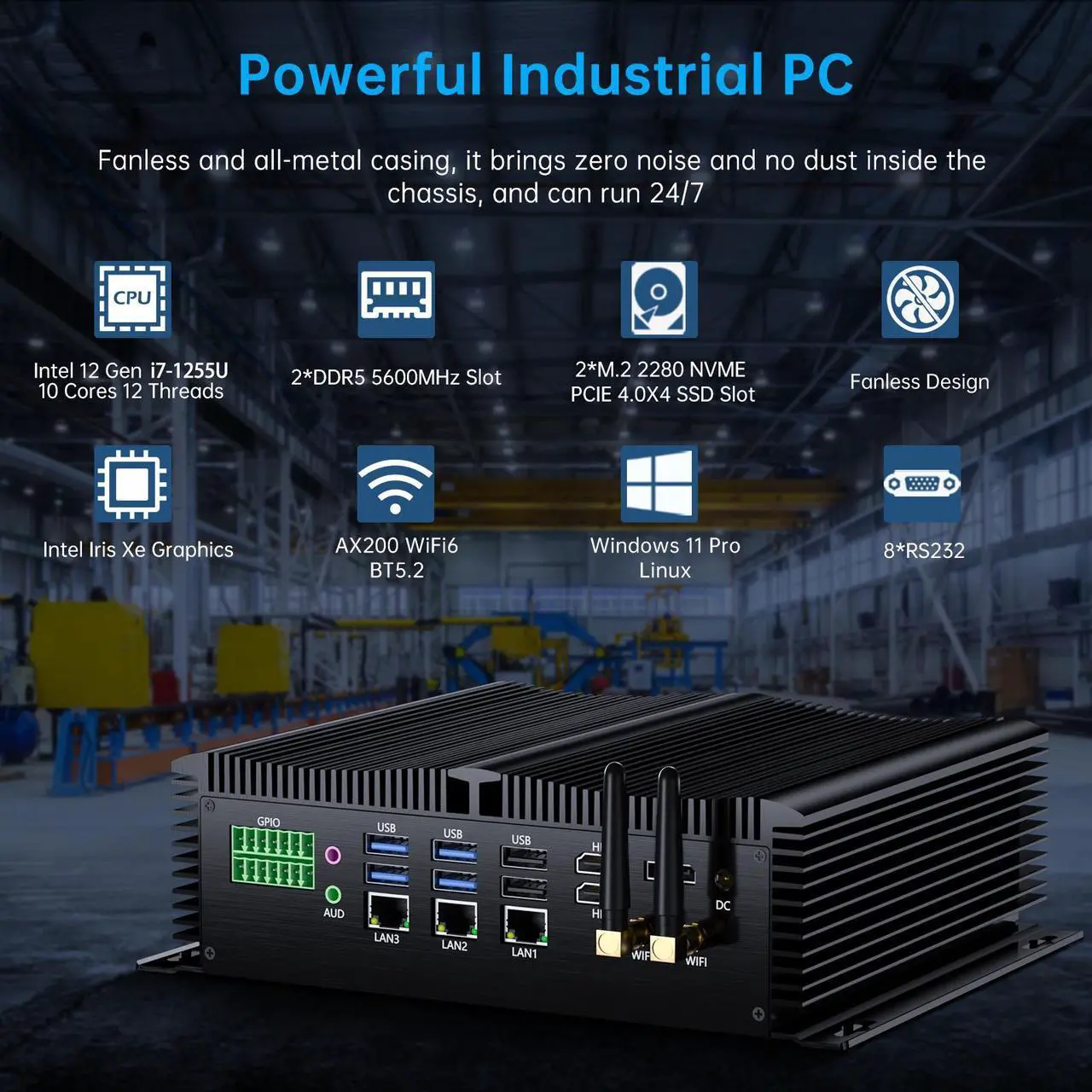

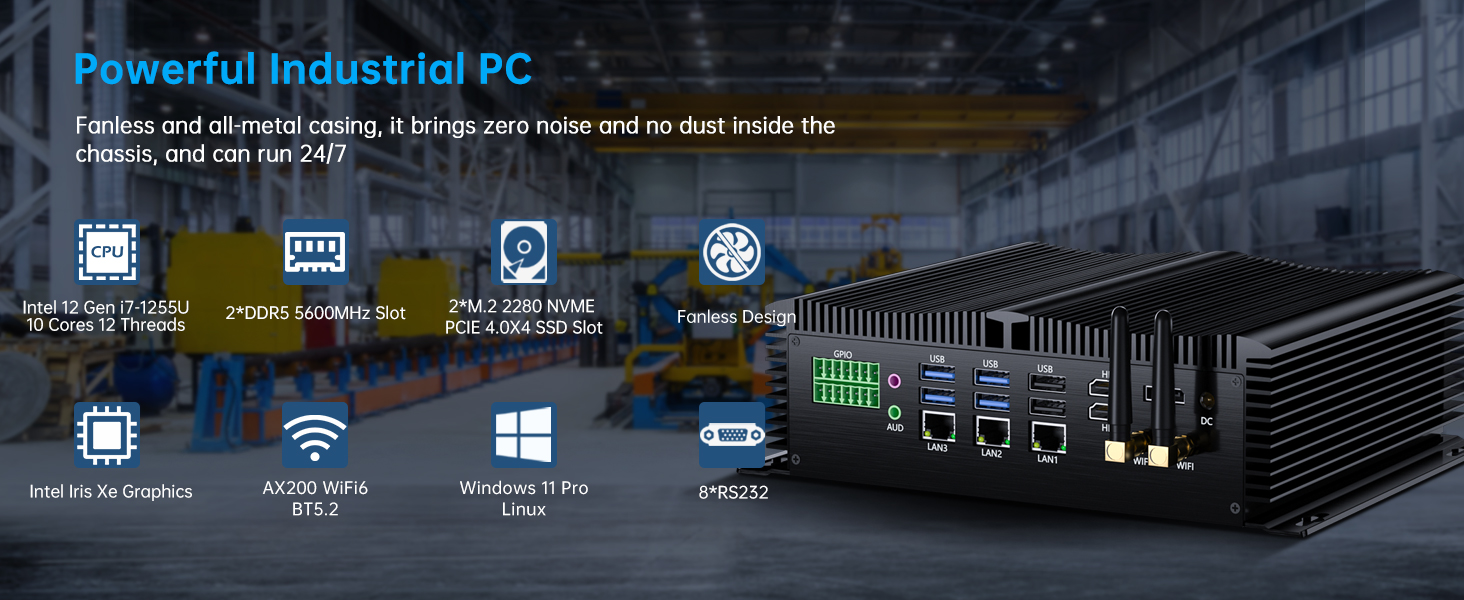

    • [Powerful CPU] BOESIIPC GK9000 is equipped with Intel 12th generation i7-1255U processor. With 10 cores, 12 threads, 12 MB Smart Cache, Max Turbo Frequency: 4.7Ghz.

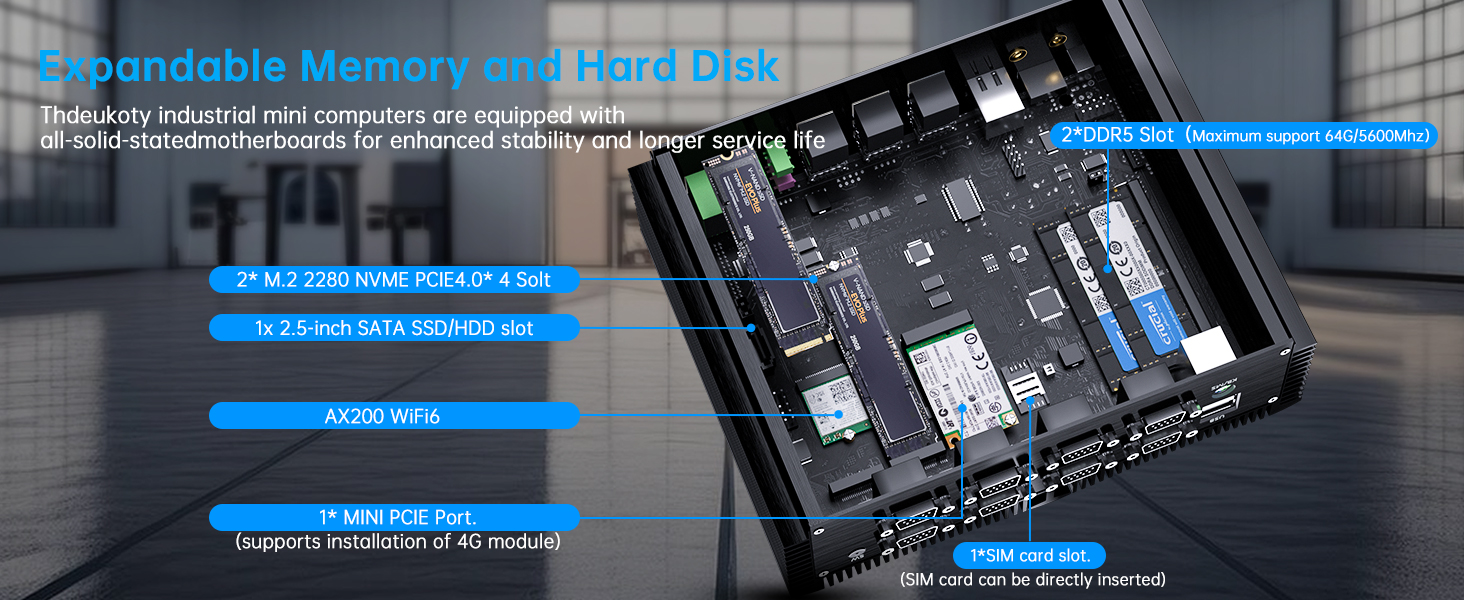

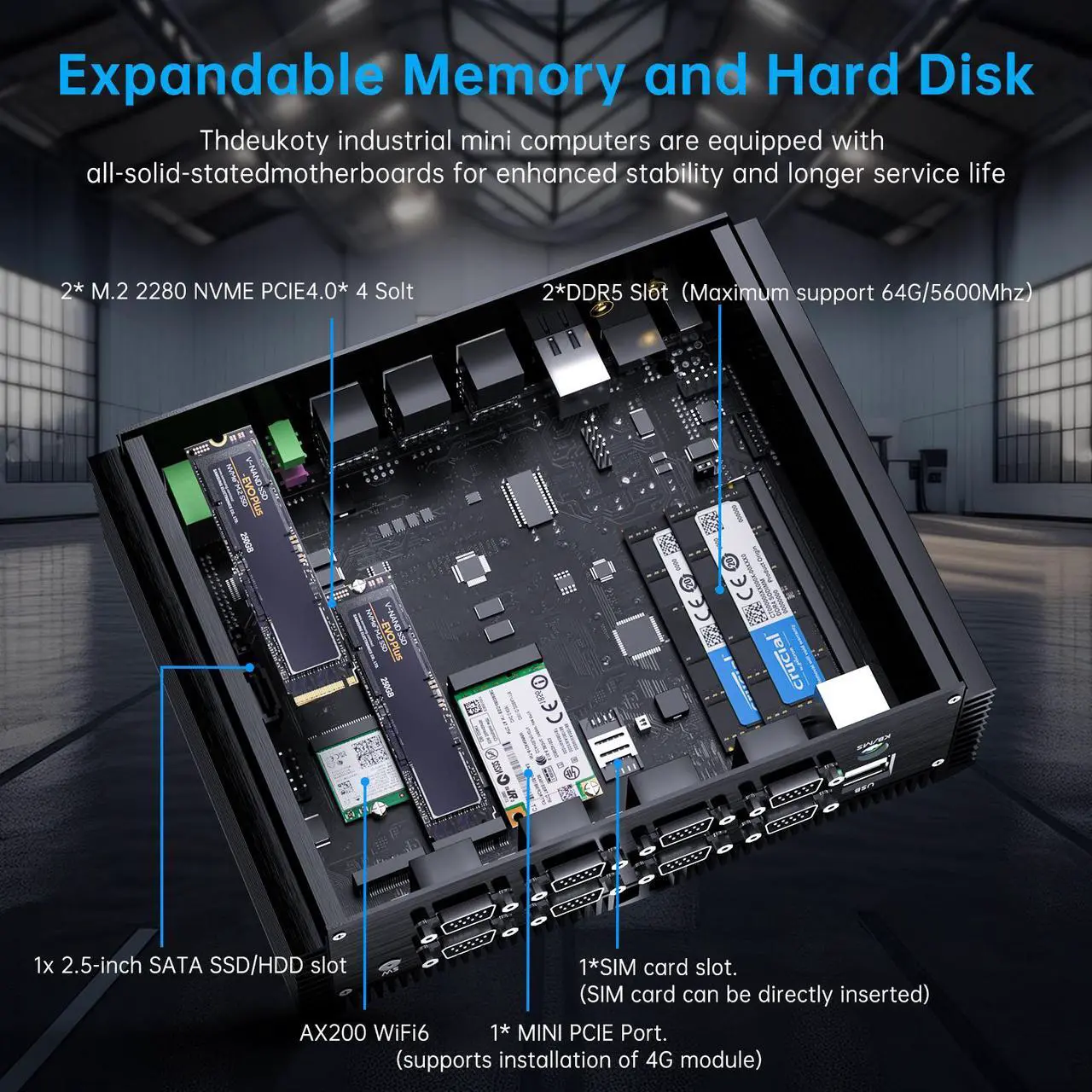

    • [DDR5 RAM & Pcie 4.0 SSD] Powerful mini computer, equipped with 2xDDR5 RAM slots[supports up to 64GB(5600Mhz) RAM] and 2xM.2 Pcie 4.0 NVME SSD slots(supports up to 2TB SSD)

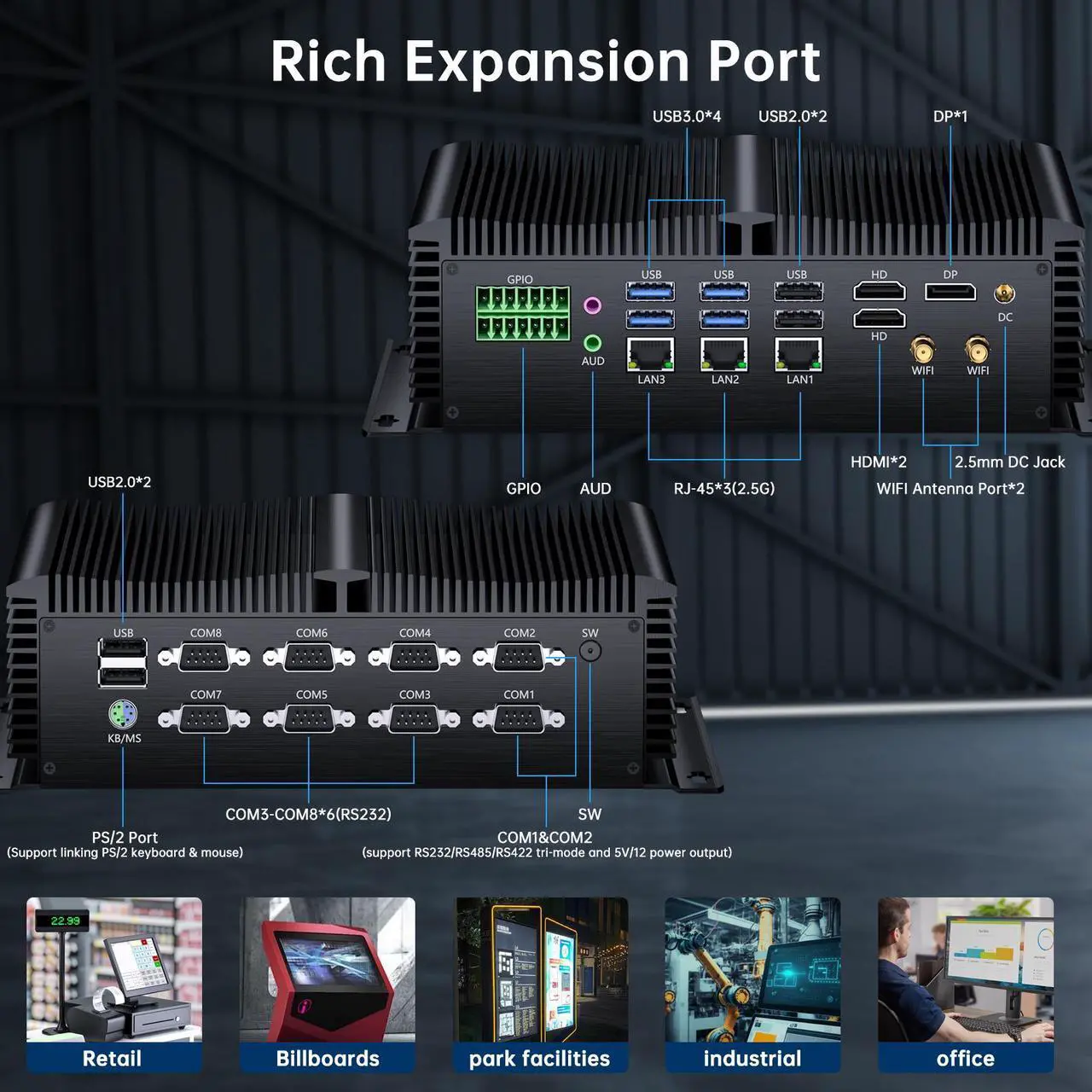

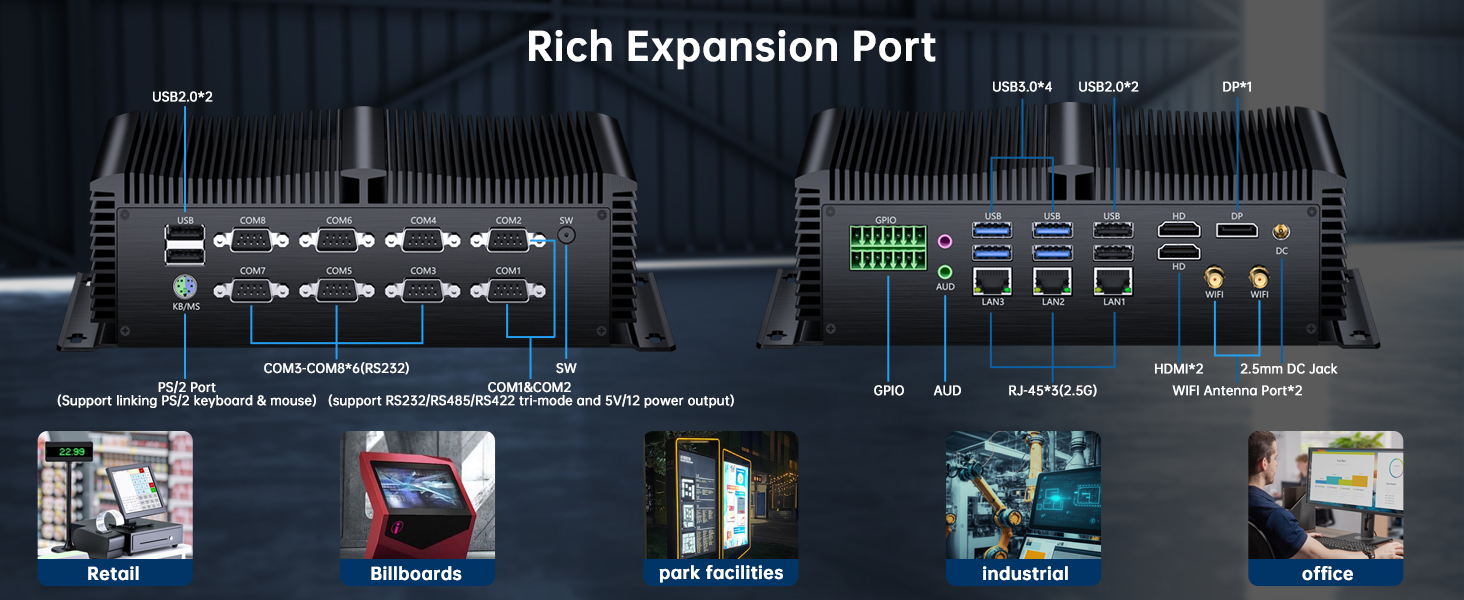

    • [Rich Ports] GK9000 Industrial Pc equipped 8xCOM RS232 ports(COM1 and COM2 supports switching to RS232, RS422, RS485 via bois.), 1xP/S2, 1xGPIO, 4xUSB 3.0, 2xUSB 2.0, 3x2.5G LAN, AX200(WIFI6&BT5.2), 1xMIC & SPK, three monitor support via 2xHDMI(4K@60Hz) & 1xDP(4K@60Hz) Ports.

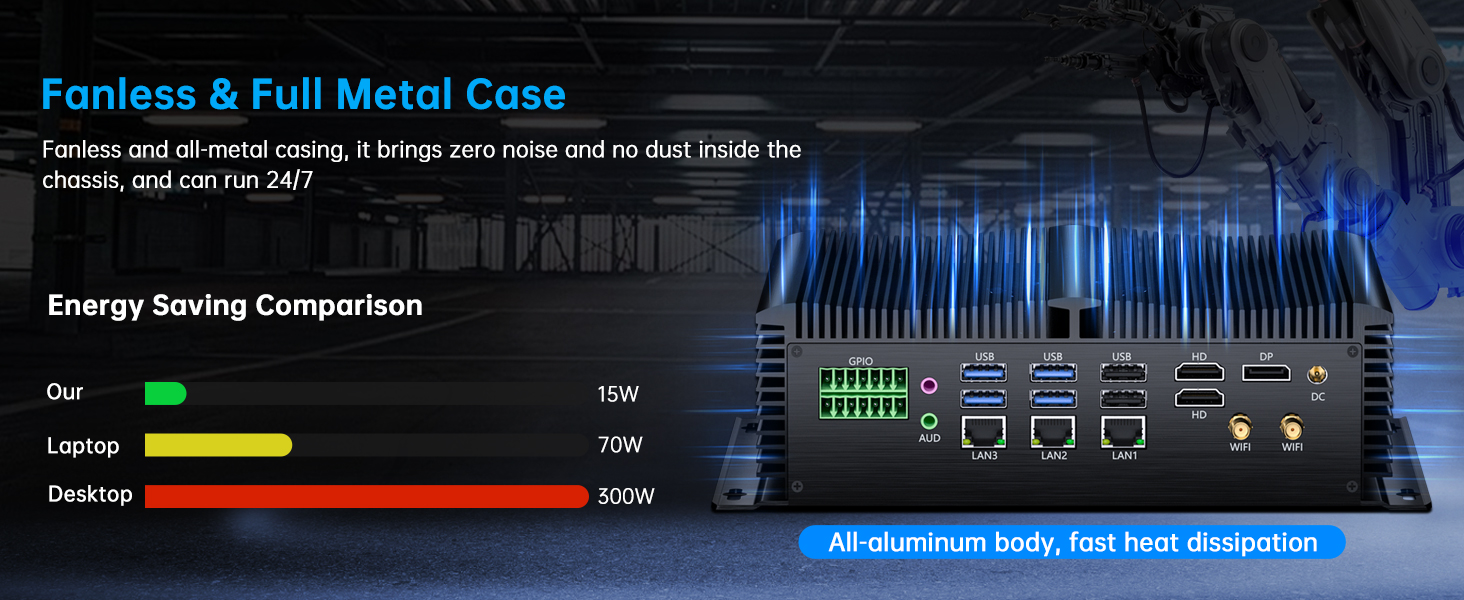

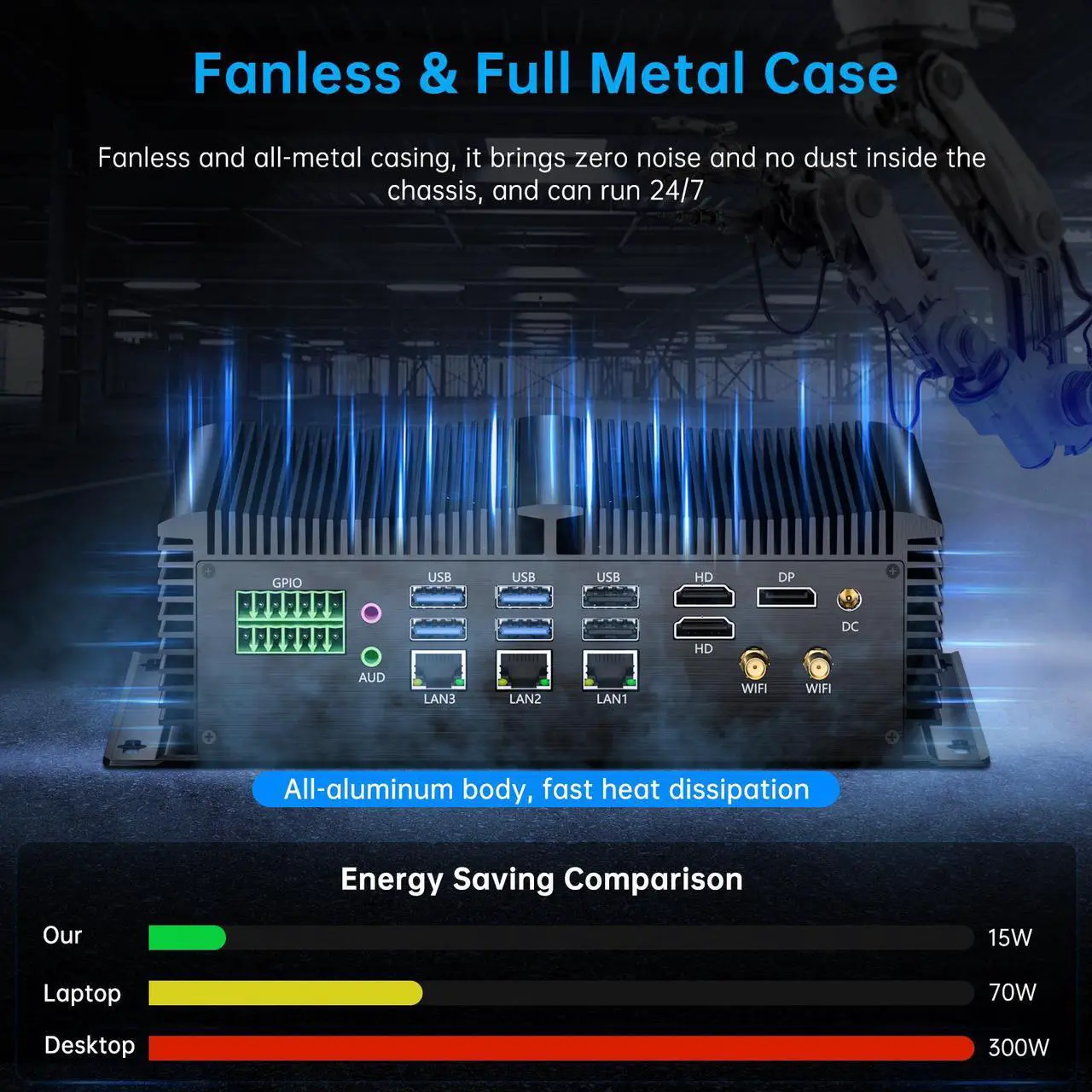

    • [Low Power Consumption, Zero Noise] The fanless mini computer adopts the "ice ridge cooling" structure, which has stronger heat dissipation, lower power consumption, and lower heat generation.
    • [Strong Environmental Adaptability] The host adopts industrial control design, has super environmental adaptability, is fully enclosed, dust-proof, corrosion-proof, and shock-resistant.
    +
    +
    Overview
    Specs
    Reviews

    • CPU:

      • i7-1255U 10 cores and 12 threads, the maximum turbo frequency of the energy-efficient core is 3.50GHz and the maximum turbo frequency of the performance core is 4.70GHz.



    • BIOS: AMI BIOS, ACPI supported.

    • RAM: 2 SO-DDR5 memory slots, up to 32GB*2.

    • SATA: 2 M.2 2280 NVME solid-state drive slots support PCIE4.0X4.

    • MINI PCIE: 1 MINI PCIE interface 4G module, onboard SIM card slot.

    • Graphics card: Intel Iris Xe Graphics supports 3-way display interface 2*HDMI 2.0+1*DP 1.4.

    • Network card: 3 Intel i226 2.5G LAN on board.

    • Sound card: USB sound card chip, HDMI simulates 6-channel sound effects.

    • WIFI: NGFF interface built-in module, external antenna to strengthen the signal.

    • USB: 8 USB. 4 USB3.0, 4 USB2.0.

    • COM: 8 COM, COM1 and COM2 support RS232/422/485 soft switching, just set it in BIOS.

    • Network wake-up: Support network wake-up in LAN.

    • PXE diskless: Support network boot function.

    • Power supply support: DC IN 19V power supply.

    • Size: 255mmx 155mmx80mm.

    • Weight: about 1500 grams.

    • Temperature:

      • Operating Temperature:

        • -10°C~60°C (32°F~140°F)



      • Storage Temperature:

        • -20°C~80°C (-68°F~176°F)





    • Relative Humidity:   10%~90% (non-condensing)

    i7
    Fanless Industrial Mini PC Specification
    CPU Intel 12th generation i7-1255U processor. With 10 cores, 12 threads, 12 MB Smart Cache, Max Turbo Frequency: 4.7Ghz, the general scene running power consumption is only 15 watt.
    RAM Intel Iris Xe Graphics(Grap2* DDR5 memory slots, max support 2*32GB.hics frequency 1.25 GHz).
    Wireless WIFI 6(support 2.4Ghz/ 5Ghz frequency band) & Bluetooth 5.2( 50% faster transfer speed than Bluetooth 5.1)
    System Pre-installed Windows 11 Pro. Also supports Windows 11 Pro/windows server 2012/2016/linux/centos/ubuntu.
    More Function Support 7*24 hours of uninterrupted and stable operation, support power-on, scheduled power-on, network wake-up, VESA support.
    Dimension & Weight 10*6.1*3.2inch (255x 155x80mm) / 3.3lb (1.5kg).
    GPU Intel Iris Xe Graphics(Graphics frequency 1.25 GHz).
    SSD 2* M.2 2280 PCIE Gen4x4 SSD interface.

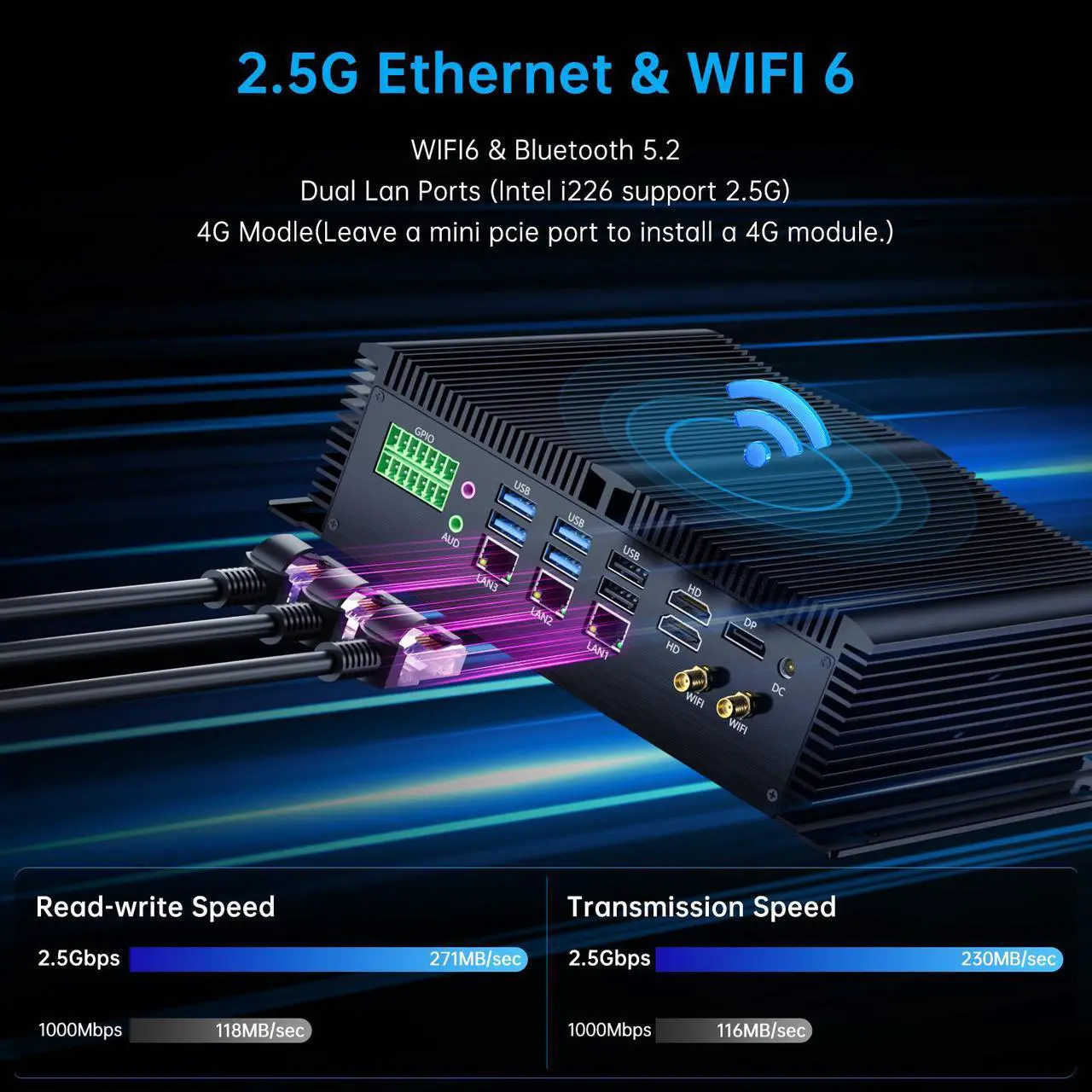

    Ethernet Three RJ-45 ports(Intel i226), max support 2.5Gbps.
    Port Support 7*24 hours of uninterrupted and stable operation, support power-on, scheduled power-on, network wake-up, VESA support.
    Power supply support DC IN 19V power supply.
    Package Included 1* Mini PC, 1* Power Adapter, 1* HDMI Cable, Dual WiFi Antenna, 1* SATA Cable.
