BRE NUC 11BTM Beast Canyon
High-Performance Compact Desktop mini PC
Beast Canyon Powerhouse
Compact Yet Powerful Mini Desktop PC
Modular Design
DIY Experience & Hardware Upgradability
- with PCIe 4.0 x 16 slot;
- and other rich selection of comprehensive slots & ports

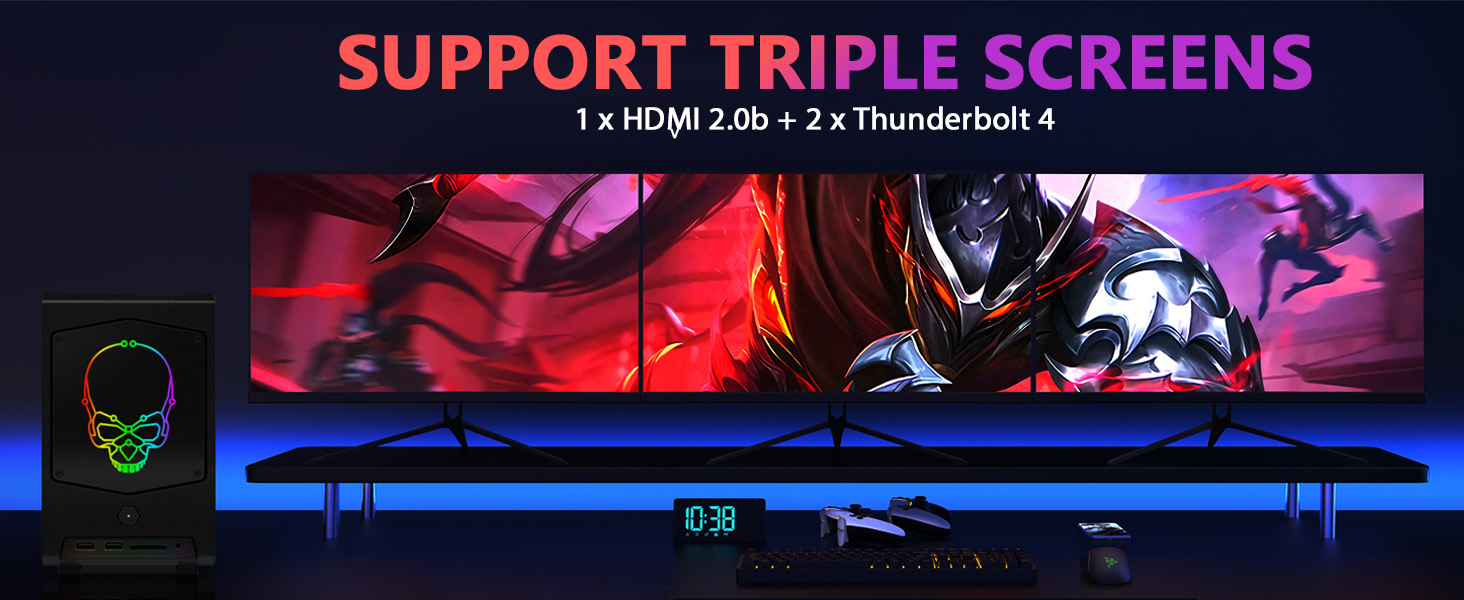

Triple 4K Display
- Thunderbolt 4 * 2
- HDMI * 1

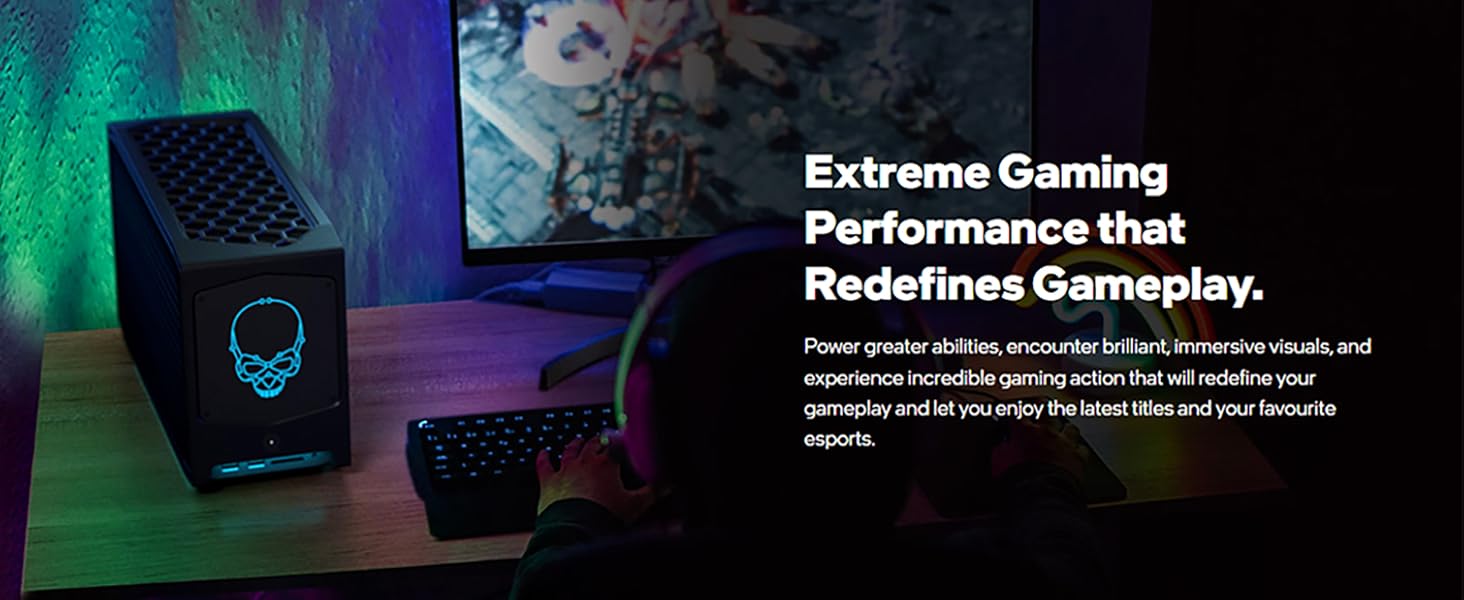

Serious Gaming & 4K Streaming
PCIe 4.0 X 16 slot up to 12” length for Discrete Graphics Card (not included) (up to 350W)
Video Editing
Multitask Without Lag.
Launch Fast. Finish Faster.
Programing
Responsive Performance in a Compact Setup
BRE NUC mini PC
Your BRE mini PC
- Backed by BRE's 1 Year limited w~arranty
- Available 24/7 to assist you
- Fulfillment by A
BRE NUC
- A high-tech enterprise focusing on the research, development, design and production of mini computer mainframes.
- It is committed to providing high-performance, energy-saving, compact mini computer host solutions for users around the world. Driven by innovation and with quality as the core.
BRE Beast Canyon Powerhouse Mini Desktop PC
Building Block Design
Merchant VideoPerfect for gamers, creators, streamers, and power users who need reliability and speed in a compact system.
Compact Powerhouse: Core i7-11700B Mini PC with 32GB RAM & 1TB SSD
Experience desktop-level performance in this compact mini PC. It handles demanding workloads like video editing,3D modeling,gaming,and multitasking with ease.
Store your projects on the lightning-fast 1TB SSD and expand with the PCIe 4.0 x16 slot for a dedicated graphics card.
Create an immersive workspace with Triple 4K Display, while staying connected through Wi-Fi 6E, 2.5Gb Ethernet, and Thunderbolt 4 ports*2. With multiple USB 3.2 Gen2 ports,delivering pro-level performance without the bulk.
BRE NUC BTMi7 Teardown of Modular Design: DIY & Hardware Upgradability

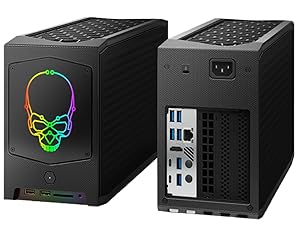

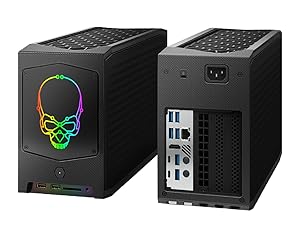

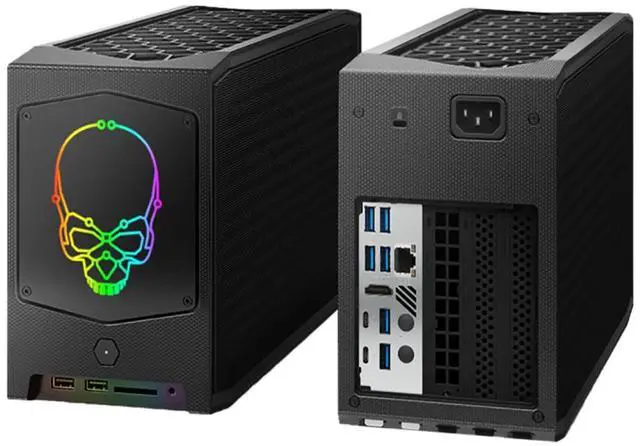

Front & Rear
- User-replaceable RGB Backlit : Customizable RGB Lighting
- Metal Inner Frame with Outside Plastic
- Kensington lock with panel security
Side & Bottom
- The base features a quick-release module with an M.2 2280 slot
- Allowing for easy installation of an additional SSD.
- RGB Lighting Also~!
Internal Disassembly
- Detachable side panels for DIY
- Such as adding a Discrete Graphics Card ( with PCIe 4.0 x16 slot, supports cards up to 12 inches in length,up to 350W).

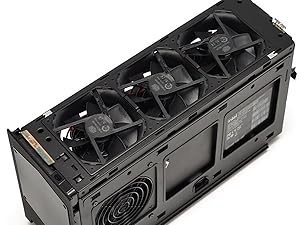

Triple Fan Cooling
A Triple 92mm Fan Cooling System
- Effectively expels hot air
- Operate within the optimal temperature range for peak performance.
BRE NUC mini Desktop PCs
 BRE NUC BTMi7 |  BRE NUC N7P |  BRE NUC N7A |
|---|---|---|
SPEC i7-11700B| UHD/ Discrete GPU Ready |32GB DDR4 1TB SSD|WiFi6E 2.5G LAN| Triple 4K | SPEC R7 7840HS |Radeon 780M Graphics |32GB DDR5 1TB SSD |Dual 2.5G WIFI 6 |Triple 4K | SPEC i5-12450H|Intel UHD Graphics|16GB DDR4 512GB SSD |2.5G Ethernet port*1|Triple 4K |
in Action Serious Gaming & 4K Streaming...with PCIe 4.0 x16 slot, 12 inches in length, DIY | in Action Gamers, Designers, Developers... | in Action Mainstream American home/office, light creative work, and entertainment needs |
BRE NUC NUC11BTMi7 i7-11700B Technical Specifications
BRE NUC Mini Desktop PC Series

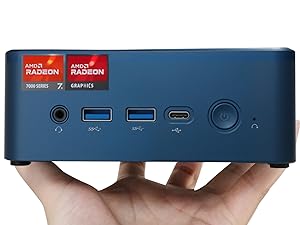

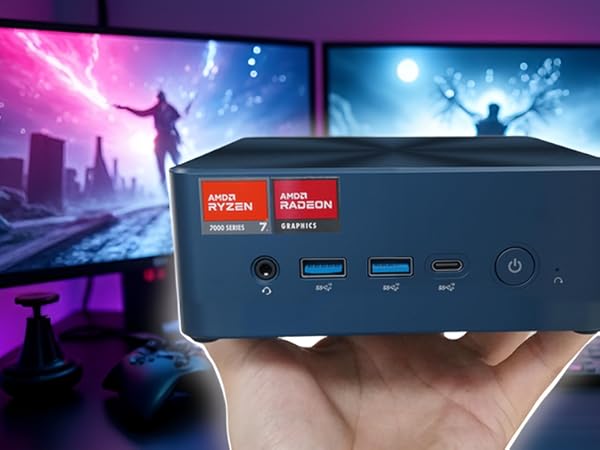

BRE NUC N7P
Compact Powerhouse for Every Task
Elite Performance for Gamers, Creators & Developers

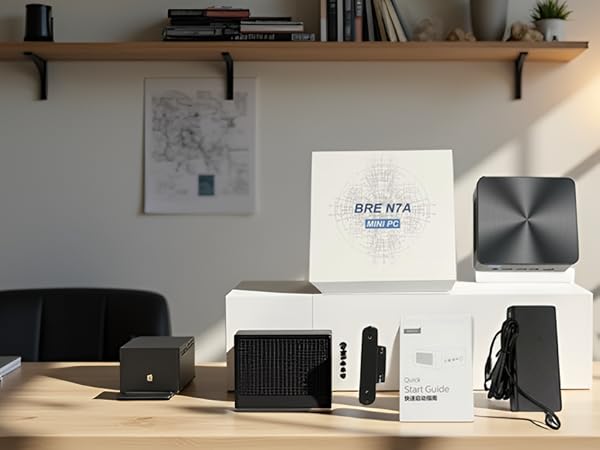

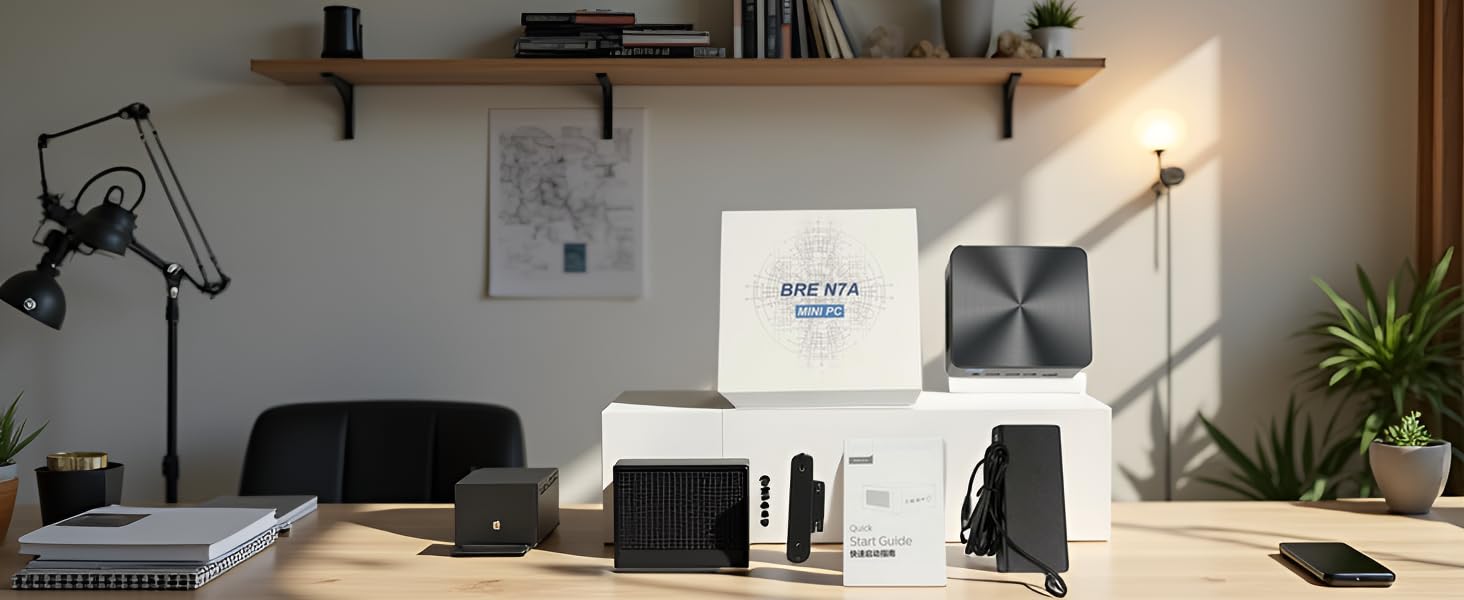

BRE NUC N7A
Its Greatest Strength is its Versatility:
It handles almost every common task very well instead of excelling in one extreme area.

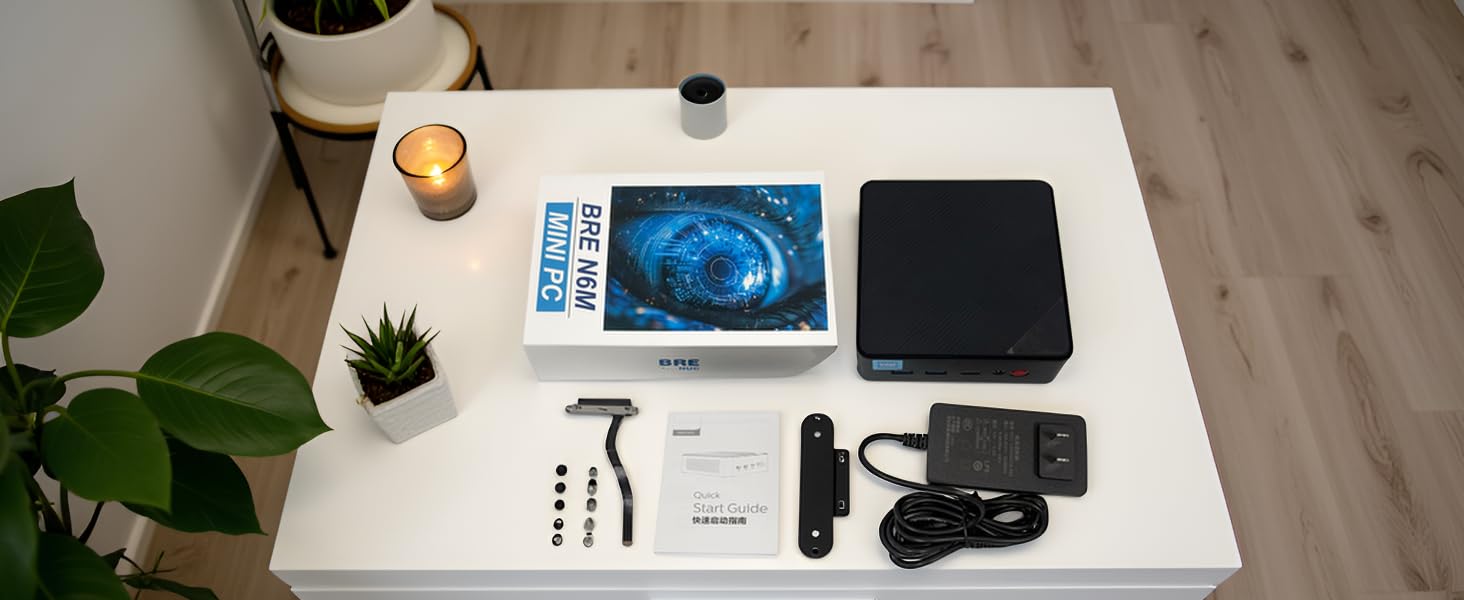

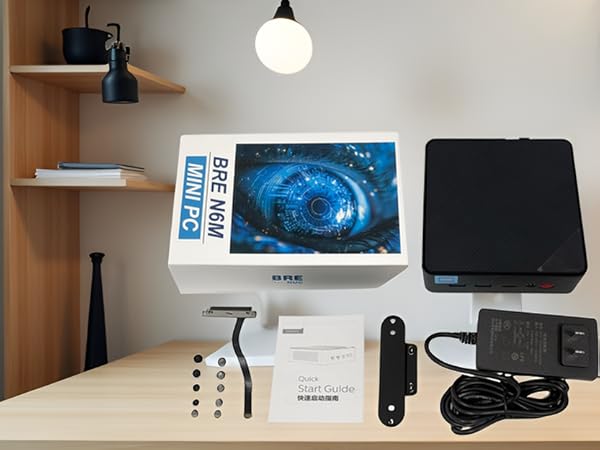

BRE NUC N6M
Engineered for value, efficiency, and practicality
Ultra-lower power energy efficient
Speed Meets Efficiency
BRE NUC 11BTM i9
Beast Canyon
High-performance
Discrete GPU Ready (PCIe4.0 x16 Slot 12")
BRE NUC
Driven by innovation and with quality as the core. It is committed to providing high-performance, energy-saving, compact mini computer host solutions for users around the world.
BRE Beast Canyon Powerhouse Mini Desktop PC
Building Block Design
Merchant VideoPerfect for gamers, creators, streamers, and power users who need reliability and speed in a compact system.
BRE BTMi7 Beast Canyon Desktop mini PC
Compact Powerhouse: Core i7-11700B Mini PC with 32GB RAM & 1TB SSD
Experience desktop-level performance in this compact mini PC. It handles demanding workloads like video editing,3D modeling,gaming,and multitasking with ease.
Store your projects on the lightning-fast 1TB SSD and expand with the PCIe 4.0 x16 slot for a dedicated graphics card.
Create an immersive workspace with Triple 4K Display, while staying connected through Wi-Fi 6E, 2.5Gb Ethernet, and Thunderbolt 4 ports*2. With multiple USB 3.2 Gen2 ports,delivering pro-level performance without the bulk.
BRE NUC BTMi7 Teardown of Modular Design: DIY & Hardware Upgradability
Front & Rear
- User-replaceable RGB Backlit : Customizable RGB Lighting
- Metal Inner Frame with Outside Plastic
- Kensington lock with panel security

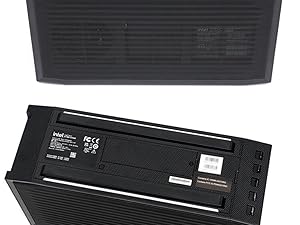

Side & Bottom
- The base features a quick-release module with an M.2 2280 slot
- Allowing for easy installation of an additional SSD.
- RGB Lighting Also~!

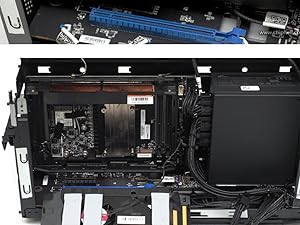

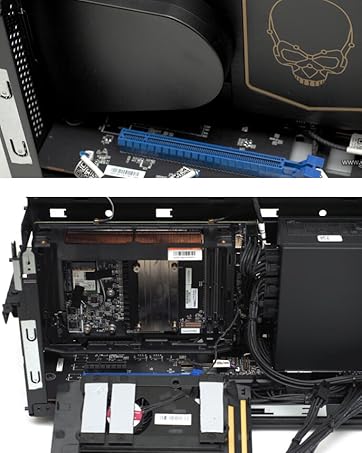

Internal Disassembly
- Detachable side panels for DIY
- Such as adding a Discrete Graphics Card ( with PCIe 4.0 x16 slot, supports cards up to 12 inches in length,up to 350W).
Triple Fan Cooling
A Triple 92mm Fan Cooling System
- Effectively expels hot air
- Operate within the optimal temperature range for peak performance.

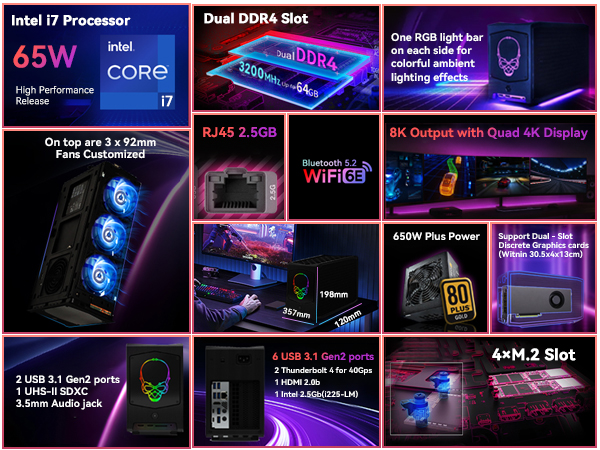

BRE BTMi7 i7-11700B Technical SPEC

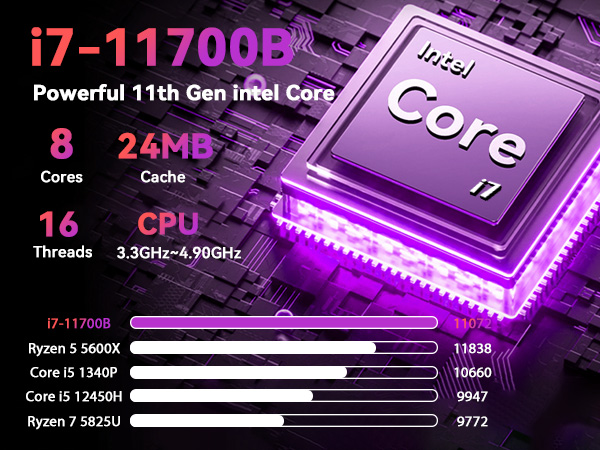

BTMi7 CPU
BTMi7 SPEC Overview

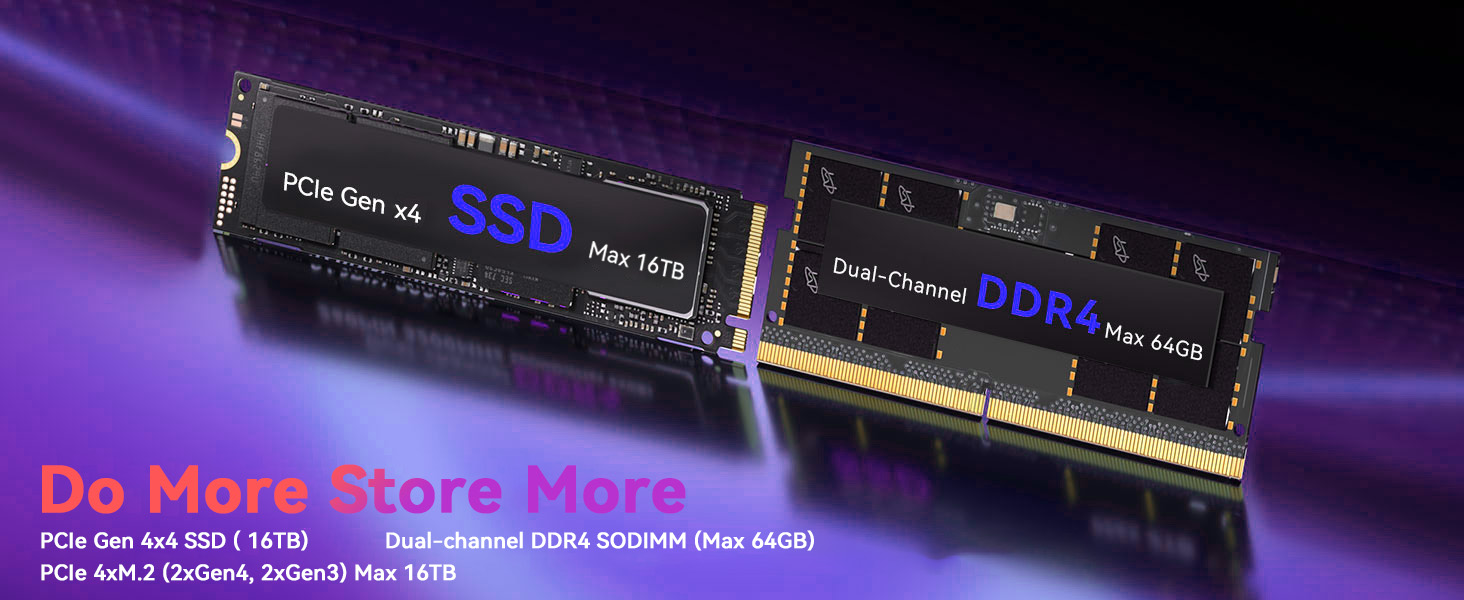

Memory & Storage

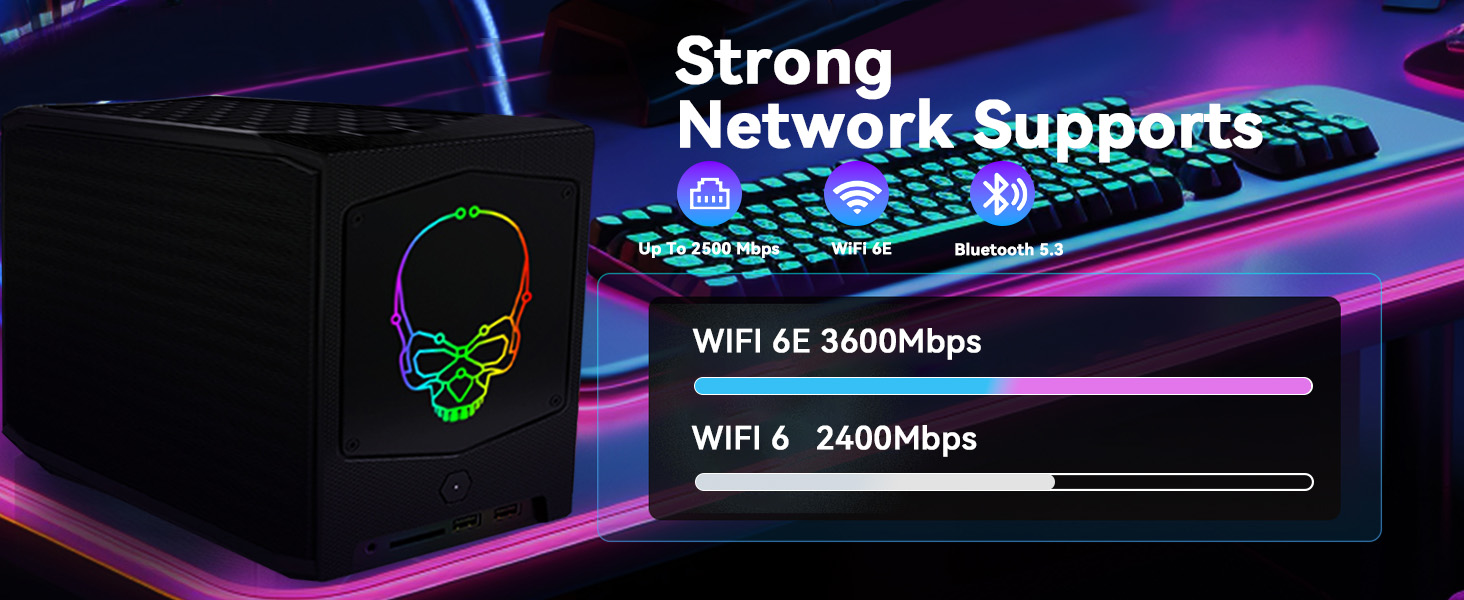

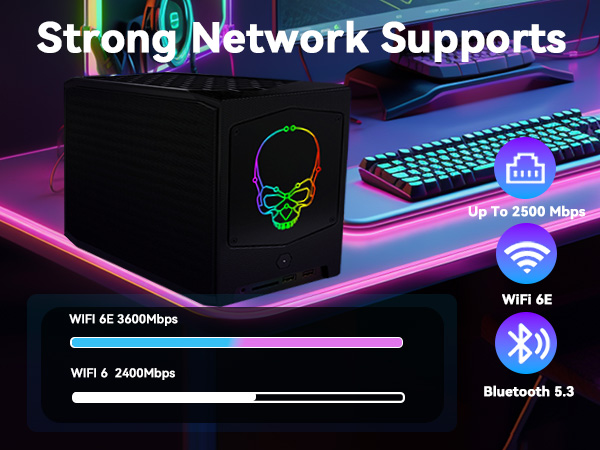

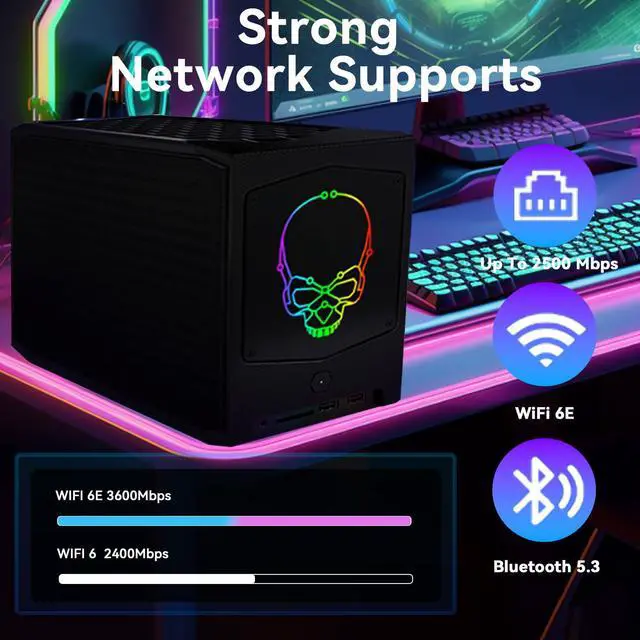

NETWORK

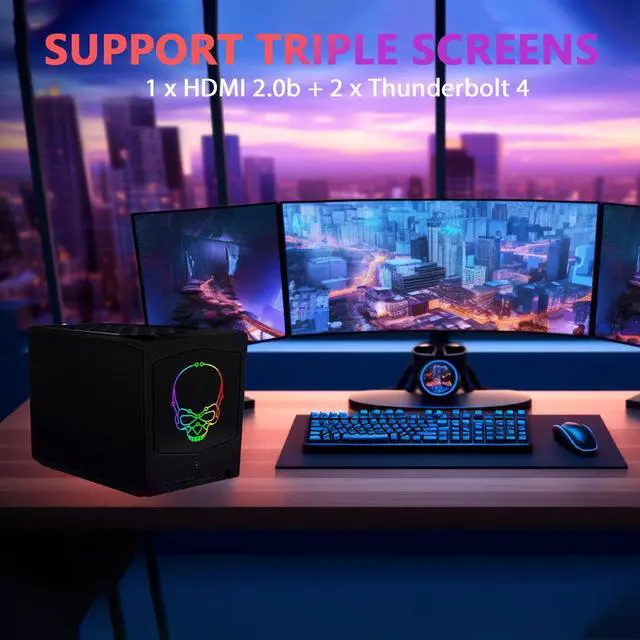

Triple 4K Display

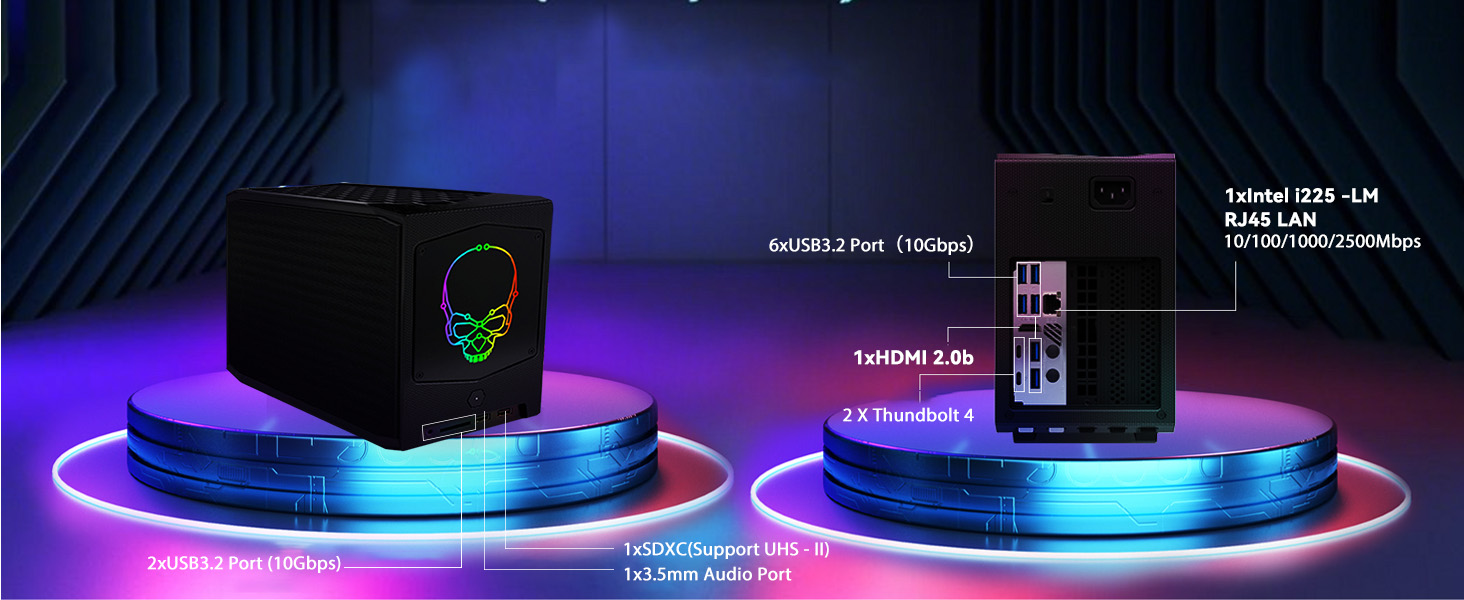

INTERFACES
BRE NUC mini Desktop PCs
BRE NUC NUC11BTMi7 i7-11700B Technical Specifications
| CPU | i7-11700B (4.9 GHz Turbo, 8 core, 16 thread, 24MB Cache, 65W) |
|---|---|
| Graphics | Intergrated UHD Graphics, 350 MHz – 1.45 GHz |
| Discrete Graphics Support | PCIe 4.0 X 16 slot up to 12” length for Discrete Graphics Card (not included) ( with 8 pin & 2x6+2-pin PCIe power connectors, up to 350W) |
| Memory | 32GB (Dual channel DDR4-3200 SODIMMs, 1.2V, up to 64GB, not included) |
| Storage | 1 TB SSD (4 x M.2 Slots) |
| Storage Expand | • 3 x M.2 key M slots: 2280 CPU-attached PCIe X4 Gen4 NVMe; • 2 x 2242/80 PCH-attached PCIe x4 Gen3 NVMe or SATA3 SSD, RAID-0 and RAID-1 capable; • Optane SSD and Optane Memory M10, H10 and H20 ready; • PCIe X4 Gen4 slot – Pre-installed air-duct may need to be removed for slot operation; • CPU-attached M.2 slot 42/80/110 PCIe X4 Gen 4, Optane SSD ready; • SDXC slot with UHS-II support |
| Network | • 2.5Gb (i225-LM); • Wi-Fi 6E AX210, 802.11ax 2x2 2.4Gbps 6GHz + BT 5.2, dual internal antennas |
| Video output | Triple 4K Displays: 1 x HDMI 2.0b; 2 x Thunderbolt 4 ports |
| Interface | • 2×USB3.1; • 6×USB3.1; • 2×Thunderbolt4; • 2×USB3.1; • 2×USB2.0; • 1×3.5mm front stereo headset jack; • 1×HDMI2.0b |
| Cooling system | 3 x 92mm Fans |
| OS Support | 11 Pre-installed; 11/10 Home/Pro; Compatible with various Linux distros |
| Power Adapter | 650W 80+ Gold internal power supply with geo-specific C13 AC cords |

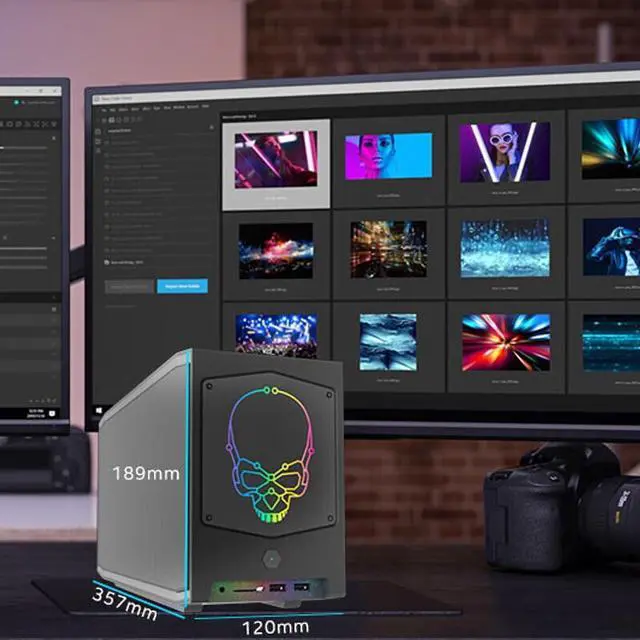

| Dimensions | 357 x 189 x 120 mm (~8L) |
| Finished | Metal inner frame with plastic outside, Kensington lock with panel security |
| Operating&Storage | 0 ? -- 35? ; -20 ? -- 60 ? |
| BRE NUC W~ARRANTY | 1 -Year product availability, 1 -Year limited W~arranty |
BRE NUC Mini Desktop PC Series
BRE NUC N7P
BRE NUC N7A
BRE NUC N6M
BRE NUC 11BTM i9
Compact Powerhouse for Every Task
Elite Performance for Gamers, Creators & Developers
Its Greatest Strength is its Versatility:
It handles almost every common task very well instead of excelling in one extreme area.
Engineered for value, efficiency, and practicality
Ultra-lower power energy efficient
Speed Meets Efficiency
Beast Canyon
High-performance
Discrete GPU Ready (PCIe4.0 x16 Slot 12")
BRE NUC
Driven by innovation and with quality as the core. It is committed to providing high-performance, energy-saving, compact mini computer host solutions for users around the world.
