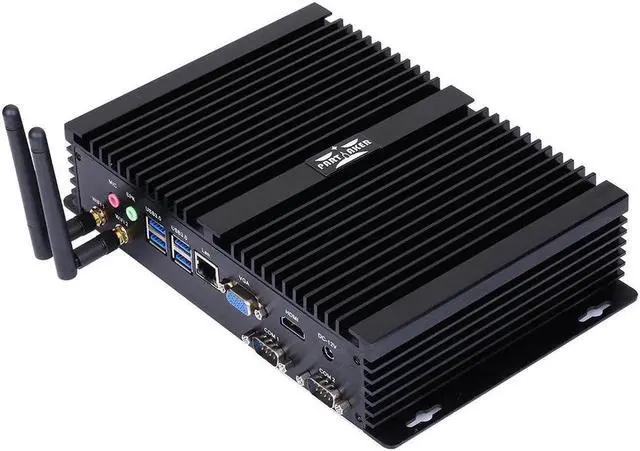

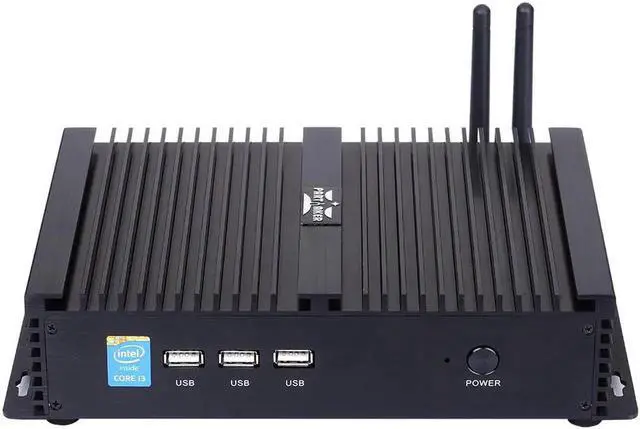

Fanless Industrial Computer, IPC, Mini PC, Intel Core i7 1255U, Windows 11 or Linux Ubuntu, VGA, HDMI, LAN, 2 x COM RS232, 3 x USB2.0, 4 x USB3.0, 8G RAM, 128G SSD
Limited time offer, ends 04/22 By CoreDepot
- CPU: Intel Core i7-1255U Processor (12M Cache, up to 4.70 GHz)
- Memory: 2 x SO DIMM DDR4-3200 (MAX. 64G RAM)
- Storage: 1 x mSata SSD, 1 x 2.5 inch SATA SSD/HDD, 1 x m.2 2280 NVME SSD
- I/O Port: DC, HDMI, VGA, LAN, 3 x USB 2.0, 4 x USB 3.0, MIC, SPK, 2 x COM RS232
- Support dual screen for simultaneous display or synchronous different display, hdmi 4096x2304@60Hz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
| CPU | Intel Core i7-1255U/i5 1235U/i5-1135G7/I7 1165G7/i7 10510U/i3 8145U/i5 10310U Processor |
| TDP | 12-28W |
| BOIS | AMI BIOS, ACPI supported |
| Chipset | Intel Tiger Lake/Comet Lake |
| Memory | 2 x SO-DIMM DDR4 Slot Support 8GB/16GB/32GB Dual Channel, 3200MHz,LPDDR4X 4267MHz |
| OS | Windows 7/Windows 8/Windows 10/Windows 11/Linux |
| Audio | ALC897 chip, 7.1 channel sound, Intel Lynx Point-LP HDA |

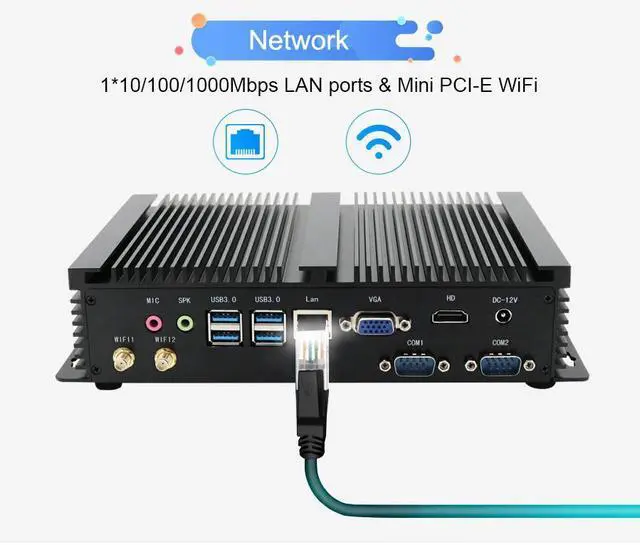

| Network | Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC |
| Video | Intel Iris Xe Graphics/Intel UHD Graphics |

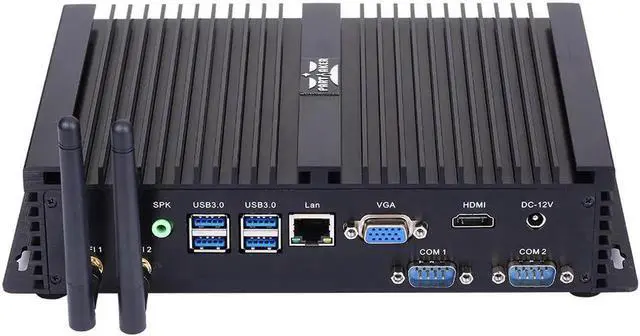

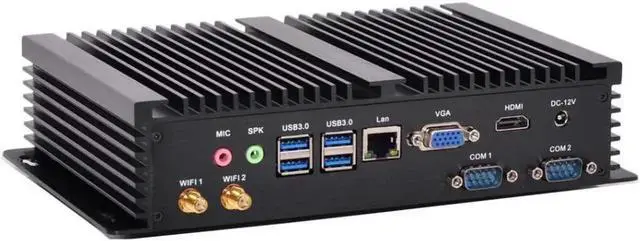

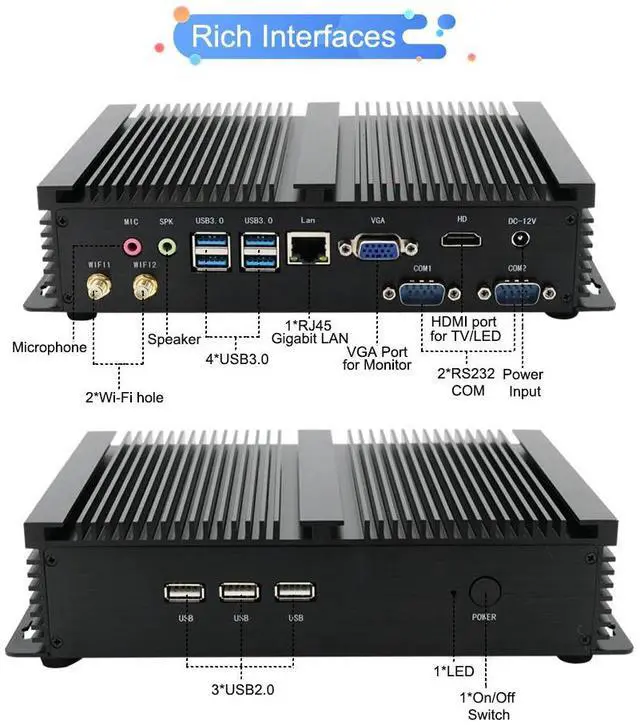

| I/O Ports | 1 x Switch,1 x 12V DC In,1 x LED,3 x USB2.0, 4 x USB3.0,1 x VGA, 1 x HDMI,1 x RJ45, 2 x RS232 COM, |
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s, 1 x M.2 slot for M.2 SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Module | 1 x mini PCIE-half port for Wi-Fi module,2 x inner RF cables and 2 x external antennas |
| Power | DC100-240V AC/50-60Hz, DC +12V~+19V, recommend 12V/5A |

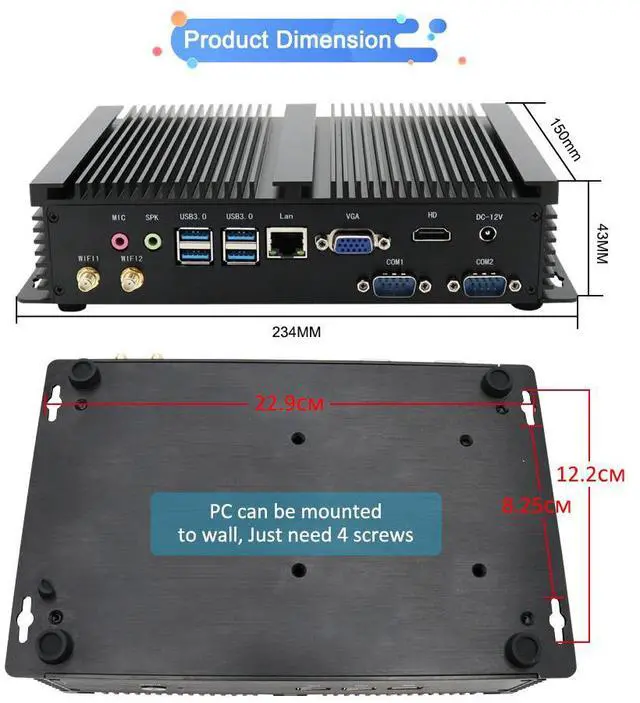

| Size | 234*150*43mm |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
Model Number: I3
Type: IPC type with mounting ears
CPU: Intel Core i7-1255U Processor(12M Cache, 4.7Ghz)
Graphics:Intel Iris Xe Graphics eligible
Color: Black
TDP: 15W
BOIS: AMI BIOS, ACPI supported
Memory: 2 x SO DIMM DDR4-3200 (MAX. 64G RAM)
Storage: 1 x mSata SSD, 1 x 2.5 inch SATA SSD/HDD, 1 x m.2 2280 NVME SSD
Audio: ALC892
WiFi: 802.11ac 2.4Ghz and 5Ghz
Chipset: Intel Alder Lake
OS: Windows 10/Windows 11/Linux
Network: Intel i219
I/O Port: DC, HDMI, VGA, LAN, 3 x USB 2.0, 4 x USB 3.0, MIC, SPK, 2 x COM RS232
Power: DC100-240V AC/50-60Hz, DC 12V7A
Physical Outline: 234 x 150 x 43mm
Weight: 2.5kgs
Packing List: 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Shell: Black color aluminum alloy;
Mounting: 4 Mounting holes on case
Cooling Mode: Fanless
Functions: 1).First-class temperature control ensures 24h/7 days without shutting down
2).12V green and environmentally friendly, only 15W to 25W power for daily use
3).Support restore AC power loss/WOL/LAN PXE boot
4).Support dual screen for simultaneous display or synchronous different display, hdmi 4096x2304@60Hz
System Default Option: Windows 11 pro in English
For other options, Linux or other OS,other system language, Do leave us message on the order, thank you.
