Fanless Industrial PC, Industrial Computer, J6412, PA-1226, Windows 11 or Linux Ubuntu, 3 x i226-V 2.5G LAN, DP, HDMI, 6 x COM, 6 x USB, GPIO, 8GB DDR4 128GB SSD
Limited time offer, ends 04/22 By CoreDepot
- Powerful Quad-Core CPU: J6412, 2.0-2.6GHz, 10W TDP.
- Dual Display & Rich I/O: DP, HD-MI, 4x COM, 4x USB, 3x 2.5G LAN.
- Flexible Storage: M.2 SATA & 2.5" SSD/HDD support.
- Rugged Aluminum Design: Compact & durable for industrial use.
- Certified & Advanced Features: CE, CCC, FCC, ROHS, auto power-on, Wake-on-LAN.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: Partaker PA-1226 Industrial PC
Processor: Intel Celeron J6412(Quad core quad threading, 2.0GH z, Max to 2.6GH z, TDP: 10W)
OS: Support Win10/Win11/Linux
Memory: 1 x DDR4 3200MT/s SODIMM, Max 32 GB
BIOS: AMI UEFI BIOS
Display Chip: Intel HD Graphics
Display Port: 1 x DP, 1 x HD-MI (Support synchronous and asynchronous dual display)
Storage: Support 1 x M. 2 slot (SATA protocol), 1 x 2.5 SSD/HDD
Expansion: Support 1 x M. 2 M-key slot 2280, SATA protocol
1 x M. 2 B-key slot 3042/3052 (for 4G/5G module) with SIM slot;
1 x MINI PCIE slot (for WIFI&BT)

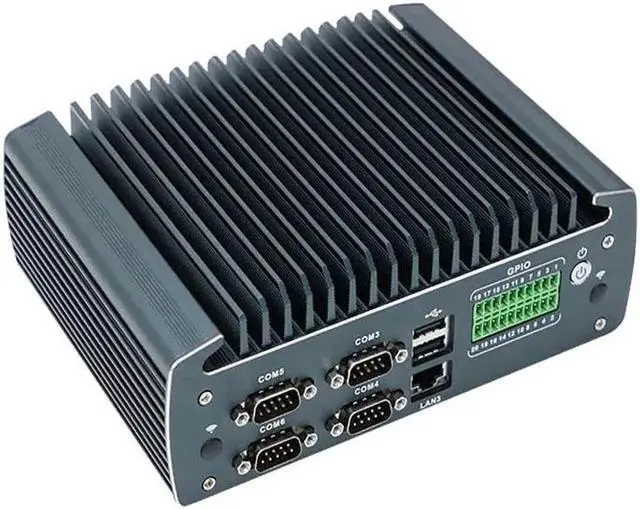

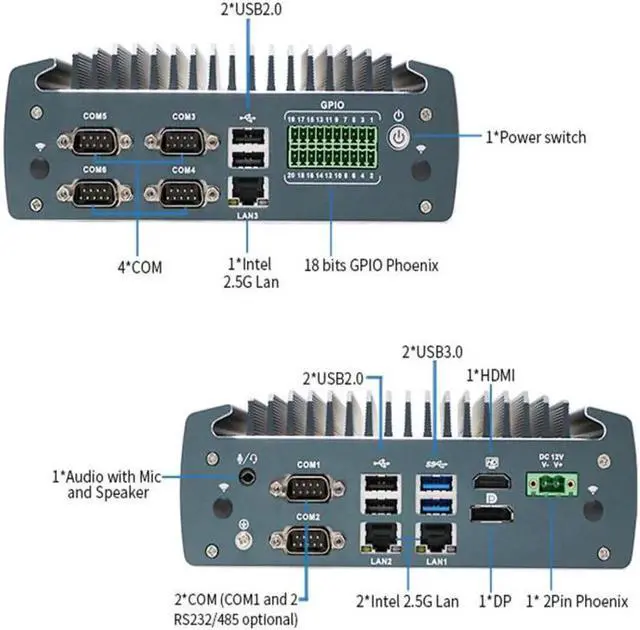

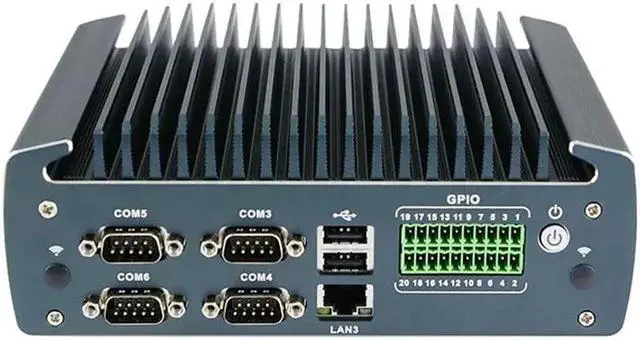

I/O: 4 x COM, 2 x USB 2.0, 1 x Intel 2.5G Lan, 18 bits GPIO Phoenix, 1 x Power switch, 2 x COM (COM1 and 2, RS232/485 optional)

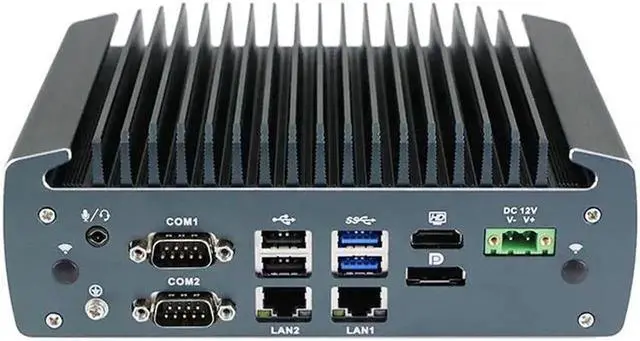

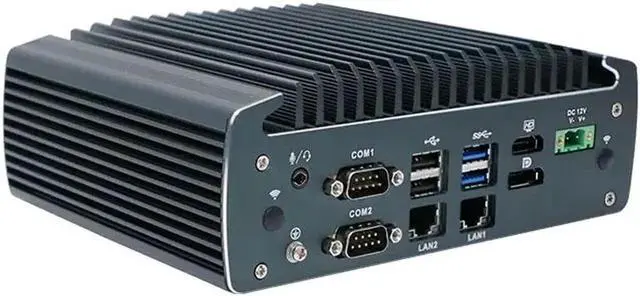

2 x USB 2.0, 2 x USB 3.0, 2 x Intel 2.5G Lan, 1 x HD-MI, 1 x DP, 1 x 2Pin Phoenix, 1 x Audio with Mic and Speaker
Network: 3 x Intel i226-V 2.5G Lan
Input Voltage: Support DC 12V Input(DC 9-36V Optional )
Other Function: Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0255 level) (Standard version doesnt set these function)
Color: Dark grey (Color can be customized)
Material: High-quality all aluminum, surface hard anodized
Dimension: 186 x 140 x 66 mm
Work Temp: 0~ +50 (Commercial HDD) -20~ +60 (Industrial SSD), Surface air flow
Work Humidity: 5%~95% non-condensing
Application: Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.
