4 mSATA SSD PCI-e Hybrid Controller Card RAID0 RAID1 RAID10 Marvell HyperDuo SATAIII PCIe flash solutions accelerates databases

Certification:NONE
Origin:CN(Origin)
Package:No
Model Number:4 PORTS MSATA RAID TO PCIE
Type:Add On Cards
Interface Type:PCI Express
is_customized:Yes

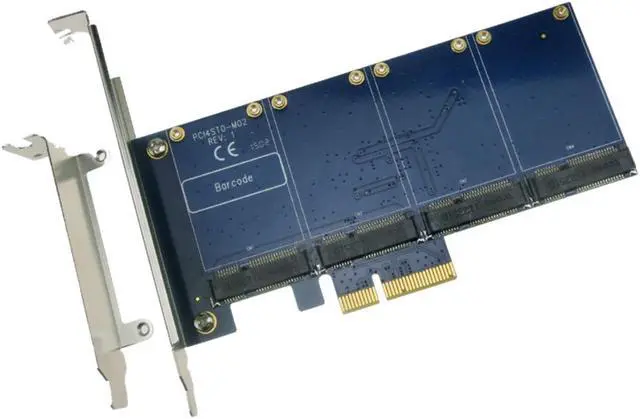

This 4 mSATA PCIe SSD is a PCIe add-on card that supports connecting as many as four mSATA cards into Desktop PC which with PCIe x4/x8/x16 slot . It supports SATA 3.0 with a maximum data rate of 6 Gbps. It can be used as an OS drive to significantly improve the boot time and overall system performance. This is a great solution for creating your own SSD storage by taking advantage of the commercially available mSATA SSD cards.
HyperDuo enables two modes: Safe Mode and Capacity Mode. Safe Mode provides optimal data protection by mirroring data from the SSD to the hard disk for maximum resiliency.
Capacity Mode augments SSD and HDD capacity for the most cost-effective configuration. Both modes automatically identify LBA ranges across both the SSD and HDD so that the user experience is exactly the same. By allowing consumers to view the same single drive
volume (eg. Data (D:) ) as they do today, HyperDuo requires no behavioral changes by consumers to maximize simplicity and eliminates user error.
Chipset: Marvell 88SE9230
Compliant with PCI-Express Specification V2.0 and Backward Compatible with PCI-Express 1.x
Compliant with Serial ATA Specification 3.0
PCI-Express x4 Interface(actual x2 speed) is Compatible with PCI-Express x4, x8, and x16 slots
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot Plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS Based Switching or Command Based Switching
Support RAID function: RAID0, RAID1,RAID1+0
HyperDuo Mode Supports Safe Mode (Mirrored Protection), and Capacity Mode (Cost-Optimized)
HyperDuo technology
Support both full and low Profile
support system startup
OS Support:
WindowsXP/Vista/7/8/Server 2008 R2 / 8,Linux 2.6.x and above
Package Content
4 mSATA PCI-e Card x1
Low Profile Bracket    x1
Driver CD  x1
User Manual x1
Notice:The price excludes the mSATA SSD shown on the picture.
