YEPLOOK Type 3 24Pin ATX, 14+10Pin to 24Pin Motherboard Main Power Cable for Corsair AX-i, HX-i, HX Gold, RM Gold Type 3 Modular Powers PSUs, 18AWG Sleeved Net 60CM / 23.62 inch / 1.97ft.

YEPLOOK 14+10Pin to 24Pin ATX Main Motherboard Power Cable for Corsair Type 3 Modular Powers, Only for Corsair AX-i, HX-i, HX Gold, RM Type 3 Modular Powers PSUs, 18AWG Sleeved Net 60CM / 23.62 inch / 1.97 ft.

*YEPLOOK Store Purchase Notes:


1. All images only for reference. For real photos, please ask fromour technical team.

2. The empty hole on 24Pin, which is normal default pinout design. Not quality defect.

3. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK.

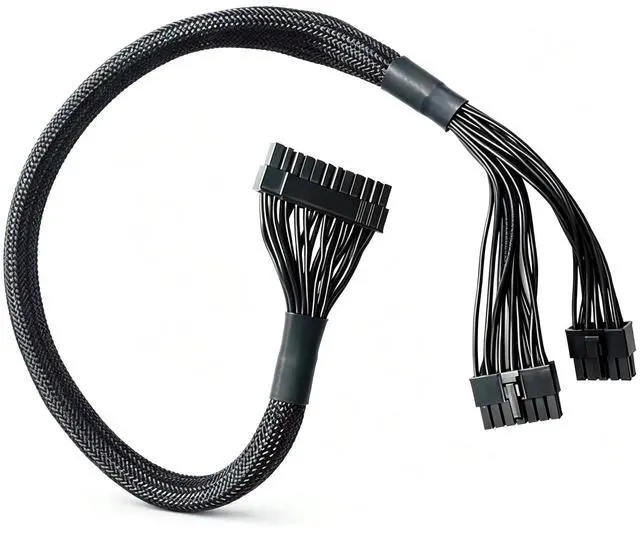

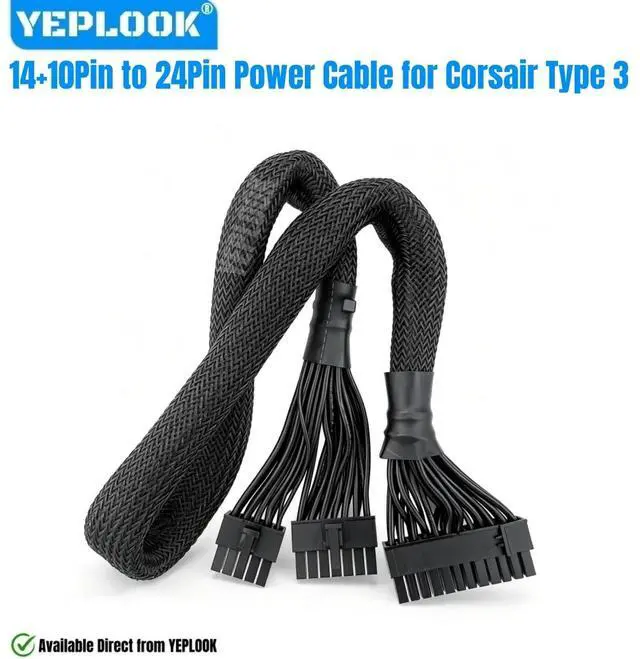

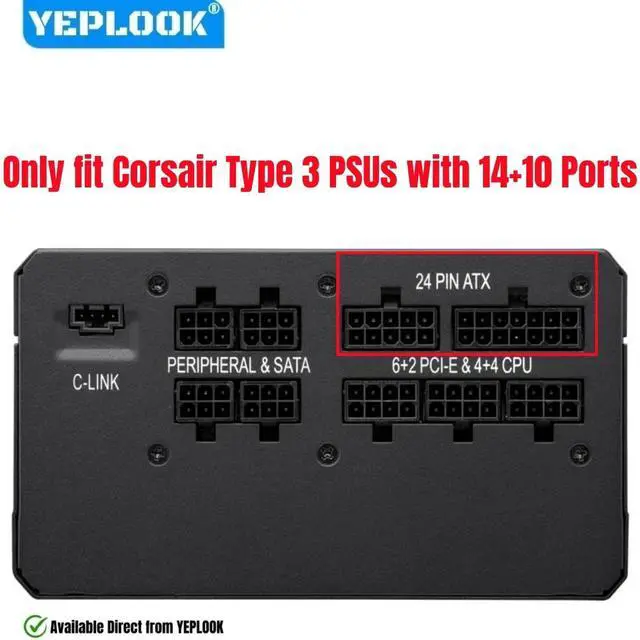

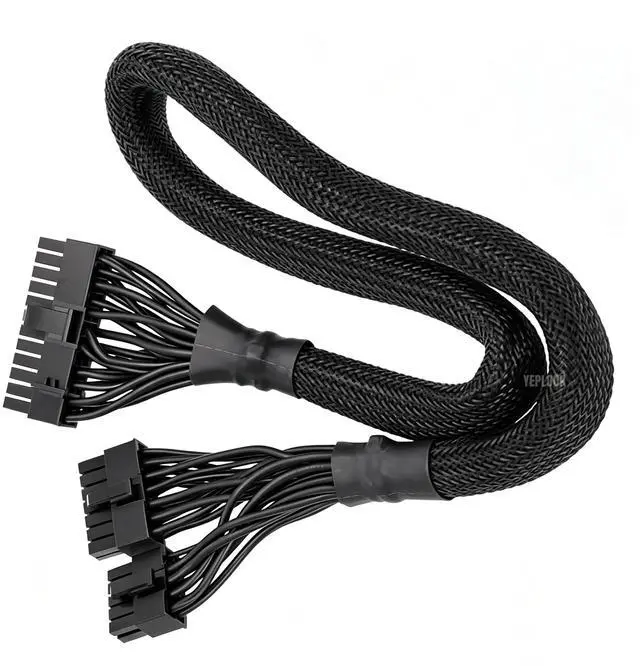

This 14+10Pin to 24Pin (20+4) ATX Main Motherbord Power Cable is fully Compatible with Corsair AX1200 & Type 3
Modular Powers below:

For Corsair AX1200 Gold.
For Corsair AX-i: AX1500i, AX1200i, AX860i, AX760i.
For Corsair HX-i: HX1200i, HX1000i, HX850i, HX750i, HX650i, HX550i (model number in blue color)
For Corsair HX Gold: HX1050, HX850, HX750, HX650.
For Corsair RM: RM1000, RM850, RM750, RM650, RM550, RM450 (model number in yellow color)

If your modular power is not listed above, please check compatibility with us to ensure proper installation and operation. Mix use cables may cause damage.

Not for Corsair Type 1 AX860 Platinum, AX760 Platinum.
Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.
Not for Corsair Type 4 Modular Powers.
Not for Corsair Type 4 RM GOLD 2021 Version. (model number in white color)
Not for Corsair Type 4 HX Platinum. Not for HX1200/HX1000/HX850/HX750 Platinum.
Not for Corsair Type 4 HX-i 2022 Verison. (model number in white color)
Not for Corsair Type 4 RM-i/RM-x/RM-e/SF Series Modular Powers.
Not for Corsair Type 5 modular powers. Not for Corsair RM850x SHIFT/SF850/SF1000.
Not for modular powers of other brands and models.

Description

Brand: YEPLOOK
Ports: 14+10Pin to 24Pin 20+4Pin (for Corsair Type 3), Not 18+10Pin (Not for Corsair Type 4)
Cable Length: about 60CM / 23.62 inch / 1.97 ft.
Cable Gauge: 18AWG standard tinned copper wire combined with high-quality nylon safety braided mesh, which features many tiny ventilation holes.
Package List: 1x 14+10Pin to 24Pin ATX Sleeved Net Main Power Cable for Corsair Type 3 Modular Powers.

Advantages:

1. 18AWG Tinned copper wire can prevent insulation rubber from sticky.

2. Soft sleeved cables are wieldy, have a greater flexibility allowing tighter folding and management.

3. Flexible & durable to prevent corrosion and provide a long lifespan.

How to Connect?

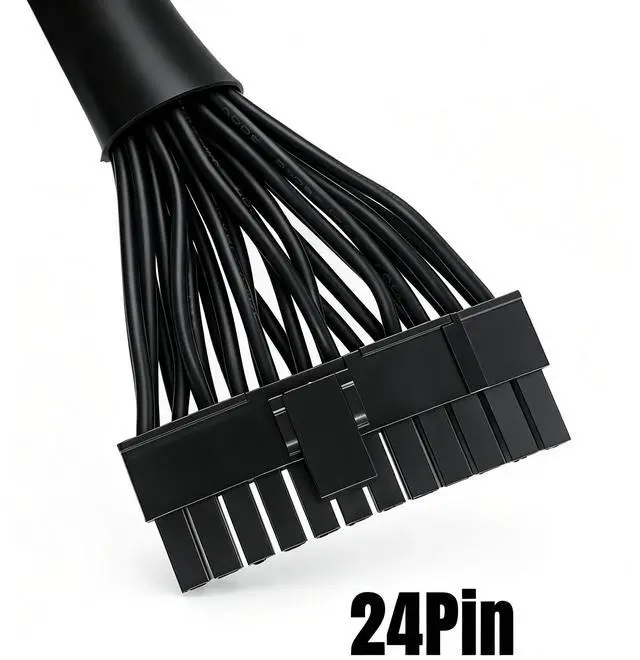

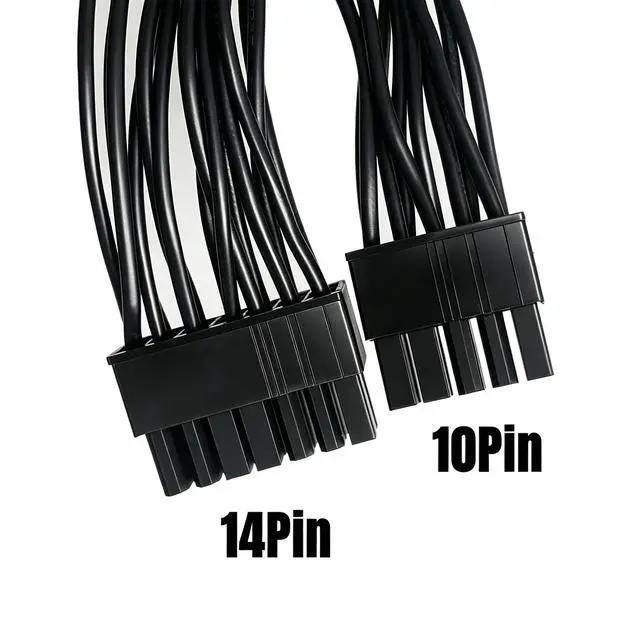

14+10Pin connector plug into modular power side. ATX 24Pin connector plug into motherboard side.
