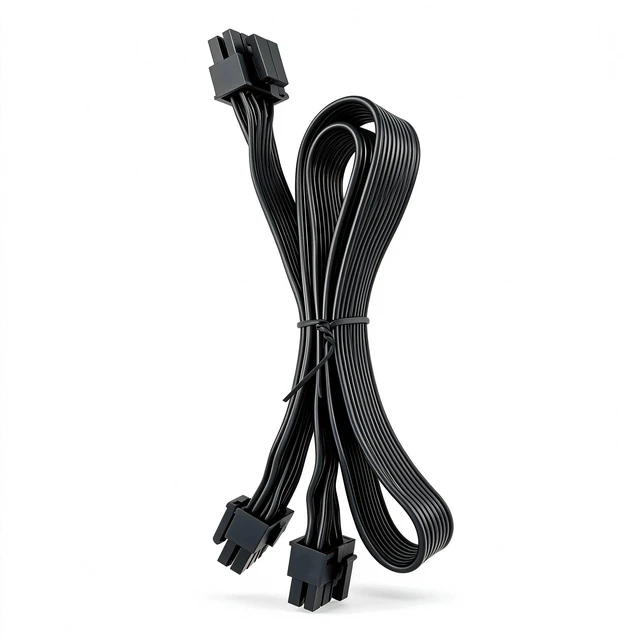

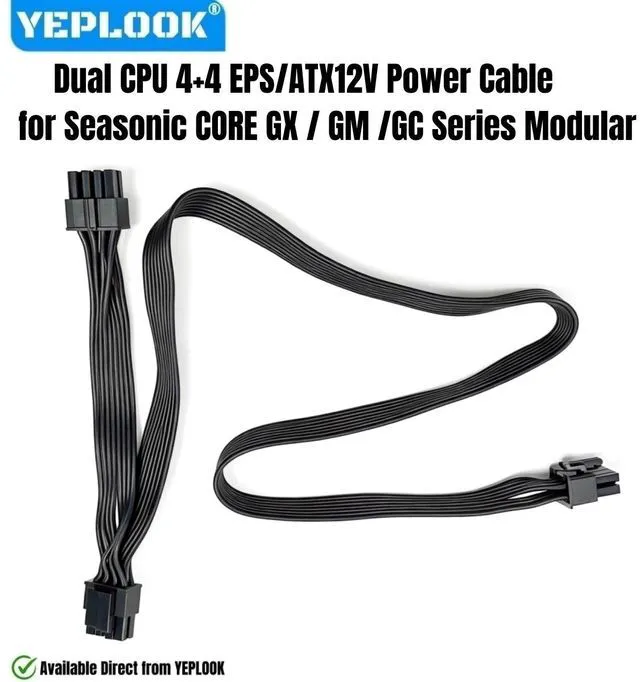

YEPLOOK Dual CPU 8-PIN (4+4) EPS12V ATX12V Power Cable Compatble with Seasonic CORE GX/GC/GM 650W, 550W, 500W All Series Modular Powers

YEPLOOK Dual CPU 8-PIN (4+4) EPS12V ATX12V Power Cable Compatble with Seasonic CORE GX/GC/GM 650W, 550W, 500W All Series Modular Powers, 18AWG Tinned Copper Wire

Description

Interface: PSU 8Pin to CPU 2x 8Pin (4+4)
Total length: about 70cm / 27.56 inch / 2.3 ft. (Ideal length to keep case tidy).
Features: made of 18AWG standard sturdy tinned copper wire with solid connectors. Flexible flat cable are easy to bend with good cable management.
Package List: 1x Dual CPU 4+4 Power Cable for Seasonic CORE GC/GM/GX All Series Modular Powers. G64

This Dual CPU Power Cable is Compatible with Seasonic CORE All Series Modular Powers Below:

Compatible with Seasonic CORE GC Series 80+
Gold Semi-Modular Powers:
Model: CORE GC-650, SSR-650LC
Model: CORE GC-550, SSR-550LC
Model: CORE GC-500, SSR-500LC

Compatible with Seasonic CORE GM Series 80+
Gold Semi-Modular Powers:
Model: CORE GM-650, SSR-650LM
Model: CORE GM-550, SSR-550LM
Model: CORE GM-500, SSR-500LM

Compatible with Seasonic CORE GX Series 80+
Gold Full-Modular Powers:
Model: CORE GX-650, SSR-650LX
Model: CORE GX-550, SSR-550LX
Model: CORE GX-500, SSR-500LX

Not Compatible with modulars of other brands and models. DO NOT mix use power cables between different brands and models. It may cause damage. Please check compatibility with us to ensure proper installation and operation.

Not Compatible with Seasonic Old Versions of
Modular Powers Below:
Not Compatible with Seasonic X Series: SS-650KM, SS-750KM, SS-560KM, SS-660KM, SS-760KM, SS-850KM, SS-1050XM, SS-1250XM.
Not Compatible with Seasonic P Series: SS-1000XP, SS-860XP.
Not Compatible with Seasonic FL Series: SS-400FL, SS-460FL.

Installation

PSU 8Pin plug into power supply side. CPU 8Pin (4+4) plug into motherboard side. CPU 4+4Pin used as 8Pin or 4Pin by sliding on/off the 4Pin.

1. For motherboard requires a 4pin ATX 12V (CPU) connector, please detach a 4pin connector.

2. For motherboard requires a 8pin EPS connector, please use the 4+4pin connector together.
