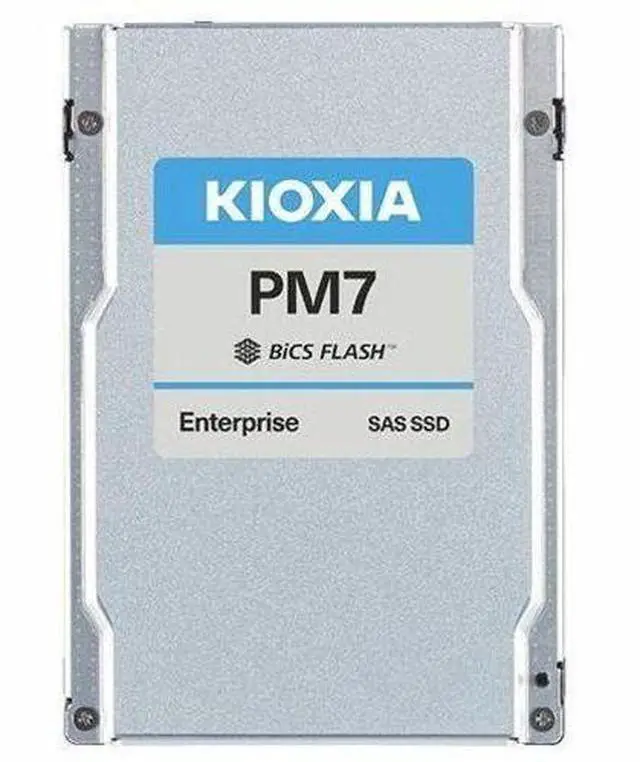

KIOXIA PM7-V Series KPM7XVUG12T8 12.8TB Enterprise 2.5" SAS Mixed Use SSD KPM7XVUG12T8

Basic

Specifications

Capacity: 12, 800GB
Form Factor: 2.5 -inch, 15mm thickness
lnterface: SAS-4
lnterface Speed: 22.5 Gbit/s, 12.0 Gbit/s, 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s
Flash Memory Type: BiCS FLASH TLC
Performance (in dual-port mode)
Sustained 128 KiB Sequential Read: 4, 200 MB/s
Sustained 128 KiB Sequential Write: 4, 100 MB/s
Sustained 4 KiB Random Read: 720K IOPS
Sustained 4 KiB Random Write: 330K IOPS
Power Requirements
Supply Voltage: 12 V +/- 10 %, 5 V +10 % / -7 %
Power Consumption (Ready): 5 W typ.
Reliability
MTTF: 2, 500, 000 hours
DWPD: 3
Dimensions
Thickness: 15.0 mm +0, - 0.5 mm
Width: 69.85 mm +/- 0.25 mm
Length: 100.45 mm Max
Weight: 130 g Max
Environmental
Temperature (Operating): 0 °C to 70 °C
Temperature (Non-operating): -40 °C to 80 °C
Humidity (Operating): 5 % to 95 % R. H.
Vibration (Operating): 21.27 m/s^2 { 2.17 Grms} (5 to 800 Hz)
Shock (Operating): 9.8 km/s^2 {1, 000 G} ( 0.5 ms)
