Main image of Mean Well HRP-75 Switching Power Supply 12V24V36V48V/3.3/5/7.5/15V 75W Single Output with PFC Function (HRP-75-12)

Alt view image 2 of 2 - Mean Well HRP-75 Switching Power Supply 12V24V36V48V/3.3/5/7.5/15V 75W Single Output with PFC Function (HRP-75-12)

Shop All Mean Well Products | Visit Changshacanboyidianzishangwu Store

Mean Well HRP-75 Switching Power Supply 12V24V36V48V/3.3/5/7.5/15V 75W Single Output with PFC Function (HRP-75-12)

Output Voltage: 12 VDC
Output Current: 6.30 A
Input Voltage: 85 VAC to 264 VAC
Input Frequency: 47 Hz to 63 Hz
Output Connector Type: Screw Terminal Block

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

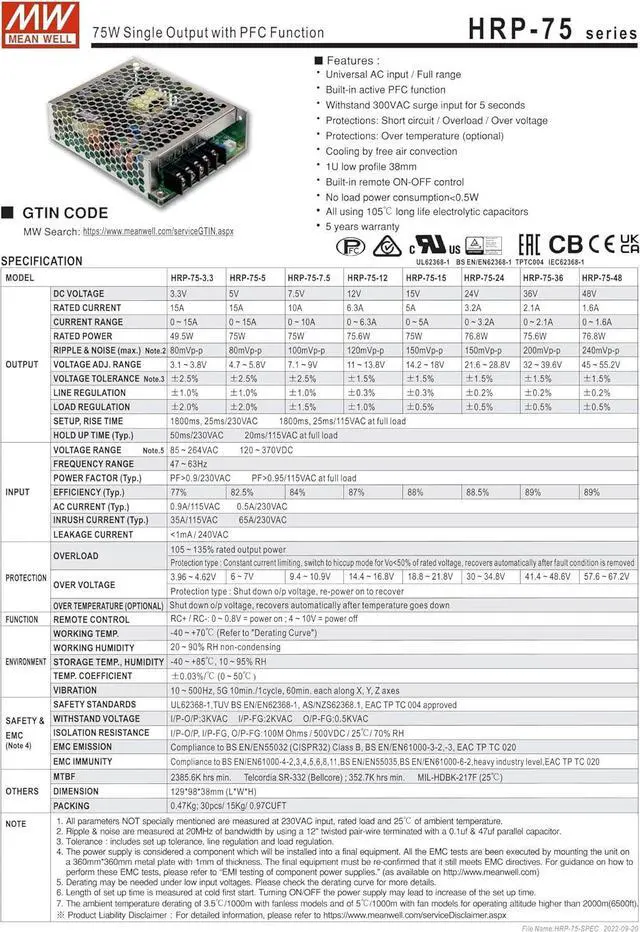

75 W Single Output with PFC Function 12 Volts @ 10 Amps Features: --Universal AC input / Full range--Built-in active PFC function--Protections: Short circuit / Overload / Over voltage--Protections: Over temperature (optional)--Built-in remote ON-OFF control--5 years warranty--Withstand 300VAC surge input for 5 seconds--Cooling by free air convection--1U low profile 38mm--No load power consumption<0.5W--All using 105°C long life electrolytic capacitors

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by changshacanboyidianzishangwu Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIC35DKM46947
