    Mean Well 120W AC/DC High-End Ultra Slim Industrial DIN Rail Gaming Pc Power Supply Computer Power Supplies Amateur Radio 12V 10A (XDR-120-12 12V/10A/High-End Ultra Slim)

    • High efficiency up to 94% and no load power dissipation 0.9W~1W by R.C.
    • 600% transient peak current capability
    • Fanless design, cooling by free air convection
    • Over voltage category (OVC )
    • -40~+85°C wide range operation temperature(>+60C derating)
    +
    +
    Overview
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    NEW, MEAN WELL Power Supply.

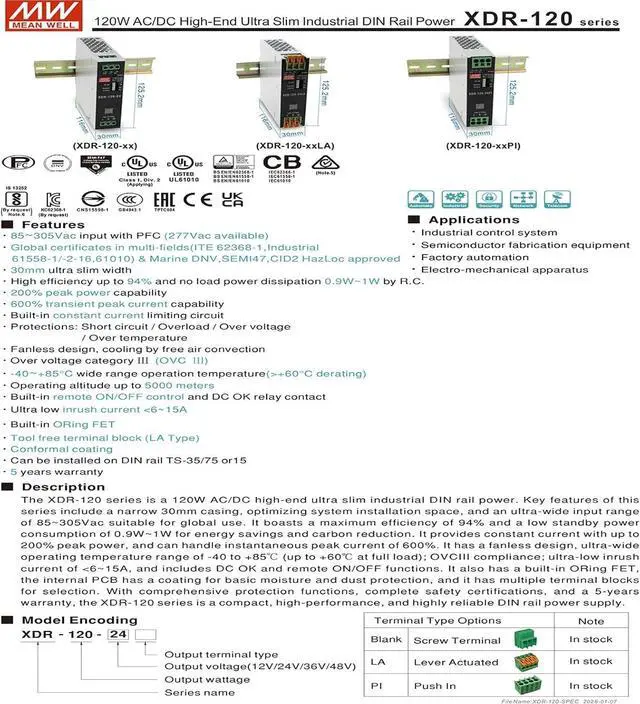

    The XDR-120 series is a 120W AC/DC high-end ultra slim industrial DIN rail power.
    Key features of this series include a narrow 30mm casing, optimizing system installation space, and an ultra-wide input range of 85~305Vac suitable for global use.
    It boasts a maximum efficiency of 94% and a low standby power consumption of 0.9W~1W for energy savings and carbon reduction.

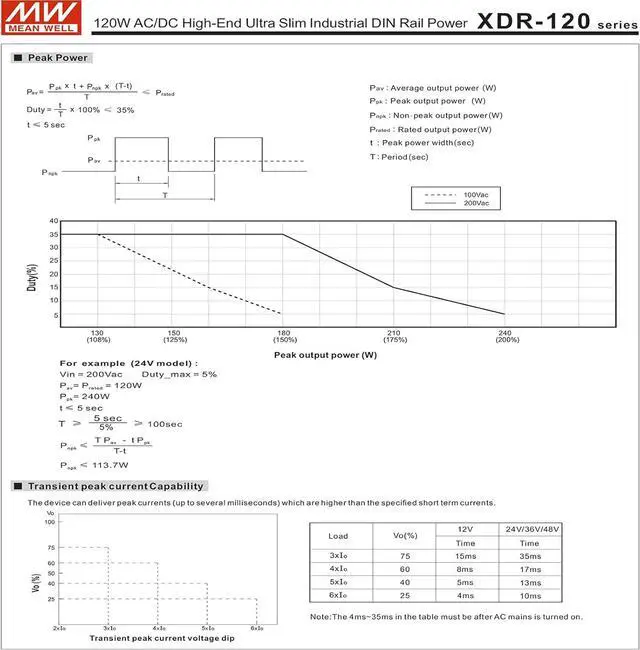

    It provides constant current with up to 200% peak power, and can handle instantaneous peak current of 600%.

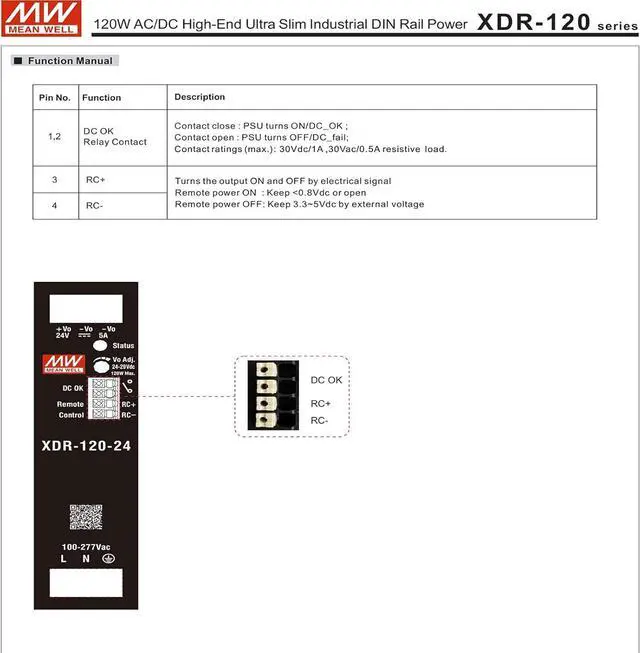

    It has a fanless design, ultra-wide operating temperature range of -40 to +85 (up to +60 at full load); OVCIII compliance; ultra-low inrush current of <6~15A, and includes DC OK and remote ON/OFF functions.
    It also has a built-in FET, the internal PCB has a coating for basic moisture and dust protection, and it has multiple terminal blocks for selection.
    With comprehensive protection functions, complete safety certifications, and a 5-years warranty, the XDR-120 series is a compact, high-performance, and highly reliable DIN rail power supply.
