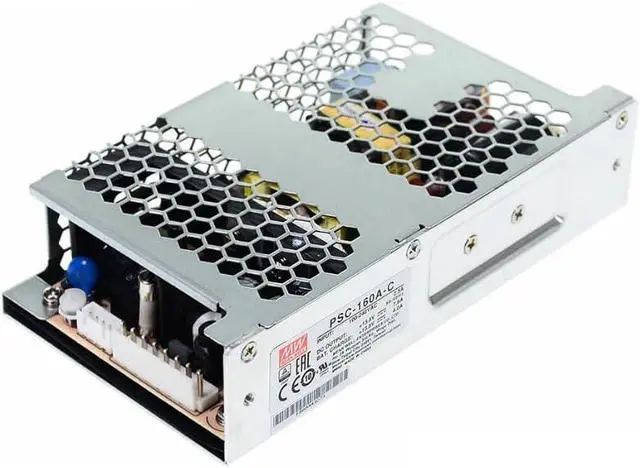

Mean Well PSC-160A-C PSC-160B-C 160W Single Output with Battery Charger(UPS Function) -C=Enclosed Type (PSC-160A-C)
- PSC-160 series is a 160W AC/DC security power supply, allowing the universal input range between90VAC and 264VAC and incorporating the built-in PFC function. In addition to the primary output, thereis a charger output, with the smaller rated current, that provides the backup power supply application thesecurity access systems require.
- PSC-160 delivers an efficiency up to 90%; it can operate with air convection under-20 through 70.This series is designed with thorough alarm features, including AC OK and battery low signaling;moreover, the relay contact is provided to facilitate users' system designs.PSC-160 is available in thePCB type or the enclosed type with L-Bracket and cover.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PSC-160 series is a 160W AC/DC security power supply, allowing the universal input range between90VAC and 264VAC and incorporating the built-in PFC function. In addition to the primary output, thereis a charger output, with the smaller rated current, that provides the backup power supply application thesecurity access systems require.
PSC-160 delivers an efficiency up to 90%; it can operate with air convection under-20 through 70.This series is designed with thorough alarm features, including AC OK and battery low signaling;moreover, the relay contact is provided to facilitate users' system designs.PSC-160 is available in thePCB type or the enclosed type with L-Bracket and cover.
PSC-160 delivers an efficiency up to 90%; it can operate with air convection under-20 through 70.This series is designed with thorough alarm features, including AC OK and battery low signaling;moreover, the relay contact is provided to facilitate users' system designs.PSC-160 is available in thePCB type or the enclosed type with L-Bracket and cover.
