1000W Power Supplies , EAGWELL 24V 41.7A DC Universal Regulated Switching Power Supply Driver for CCTV,Radio,Computer Project, 3D Printer,LED Driver

EAGWELL 1000W Power Supply Feature:
Switching power supply converts AC 110V to DC 24V 41.7A .
There is a switch, please select the appropriate voltage before use.
High-power transformers for electronic equipment, LED lighting, household appliances, radios, security cameras, computers, etc
Widely used in industrial automation, LED display, electronic equipment, communications and so on.
The input voltage range is wide and the output voltage is stable and accurate.
Intelligent device surge protection for short circuit protection, overload protection, over voltage protection.

Pay Attention:
Can not be used in motors, starting products that exceed the rated current

More Specification:
Color: Silver
Material: Metal
Input voltage: 110V ±1% (85-145V)
Output voltage: DC 24V
Output current: up to 41.7A
Difference range: ±5%
Power: 1000W Max (load power cannot exceed 80% of rated power)
Efficiency: >80%
Output adjustable voltage range: ± 5%
Frequency: 50-60Hz
Product weight: 2.998 lb
Leakage current: <1mA/120V
Temperature coefficient: ±0.03%/°C (050°C)
Start, rise, hold time: 200ms, 50ms, 20ms
Shock resistance: 10500Hz, 2G 10min, /1 cycle, duration 60 minutes, each axis
Protection: overload overvoltage and overcurrent short circuit protection
Pressure resistance Input and output: 1.5KvAC input and housing; 1.5KvAC output and housing; 0.5KvAC
Working temperature, humidity: -10 ° C ~ +60 ° C, 20% ~ 90% RH
Storage temperature, humidity: -20 ° C ~ +85 ° C, 10% ~ 95% RH

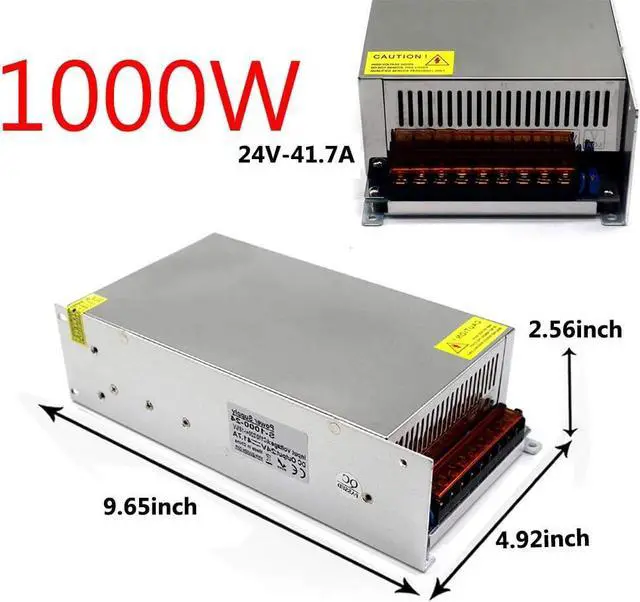

Product size: 9.646 x 4.921 x 2.559 inch

Package includes:
1 x 1000w switching power supply
